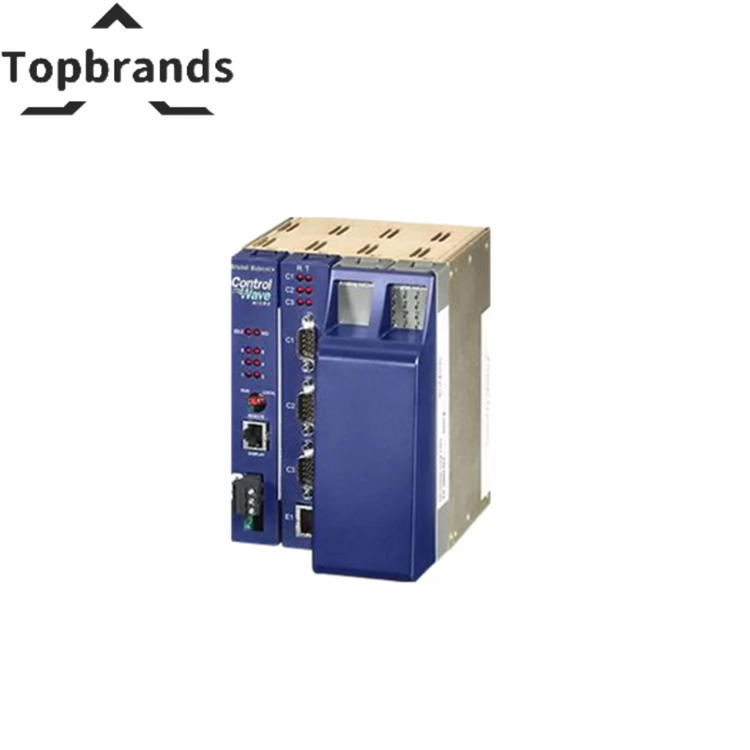

Emerson DeltaV 396563-18-0 ControlWave Micro Analog Input/Output Module
The Delta V 396563-18-0 is a analog input/output module for Delta V platforms. Compact Size: Ideal for panel or wall-mount installations. | Multiple Communication Ports: Equipped with two RS-232 and one RS-485 asynchronous serial communication ports, along with one 10/100 MB Ethernet port. | Surge Protection: Complies with C37.90-1978 and IEC 801-5 specifications for enhanced durability.. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| Emerson 396563-18-0 | is a versatile analog input/output module that enhances the ControlWave Micro system’s capability to monitor and control various analog field signals. |
|---|---|
| Exceptional Performance | Powered by an ARM microprocessor for high performance and low power consumption. |
| Compact Size | Ideal for panel or wall-mount installations. |
| Multiple Communication Ports | Equipped with two RS-232 and one RS-485 asynchronous serial communication ports, along with one 10/100 MB Ethernet port. |
| Surge Protection | Complies with C37.90-1978 and IEC 801-5 specifications for enhanced durability. |
| Analog Inputs | Six externally sourced, single-ended analog inputs configurable for 4 to 20 mA or 1 to 5 Vdc operation. |
| Analog Outputs | Two externally sourced (11 to 30 Vdc) analog outputs configurable for 4 to 20 mA or 1 to 5 Vdc operation. |
| Operating Temperature | -40 to 85 °C |
| Manufacturer | Delta V |
| Model / SKU | 396563-18-0 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Delta V 396563-18-0: Before You Buy
Key specs: Exceptional Performance: Powered by an ARM microprocessor for high performance and low power consumption.
Compact Size: Ideal for panel or wall-mount installations.
Surge Protection: Complies with C37.90-1978 and IEC 801-5 specifications for enhanced durability.
Operating Temperature: -40 to 85 °C.
Compare against your existing unit. Compatibility check within 4 hours. 100% genuine Delta V. 48-hour burn-in at 55C. Printed test report. 12-month warranty.
