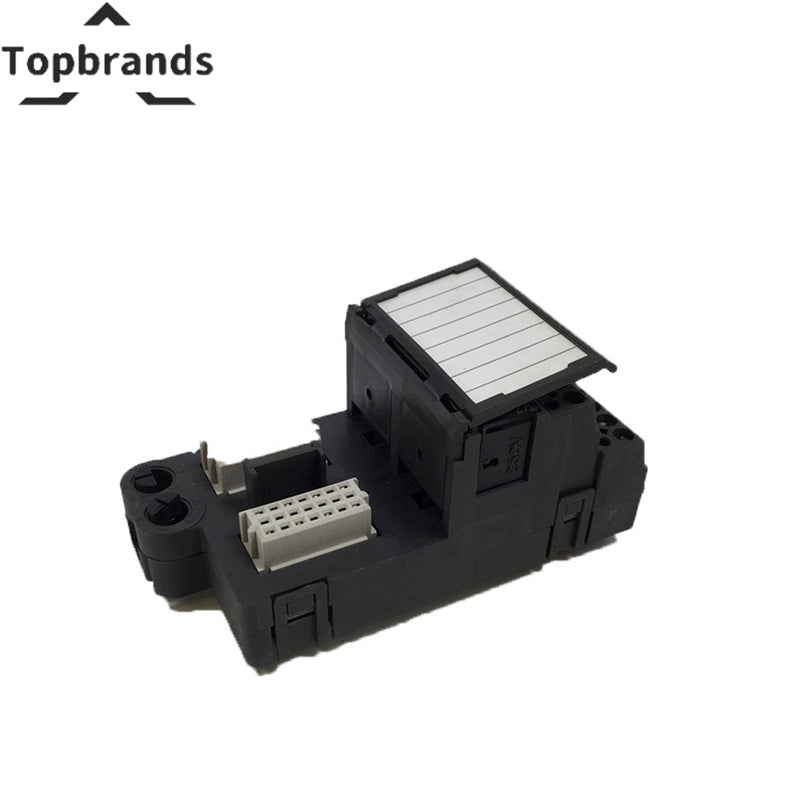

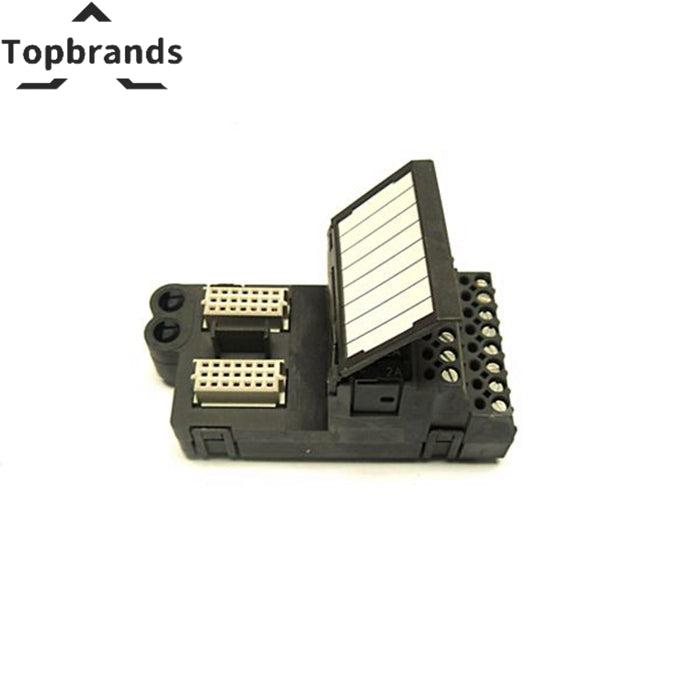

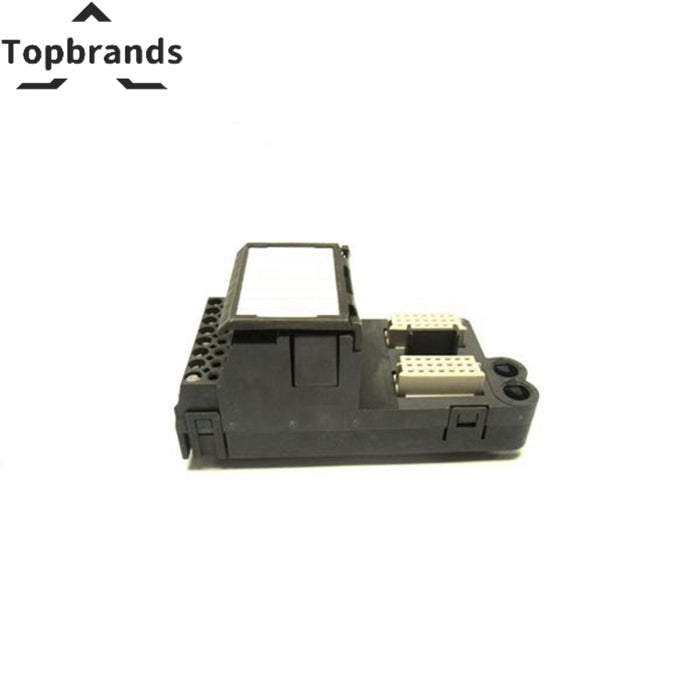

EMERSON DeltaV KJ2201X1-JA1 Redundant Terminal Block
The Delta V KJ2201X1-JA1 is a redundant terminal block for Delta V platforms. Shock: 10 g half-sine wave for 11 ms | Vibration: 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz | Airborne Contaminants: ISA-S71.04 –1985 Airborne Contaminants Class G3. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| Input Power | 30 VDC |
|---|---|
| Ambient Temperature | -40°C to +70°C |
| Shock | 10 g half-sine wave for 11 ms |
| Vibration | 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Airborne Contaminants | ISA-S71.04 –1985 Airborne Contaminants Class G3 |
| Relative Humidity | 5 to 95% non-condensing |
| Warning | This product has specific instructions for installation, removal, and operation in hazardous areas. Refer to document 12P2046, DeltaV™ Electronic Marshalling Digital Automation System (CHARM I/O Subsystem) Zone 2 Installation Instructions. Other installation instructions are available in the DeltaV™ S-Series and CHARMs Hardware Installation manual. |
| Removal and Insertion | This unit cannot be removed or inserted with system power energized. |
| Maintenance and Adjustment | This unit contains no user-serviceable parts and should not be disassembled for any reason. Calibration is not required. |
| Manufacturer | Delta V |
| Model / SKU | KJ2201X1-JA1 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Where the Delta V KJ2201X1-JA1 Fits in Your System
The EMERSON DeltaV KJ2201X1-JA1 Redundant Terminal Block serves as a redundant terminal block within the larger Delta V control architecture. Delta V is a recognized name in industrial automation, with products deployed in process control, manufacturing, and energy applications worldwide.
Key specifications for this unit:
Input Power: 30 VDC
Ambient Temperature: -40°C to +70°C
Shock: 10 g half-sine wave for 11 ms
Vibration: 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz
Industrial control modules are not consumer electronics — they are designed for 10-20 year service lives in environments with temperature extremes, vibration, electrical noise, and humidity. When a module eventually fails (as all electronics do), having a tested replacement on hand is the difference between a planned swap during a maintenance window and an emergency shutdown that costs thousands per hour.
Our standard process: functional test on a live rack, 48-hour burn-in, printed test report, anti-static packaging, DHL/FedEx/UPS shipping within 24 hours. 12-month comprehensive warranty included.
