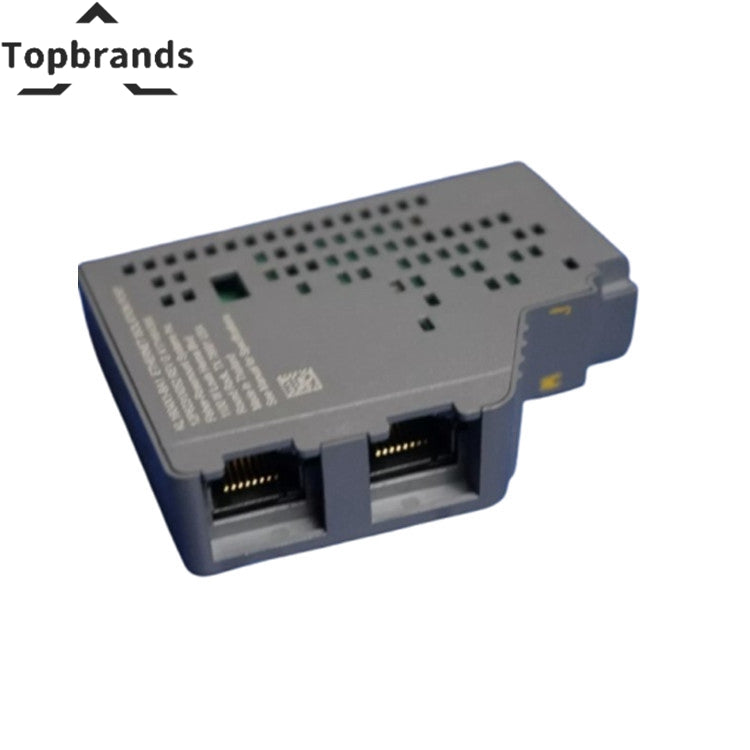

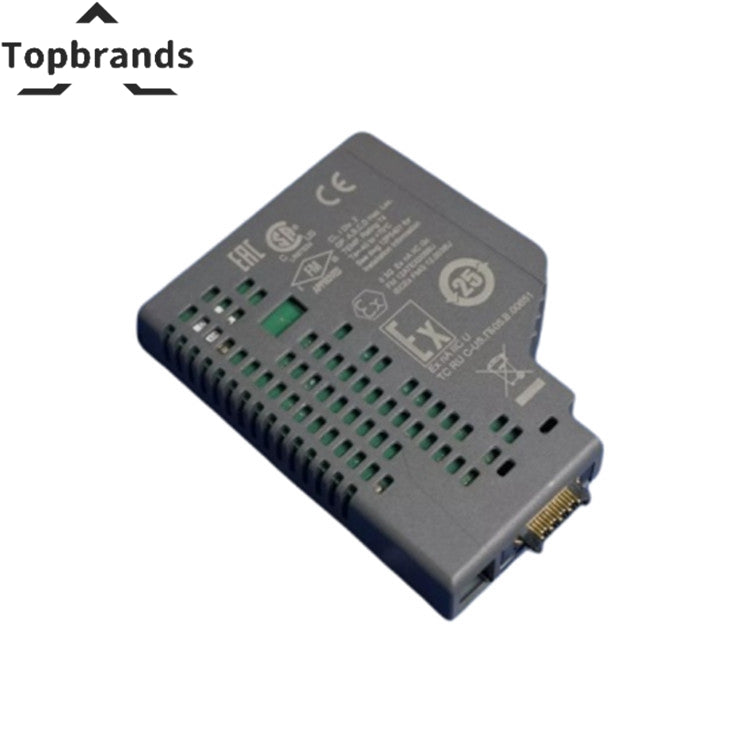

Emerson DeltaV KL1604X1-BA1 Safety Isolation Port (Copper)
The Delta V KL1604X1-BA1 is a safety isolation port (copper) for Delta V platforms. Shock: 10g ½ Sinewave for 11msec | Vibration: 1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz | Airborne Contaminants: ISA-S71.04 –1985 Airborne Contaminants Class G3. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| Input power | +5.0 VDC at 200 mA |
|---|---|
| Ambient Temperature | -40 °C to +70 °C |
| Shock | 10g ½ Sinewave for 11msec |
| Vibration | 1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz |
| Airborne Contaminants | ISA-S71.04 –1985 Airborne Contaminants Class G3 |
| Relative Humidity | 5 to 95% Non-Condensing |
| Note | Refer to the product label for serial number and location and date of manufacture. |
| Warning | This product has specific instructions for installation, removal, and operation in hazardous areas. Refer to document 12P5403 "DeltaV Electronic Marshalling Digital Automation System (CHARM I/O Subsystem) Zone 2 Installation Instructions". Other installation instructions are available in the " DeltaV S-series and CHARMs Hardware Installation" manual. |
| Removal and Insertion | This unit cannot be removed or inserted with system power energized unless the area is known to be non-hazardous. |
| Maintenance and Adjustment | This unit contains no user serviceable parts and should not be disassembled for any reason. Calibration is not required. |
| Manufacturer | Delta V |
| Model / SKU | KL1604X1-BA1 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Safety Modules — Provenance Is Everything
The Delta V KL1604X1-BA1 is a safety-rated component. In a safety loop, the worst failure mode is silent — the module fails but does not announce it, and when a demand occurs, it does not act. This is why counterfeit or unverified modules have no place in safety systems. Every unit we sell is 100% genuine Delta V with chain-of-custody documentation and Certificate of Conformance. Functional verification on a live test system before shipping.
12-month warranty. Advance replacement available for critical safety applications. Ships within 24 hours.
Compatible Parts — Same System
These modules share the same system family as the KL1604X1-BA1. Commonly ordered together for complete rack builds or spare parts kits.
