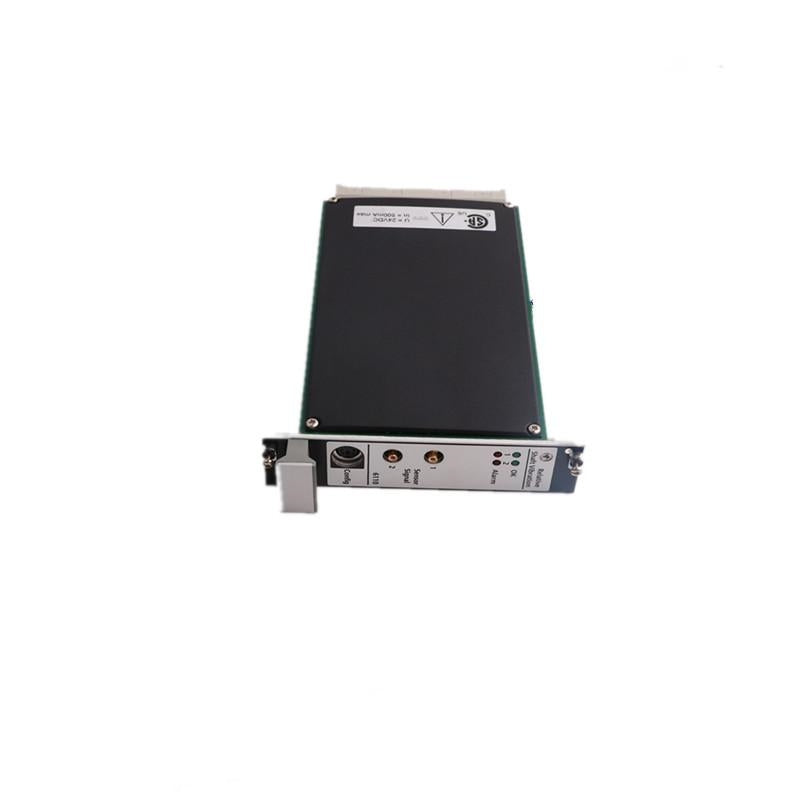

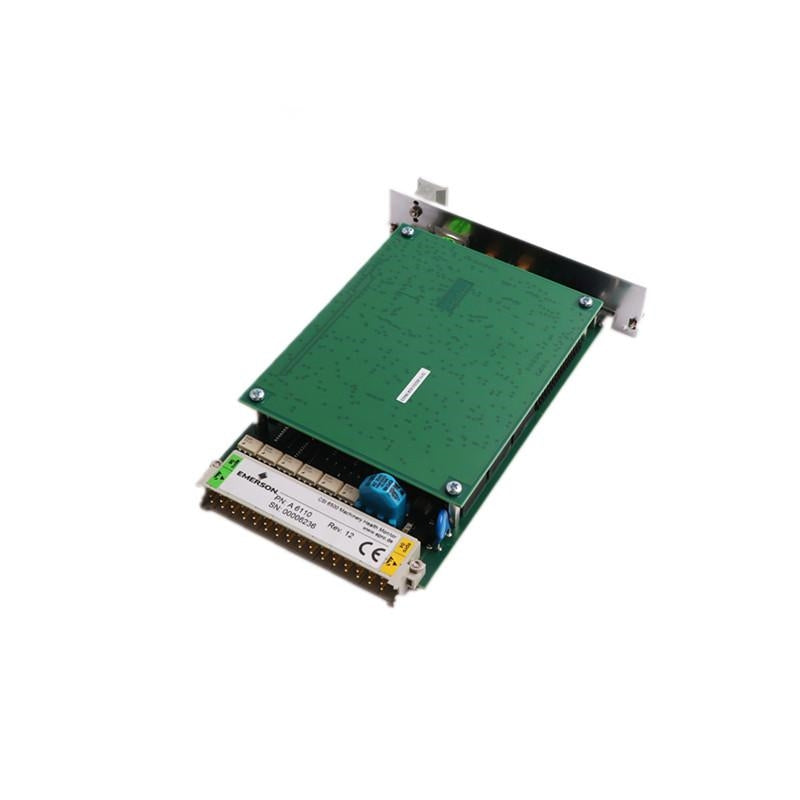

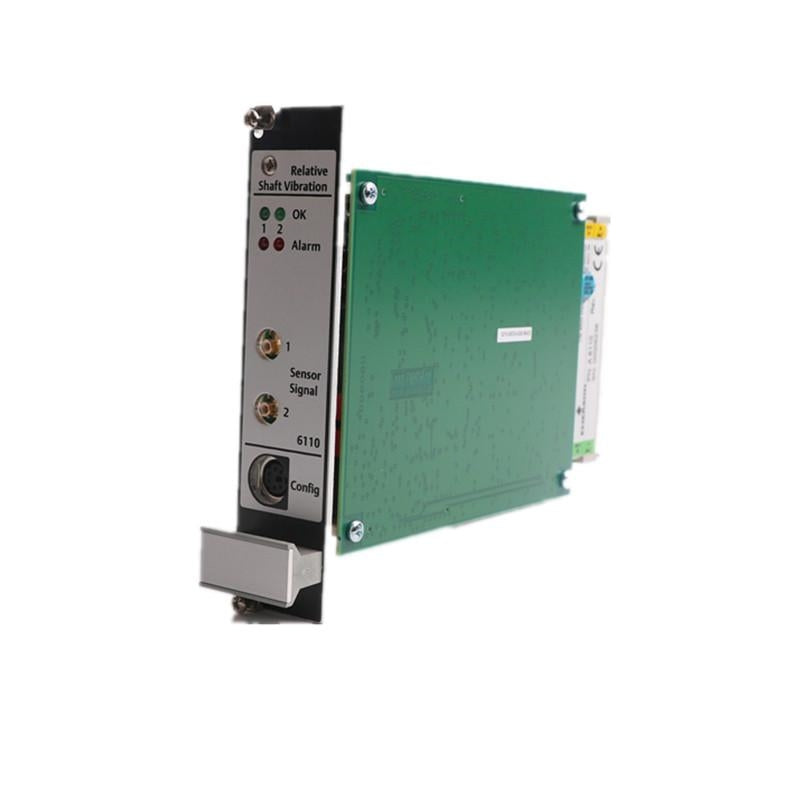

Emerson EPRO A6110 Shaft Relative Vibration Monitor 100% New
The EPRO A6110 is a shaft relative vibration monitor for EPRO industrial automation platforms. Type of Inputs: Eddy current, differential | Emerson Sensor Inputs: Part numbers: 6422, 6423, 6424, 6425 | Isolation: Galvanically separated from power supply. Factory-sealed, tested on live rack with 48-hour burn-in. 12-month warranty. Ships within 24 hours from Shenzhen.
Technical Specifications
| Shaft Relative Vibration Monitor | is designed for extremely high reliability for the plant’s most critical rotating machinery. This 1-slot monitor is used together with other AMS 6500 monitors to build a complete API 670 machinery protection monitor. Applications include steam, gas, compressors, and hydro turbo machinery. |
|---|---|
| Number of Inputs | Two, independent or combined monitoring modes |
| Type of Inputs | Eddy current, differential |
| Emerson Sensor Inputs | Part numbers: 6422, 6423, 6424, 6425 |
| Isolation | Galvanically separated from power supply |
| Input Resistance | >100 kΩ |
| Input Voltage Range | 0 to -22 VDC |
| Range | Continuously adjustable with the configuration software |
| Smallest Range | 0 - 400 mV |
| Largest Range | 0 - 8000 mV |
| Voltage | 0 - 8000 mV |
| Features | Separate buffered sensor supply, galvanically separated from all system voltages and system supply voltages, open and short circuit proof |
| Nominal Voltage | -26.7 V |
| Available Current | Nominal 20 mA, maximum 35 mA |
| Green LEDs | Two LEDs, indicating channel OK separately for each channel |
| Red LEDs | Two LEDs, indicating alert and danger separately for each channel |
| Manufacturer | EPRO |
| Model / SKU | A6110 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Buying a >100 kΩ A6110: What to Look For
Ordering industrial spare parts is not like shopping on Amazon. When you need a shaft relative vibration monitor for your >100 kΩ system, getting the wrong variant can mean days of additional downtime while you wait for the correct replacement. Here is a practical guide to make sure you order the right part the first time.
Check the exact part number. >100 kΩ uses configuration codes in their part numbers that determine input voltage, output type, communication protocol, and agency approvals. Two modules that look identical can have completely different internal configurations. Always match the full part number — not just the base model. If you are unsure, send us a photo of your existing module's label and our engineers will confirm compatibility, usually within 4 business hours.
Understand what you are buying. number of inputs: Two, independent or combined monitoring modes; type of inputs: Eddy current, differential; emerson sensor inputs: Part numbers: 6422, 6423, 6424, 6425; isolation: Galvanically separated from power supply. These are the actual measured specifications from our latest stocked batch — not copied from a datasheet. Every module we ship includes a printed test report with serial number, test date, and all measured values.
Plan for the worst case. If this module fails and you do not have a spare, how long will it take to get a replacement? OEM lead times for >100 kΩ parts can stretch to 8–12 weeks. We ship within 24 hours from stock. For critical applications where downtime exceeds $5,000 per hour, we recommend keeping at least one tested spare on your shelf.
