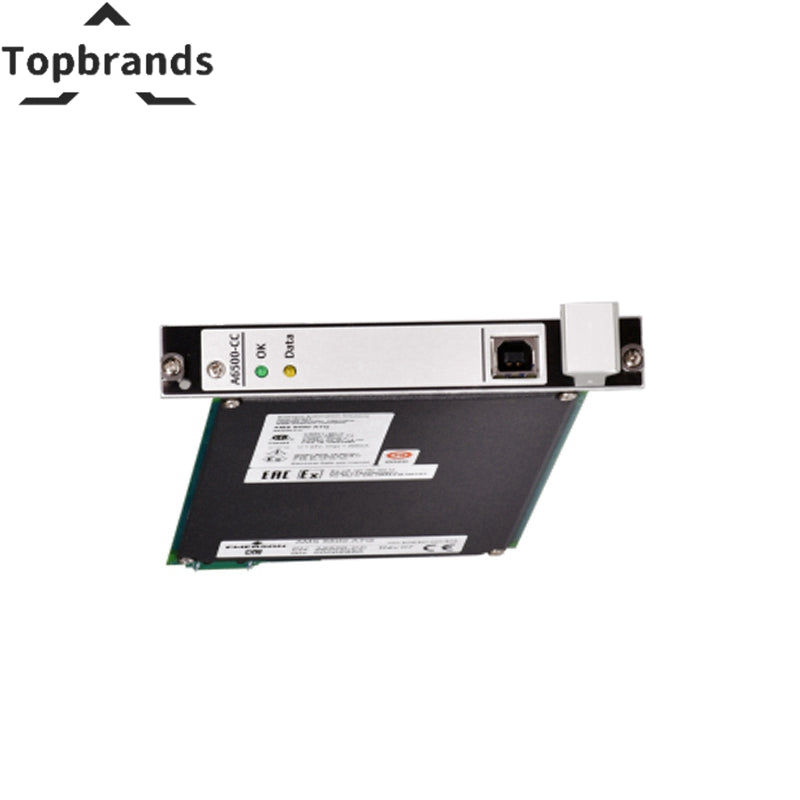

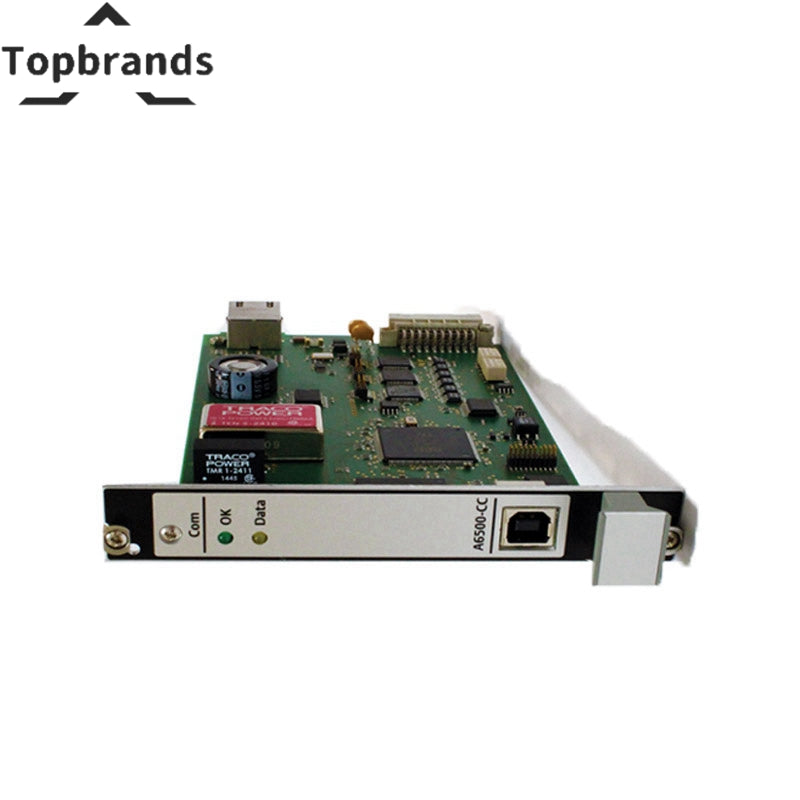

Emerson EPRO A6500-CC System Communication Card
A system communication card for EPRO systems — the A6500-CC handles Material: HumiSeal® 1B31 EPA | Storage Temperature: -40°C to 85°C (-40°F to 185°F) | Relative Humidity: 5% to 95%, non-condensing. Factory-sealed, tested on live rack with 48-hour burn-in. Ships today from Shenzhen. 12-month warranty.
Technical Specifications
| Protection Class | IP20 (IEC 60529) |
|---|---|
| Conformal Coating | HumiSeal® 1B31 EPA, resistant to airborne contaminants per ISA-S71.04-1985 airborne contaminants class G3 |
| Material | HumiSeal® 1B31 EPA |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Vibration Resistance | IEC 60068-2-6 |
| EMC Resistance | IEC 61326-1 |
| Power Consumption | Max. 4W |
| Configuration | Password protected |
| Rack Slot | 3RU/4HP |
| Board Dimensions | 100 x 160mm (3.937 x 6.300in) |
| Weight | 170g |
| RS485 | : |
| Data Rate | 512 kbit |
| Voltage | 2V peak-to-peak |
| Rated Current | 100 mA |
| Rated Power | 200 mW |
| Interface Grounding | Connected to earth |
| Ethernet | : |
| Connector | RJ45 |
| Max. Cable Length | 100 meters |
| USB | : |
| Connection Socket | USB Type B |
| Modbus | : |
| Bus Lines | 6 (max.) |
| Isolation | No specific isolation mentioned for Modbus. |
| Manufacturer | EPRO |
| Model / SKU | A6500-CC |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
The A6500-CC: Real-World Reliability
It is always the same story: 2 AM, the control system alarms, and the spare parts cabinet is empty. The EPRO A6500-CC — a system communication card — is the component that failed. Now you are calling suppliers, hoping someone has stock and can ship today.
That is the scenario we built PLC Parts Direct to solve. We stock the A6500-CC in our Shenzhen warehouse — physically, not virtually. When you order, our team picks it from the shelf, verifies the serial number against the test report, packs it in anti-static packaging, and hands it to DHL. You get a tracking number, not a processing status that drags on for weeks.
What you are getting: protection class: IP20 (IEC 60529); material: HumiSeal® 1B31 EPA; storage temperature: -40°C to 85°C (-40°F to 185°F); relative humidity: 5% to 95%, non-condensing. Every unit undergoes multi-point functional verification and 48-hour burn-in at 55°C before shipping. A printed test report is included. For steel manufacturing applications where reliability is everything, we recommend keeping one cold spare of each critical module type. The cost of the spare is negligible compared to the cost of unplanned downtime.
