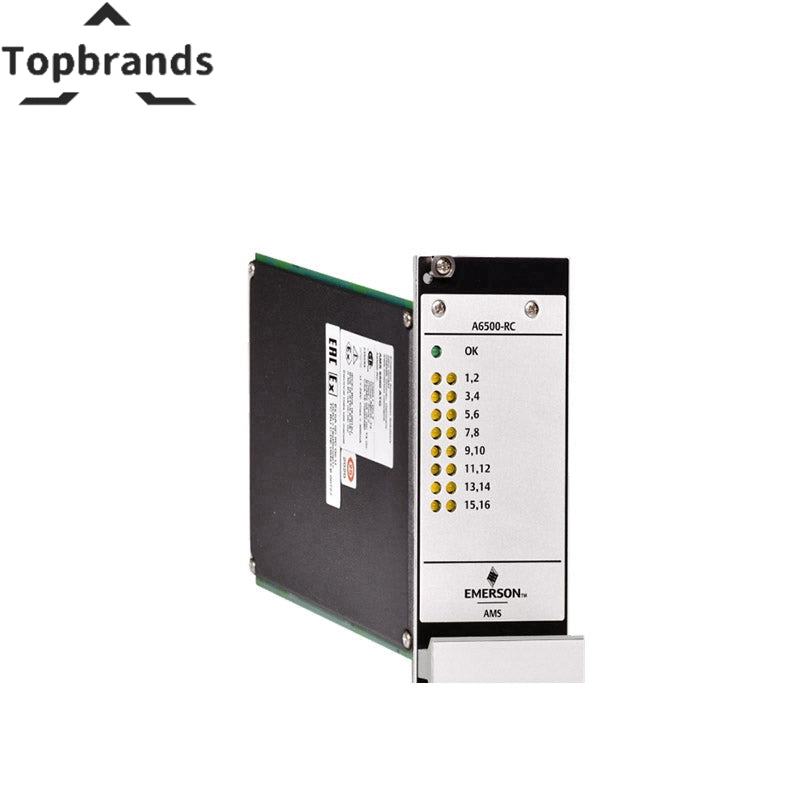

Emerson EPRO A6500-RC System Relay Card 100% Brand New
SKU: A6500-RC In Stock
EmersonEPROSystem Relay Card
The EPRO A6500-RC — a system relay card you will wish you had on the shelf when the old one fails. Number of Inputs: 66 | Logic Low Level: 0V to 3V | Logic High Level: 13V to 32V. Physical stock, not virtual inventory. Ships within 24 hours.
Technical Specifications
| 16-Channel Output Relay Module | is designed for high reliability for the plant’s most critical rotating machinery. This monitor is used together with the |
|---|---|
| AMS 6500 ATG | to build a complete API 670 machinery protection monitor. |
| Number of Inputs | 66 |
| Logic Low Level | 0V to 3V |
| Logic High Level | 13V to 32V |
| Open Input | Rated Current: 1 mA, Rated Power: 24 mW |
| Number of Outputs | 16 |
| Type | SPDT (Single Pole Double Throw) |
| Maximum Voltage Capacity | 32V DC / 48V AC |
| Output Load Turn-on / Turn-off Time | 10 ms (NO contact), 13 ms (NC contact) |
| Rated Power | 96 W |
| Active | Not active, active |
| Open Input Detection | Detected as not active |
| Protection Class | IP20, IEC 60529 |
| Conformal Coating | Yes |
| Temperature for Storage and Transport | -40°C to +85°C (-40°F to 185°F) |
| Relative Humidity | 5–95%, non-condensing |
| EMC Resistance | EN50081-1 / EN50082-2 |
| Power Consumption | Max. 6W |
| Configuration | Password protected |
| Manufacturer | EPRO |
| Model / SKU | A6500-RC |
📩 Request a Quote — A6500-RC
✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery
Category: all
Detailed Product Information
Real Inventory
Physically in Shenzhen. Not virtual. 10,000+ modules. Ships today.
Where It Operates
Deployed in offshore platforms on EPRO systems.
Examples
- The 16-Channel Output Relay Module is designed for high reliability for the plant’s most critical rotating machinery.
- This monitor is used together with the AMS 6500 ATG to build a complete API 670 machinery protection monitor.
- The digital input and output specifications: Number of Inputs: 66 Logic Low Level: 0V to 3V Logic High Level: 13V to 32V Open Input: Rated Current: 1 mA, Rated Power: 24 mW Relay Output: Number of Outputs: 16 Type: SPDT (Single Pole Double Throw) Maximum Voltage Capacity: 32V DC / 48V AC Output Load Turn-on / Turn-off Time: 10 ms (NO contact), 13 ms (NC contact) Rated Current: AC1: 2A at 48V, DC1: 2A at 32V, DC-13: 1A at 24V, AC-15: 2A at 24V Rated Power: 96 W Active: Not active, active Open Input Detection: Detected as not active Protection Class: IP20, IEC 60529 Conformal Coating: Yes Operating Temperature: Normal: -20°C to +70°C (-4°F to 158°F) With forced cooling: -20°C to +55°C (-4°F to 131°F) Temperature for Storage and Transport: -40°C to +85°C (-40°F to 185°F) Relative Humidity: 5–95%, non-condensing Vibration Resistance: IEC 68-2, part 6 0.
No spare = one failure from downtime. Ships within 24 hours.
Genuine Parts
100% genuine EPRO. Serial number, full traceability. Beware of counterfeits.
Function & Specs
Handles is designed for high reliability for the plant’s most critical rotating machinery. This monitor is used together with the. EPRO proprietary design.
Specifications
| Parameter | Value |
|---|---|
| 16-Channel Output Relay Module | is designed for high reliability for the plant’s most critical rotating machinery. This monitor is used together with the |
| AMS 6500 ATG | to build a complete API 670 machinery protection monitor. |
| Number of Inputs | 66 |
| Logic Low Level | 0V to 3V |
| Logic High Level | 13V to 32V |
| Open Input | Rated Current: 1 mA, Rated Power: 24 mW |
| Number of Outputs | 16 |
| Type | SPDT (Single Pole Double Throw) |
