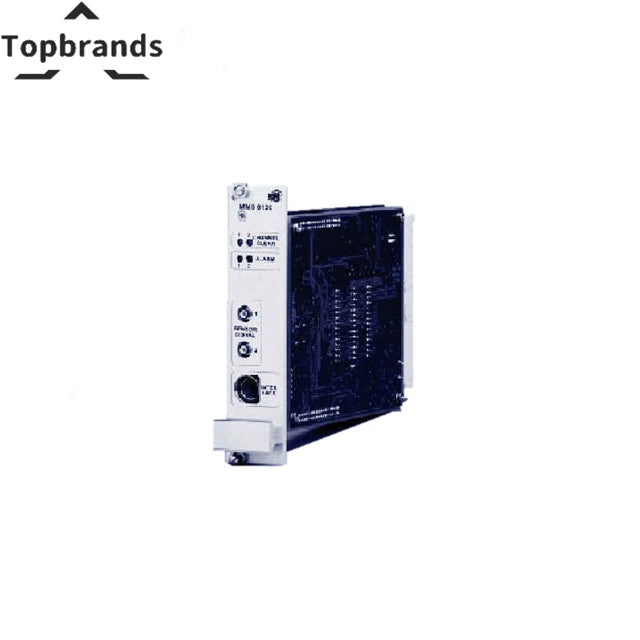

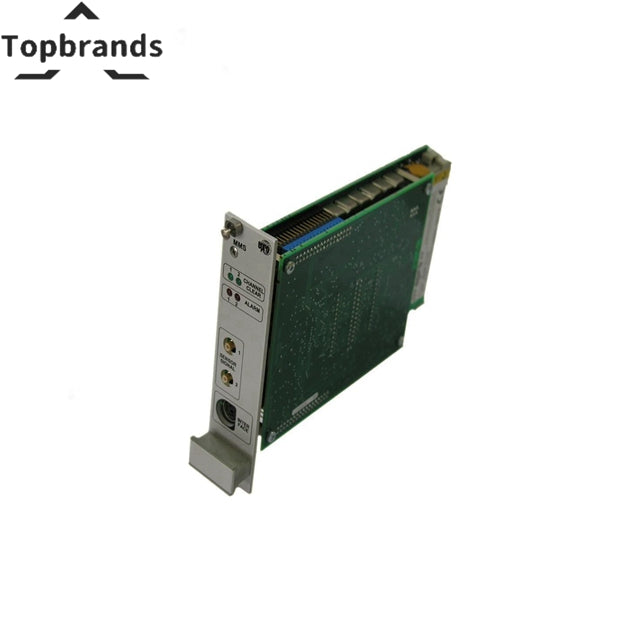

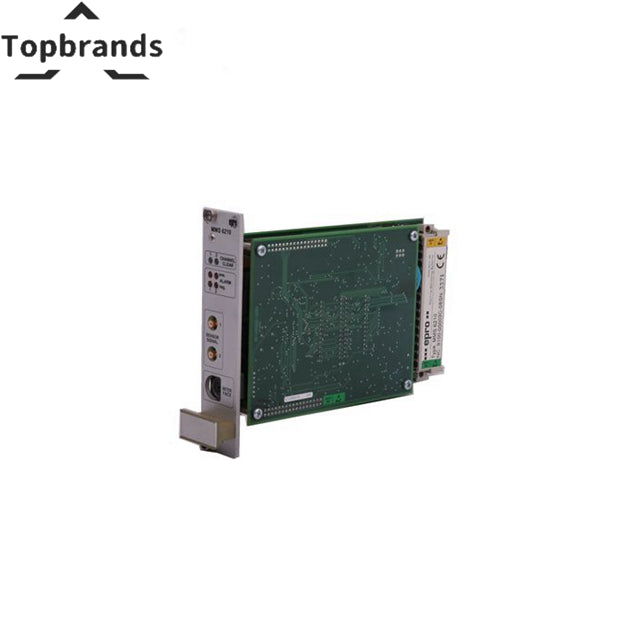

Emerson EPRO MMS 6120 Dual Channel Bearing Vibration Monitor
The EPRO MMS6120 — a dual channel bearing vibration monitor you want on your shelf before the old one fails. Description: Two independent inputs for electrodynamic vibration velocity sensors | Galvanic Separation: Galvanically separated from the power supply | Input Resistance: >100 kOhm. Physical stock. Ships within 24 hours with printed test report.
Technical Specifications
| Type | Potential free optocouplers on the rear strip connector |
|---|---|
| Mode | "Danger"; make or brake mode |
| Description | Two independent inputs for electrodynamic vibration velocity sensors |
| Galvanic Separation | Galvanically separated from the power supply |
| Input Resistance | >100 kOhm |
| Voltage Range | -5 to +15 V dc |
| Measuring Ranges | Continuously adjustable with the configuration software |
| Min. Dynamic Input Voltage | 311 mVpp for 100% measuring range |
| Max. Dynamic Input Voltage | 9500 mVpp for 100% measuring range |
| Frequency Range | 10 to 1000 Hz (according to VDI2056/) |
| Adjustable Alarm Levels | Two separately adjustable alarm levels for each channel |
| Blocking | Alarm functions can be blocked by the channel clear/circuit fault function or by an external input |
| Alarm Blocking After Configuration | After downloading a new configuration, alarms are blocked for 15 sec. settling time |
| Logic Binary Inputs | Common logic binary inputs for both channels |
| Optocoupler Mode | To select "Alert"; make or brake mode |
| Limit Supervision | Switching hysteresis of 5% of full scale deflection (FSD) |
| Resolution | 10 bit |
| Voltage | Umax=48Vdc |
| Max Current | 100 mA |
| Width | 30.0 mm (6 TE) |
| Height | 128.4mm (3 HE) |
| Length | 160.0 mm |
| Gross Weight | Approximately 450 g |
| Manufacturer | EPRO |
| Model / SKU | MMS6120 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Why the EPRO MMS6120 Matters for Your Operation
In offshore, every component in your control system has a specific job — and when one fails, the ripple effects can shut down an entire production line. The EPRO MMS6120 is a dual channel bearing vibration monitor that keeps your platform safety systems and subsea control running without interruption.
Here is what this module actually does. type: Potential free optocouplers on the rear strip connector; mode: "Danger"; make or brake mode; description: Two independent inputs for electrodynamic vibration velocity sensors; galvanic separation: Galvanically separated from the power supply. These are not generic specifications — they determine whether this module will work in your specific EPRO system. We have seen too many cases where a maintenance team ordered a replacement only to find it was the wrong revision or configuration. That is why we test every MMS6120 on a live EPRO rack before shipping — full signal injection across every channel, not just a visual check.
Installation matters too. The most common cause of DOA reports is not a defective module — it is bent backplane pins from forcing a module in at the wrong angle. Take your time lining up the guides. Apply even pressure. If it does not slide in smoothly, stop and check the alignment. Always wear a grounded wrist strap — static discharge from removing a fleece jacket in a dry offshore platform can exceed 15,000 volts, destroying sensitive input protection diodes instantly.
Think about your sparing strategy. A single EPRO MMS6120 costs a fraction of what one hour of unplanned downtime costs in offshore. We ship replacements within 24 hours from Shenzhen — but even 24 hours is too long if you are losing production. For critical applications, keep one cold spare on your shelf.
