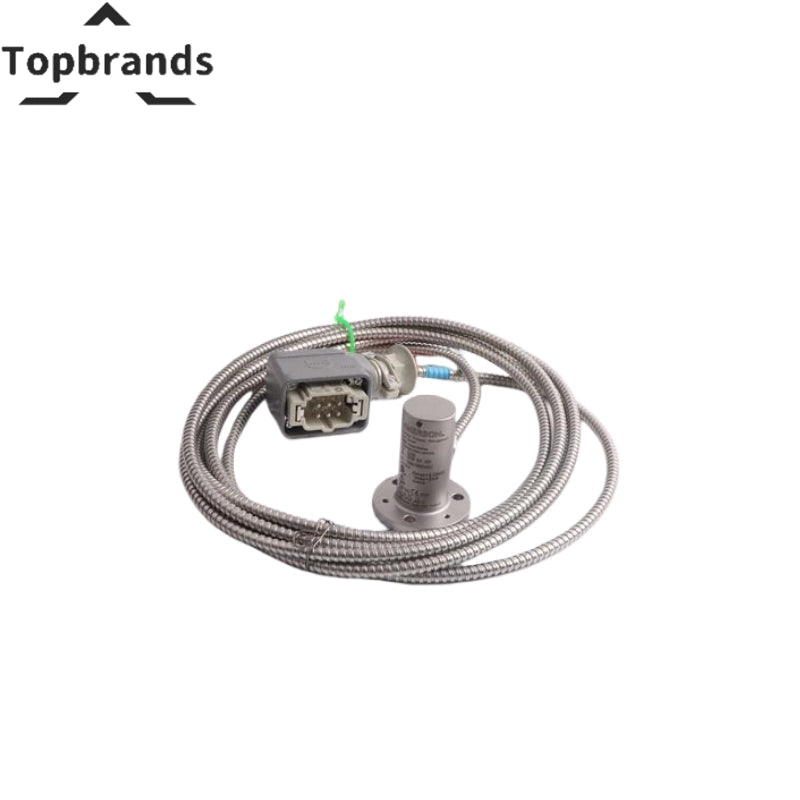

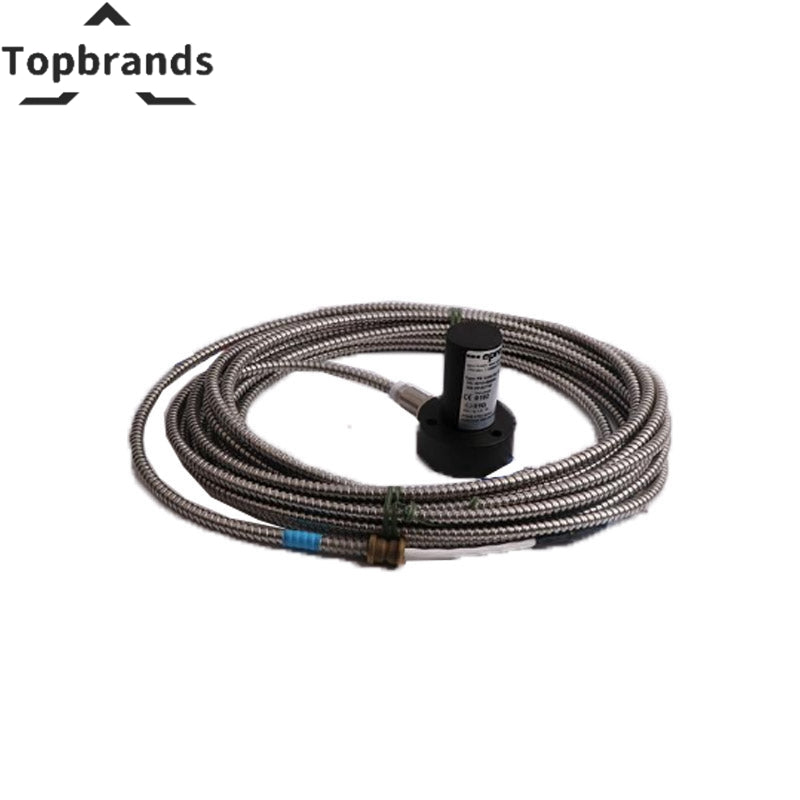

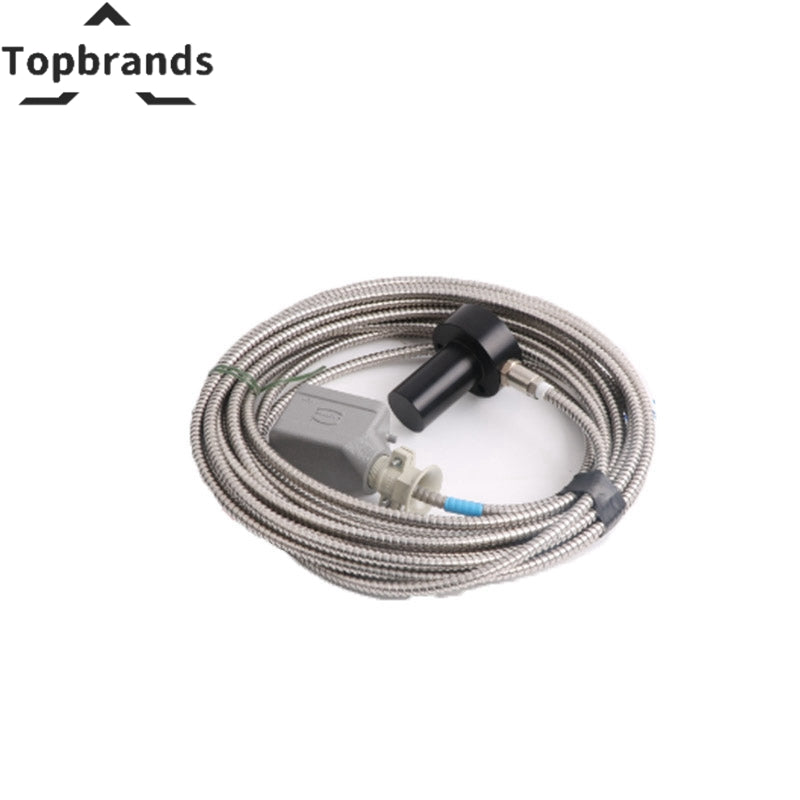

Emerson EPRO PR9268/200-000 Electrodynamic Velocity Sensor
Downtime costs thousands per hour. The PR9268/200-000 electrodynamic velocity sensor pays for itself the first time you need it. Natural Frequency: 4.5 Hz ± 0.75 Hz @ 20°C (68°F) | Transverse Sensitivity: < 0.1 @ 80 Hz | Vibration Amplitude: ± 500 μm. Factory-new, bench-tested, 12-month warranty.
The PR9268/200-000: Real-World Reliability
It is always the same story: 2 AM, the control system alarms, and the spare parts cabinet is empty. The EPRO PR9268/200-000 — a electrodynamic velocity sensor — is the component that failed. Now you are calling suppliers, hoping someone has stock and can ship today.
That is the scenario we built PLC Parts Direct to solve. We stock the PR9268/200-000 in our Shenzhen warehouse — physically, not virtually. When you order, our team picks it from the shelf, verifies the serial number against the test report, packs it in anti-static packaging, and hands it to DHL. You get a tracking number, not a processing status that drags on for weeks.
What you are getting: sensitivity: 17.5 mV/mm/s; frequency range: 14 to 1000 Hz; natural frequency: 4.5 Hz ± 0.75 Hz @ 20°C (68°F); transverse sensitivity: < 0.1 @ 80 Hz. Every unit undergoes multi-point functional verification and 48-hour burn-in at 55°C before shipping. A printed test report is included. For water treatment applications where reliability is everything, we recommend keeping one cold spare of each critical module type. The cost of the spare is negligible compared to the cost of unplanned downtime.
Technical Specifications
| Sensitivity | 17.5 mV/mm/s |
|---|---|
| Frequency Range | 14 to 1000 Hz |
| Natural Frequency | 4.5 Hz ± 0.75 Hz @ 20°C (68°F) |
| Transverse Sensitivity | < 0.1 @ 80 Hz |
| Vibration Amplitude | ± 500 μm |
| Amplitude Linearity | < 2% |
| Maximum Transverse Acceleration | 2g (19.62 m/s^2) |
| Damping Factor | ~0.6% @ 20°C (68°F) |
| Resistance | 1723Ω ± 2% |
| Inductance | ≤ 90 mH |
| Active Capacity | < 1.2 nF |
| Operating Temperature Range | -20 to +100°C (-4 to 212°F) |
| Protection Class | IP65 |
| Relative Humidity | 0 to 100%, Non-Condensing |
| Material | Stainless Steel |
| Weight | 0.74 kg |
| Manufacturer | EPRO |
| Model / SKU | PR9268/200-000 |
✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery
