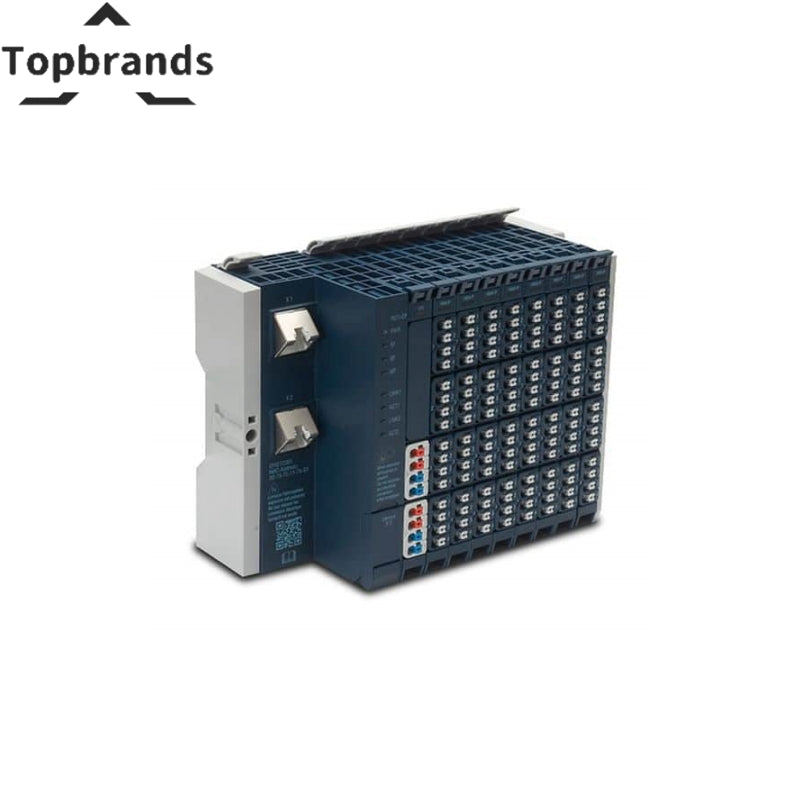

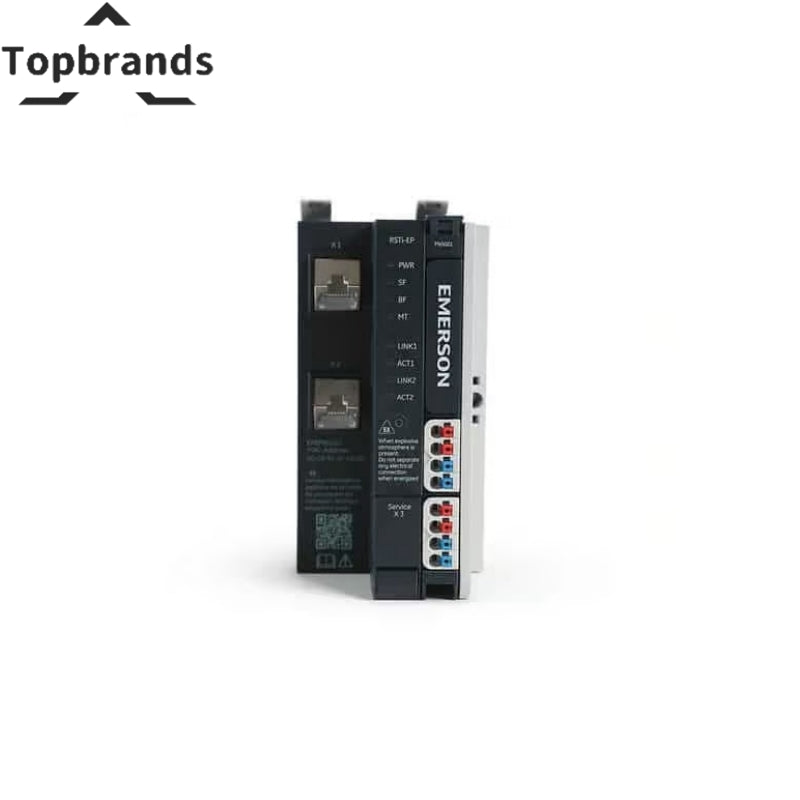

EMERSON | PROFINET I/O Device | EPXPNS001 | PACSystems | Network Adapter
Downtime costs thousands per hour. The EPXPNS001 network adapter pays for itself the first time you need it. Number of Modules: Max. 64 active | Configuration Interface: Micro USB 2.0 | Data Format: Default: Motorola; Configurable: Intel. Factory-new, bench-tested, 12-month warranty.
Technical Specifications
| Connection | 2 x RJ-45 |
|---|---|
| Fieldbus Protocol | PROFINET Version 2.3 Class C I/O Device (IRT, RT) |
| Number of Modules | Max. 64 active |
| Configuration Interface | Micro USB 2.0 |
| Data Format | Default: Motorola; Configurable: Intel |
| PROFINET I/O Update Rate | Configurable selections: 1ms, 2ms, 4ms, 8ms, 16ms, 32ms, 64ms, 128ms, 256ms, and 512ms |
| Supports MRP | Yes |
| Supply Voltage for System and Inputs | 20.4V – 28.8V |
| Supply Voltage for Outputs | 20.4V – 28.8V |
| Max. Feed-in Current for Input Modules | 10 A |
| Max. Feed-in Current for Output Modules | 10 A |
| Current Consumption from System Current Path ISYS | 116 mA |
| Type of Connection | Spring style |
| Conductor Cross-Section | Single-wired, fine-wired 0.14 – 1.5 mm² (AWG 26 – 16) |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Air Humidity (Operation/Transport) | 5% to 95%, non-condensing as per DIN EN 61131-2 |
| Width | 52 mm (2.05 in) |
| Depth | 76 mm (2.99 in) |
| Height | 120 mm (4.72 in) |
| Weight | 220 g (7.76 oz) |
| Manufacturer | Emerson |
| Model / SKU | EPXPNS001 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Everything You Need to Know About the Emerson EPXPNS001
What is this module? The EPXPNS001 is a network adapter for Emerson automation systems. connection: 2 x RJ-45; fieldbus protocol: PROFINET Version 2.3 Class C I/O Device (IRT, RT); number of modules: Max. 64 active; configuration interface: Micro USB 2.0.
Is it genuine? Yes. Every Emerson module we sell is 100% genuine — not a clone, not a compatible replacement. Manufacturer serial numbers and holographic labels are intact with full traceability.
How fast can I get it? We ship within 24 hours of confirmed payment from Shenzhen via DHL, FedEx, or UPS. Typical delivery is 3–5 business days worldwide. Customs documentation is included with every shipment.
What if it does not work? First, verify the module is installed in the correct chassis slot as configured in your system software. Slot mismatch is the #1 cause of DOA reports. If confirmed defective, we ship an advance replacement immediately under our 12-month warranty — before we even receive the returned unit.
Do I need to buy more than one? For critical mining applications, we recommend keeping one cold spare. The carrying cost is negligible compared to even a few hours of downtime. Contact us for volume pricing on 5+ units.
