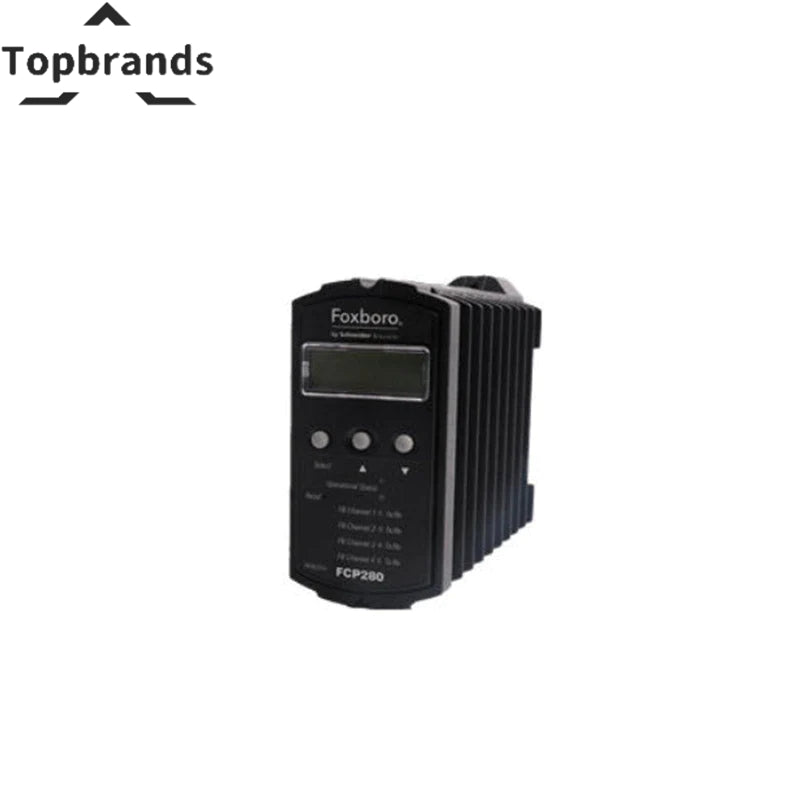

Foxboro | FCP280 | Field Control Processor 280 | Brand New
Need a reliable field control processor 280 for your Foxboro system? The FCP280 is a factory-sealed unit that handles Fieldbus Type: HDLC | Competitive Migration Modules: Refer to device-specific Product Specification Sheets | Classic OLUG: 15.75 MB. We test every module on a live rack before it leaves our Shenzhen facility. Ships same day. 12 months warranty.
Technical Specifications
| Control Processor | ARM® System on a Chip (SOC) |
|---|---|
| Error Detection | ECC for single-bit error correction and multiple-bit error detection |
| Fieldbus Type | HDLC |
| Competitive Migration Modules | Refer to device-specific Product Specification Sheets |
| Classic OLUG | 15.75 MB |
| Enhanced OLUG | 19.75 MB |
| Total | 11,250 |
| Maximum | 32 kB per block |
| Depends on | Scan periods and block type selection |
| Time | 50 ms |
| BPC ≥ 200 ms | 18,000 points |
| BPC ≤ 100 ms | 7,500 points |
| Seconds | 0.05, 0.1, 0.2, 0.5, 0.6, 1, 2, 5, 6, 10, 30 |
| Minutes | 1, 10, 60 |
| Options | 0.05, 0.1, 0.2, 0.5, 1.0 seconds |
| Less Than | 0.5 seconds |
| Self-Checking | At power-up |
| Run-Time Checks | Includes watchdog timer and constant synchronization in fault-tolerant mode |
| Input Voltage | 24 V DC (Redundant) |
| Single Module | 11 W maximum |
| Fault-Tolerant Pair | 20 W maximum |
| EMC Directive 2014/30/EU | EN 61326-1 Class A |
| Operating Temperature | -20 to 60°C (-4 to 140°F) |
| Storage Temperature | -40 to +70°C (-40 to +158°F) |
| Relative Humidity | 5 to 95% (Non-condensing) |
| Operating | -300 to +3,000 m (-1,000 to +10,000 ft) |
| Storage | -300 to +12,000 m (-1,000 to +40,000 ft) |
| Contamination Class | G3 (Harsh) |
| Vibration | 0.5 g (5 to 500 Hz) |
| Mounting | Device-specific 2-position baseplates (horizontal or vertical) |
| Height | 105 mm (4.13 in) or 116 mm (4.7 in) |
| Width | 51.8 mm (2.04 in) |
| Depth | 147 mm (5.79 in) |
| Weight (Maximum) | 0.8 kg (1.76 lb) |
| FCP280 | RH924YA |
| Fiber Optic Cable | Multimode fiber (MMF) 62.5/125 µm plenum |
| Manufacturer | Foxboro |
| Model / SKU | FCP280 |
✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery
Detailed Product Information
Installation Tips
Practical advice: (1) Verify backplane voltage before insertion. (2) ESD protection mandatory — static kills modules. (3) If it does not slide smoothly, stop — bent pins are #1 DOA cause. (4) Run diagnostics before returning to service.
Real Inventory
The FCP280 is physically in Shenzhen — not virtual, not drop-shipped, not sourced after order. 10,000+ modules across 20+ brands. What you see ships today.
Genuine Parts Verification
100% genuine Foxboro — not clones, not knockoffs. Manufacturer label and serial number. Authorized sourcing with full traceability. Beware of counterfeits flooding the market.
What This Module Does
The Foxboro FCP280 handles ARM® System on a Chip (SOC) in your architecture. Engineered for Foxboro platforms with proprietary design that clones cannot match.
Specifications
| Parameter | Value |
|---|---|
| Control Processor | ARM® System on a Chip (SOC) |
| Error Detection | ECC for single-bit error correction and multiple-bit error detection |
| Fieldbus Type | HDLC |
| Competitive Migration Modules | Refer to device-specific Product Specification Sheets |
| Classic OLUG | 15.75 MB |
| Enhanced OLUG | 19.75 MB |
| Total | 11,250 |
How the FCP280 Is Used
This field control processor 280 operates in refineries where a single trip costs over $100K. Our customers install these in Foxboro systems where reliability is non-negotiable.
Deployments
- The Specifications of FCP280 Field Control Processor 280: Processor Type: Control Processor: ARM® System on a Chip (SOC) Memory: 128 MB SDRAM 128 MB Flash Memory Error Detection: ECC for single-bit error correction and multiple-bit error detection Process I/O Communications: Fieldbus Type: HDLC Transmission Rate: 2 Mbps for 200 Series FBMs 268 Kbps for 100 Series FBMs Process I/O Capacity: 200 Series FBMs: Up to 32 per Expanded Fieldbus Up to 128 FBMs over all four Expanded Fieldbuses with 200 Series FBMs Mixed with 100 Series FBMs: Up to 128 FBMs, e.
- , 64 100 Series and 64 200 Series FBMs 100 Series FBMs: 64 FBMs per PIO bus/baseplate port Total of 128 FBMs per FCP280 Competitive Migration Modules: Refer to device-specific Product Specification Sheets Memory Allocation for Blocks: Classic OLUG: 15.
- 75 MB Maximum Number of Blocks Configured: Total: 8,000 (7,993 user-configured) Block Executions Per Second: Maximum: 16,000 blocks/second Maximum Number of Blocks Processed: Depends on: Scan periods and block type selection Minimum Block Processing Cycle (BPC): Time: 50 ms Sequence Block Size: Maximum: 32 kB per block Maximum Number of IPC Connections: Total: 231 200 Source Points 30 Sink Points 1 Internal Use Only Maximum Number of OM Sink Lists: Total: 75 Maximum OM Scanner Database: BPC ≥ 200 ms: 18,000 points BPC ≤ 100 ms: 7,500 points Maximum Number of OM Sink Points: Total: 11,250 Configurable Block Periods: Seconds: 0.
Running without a spare means one failure away from unplanned downtime. We ship within 24 hours.
