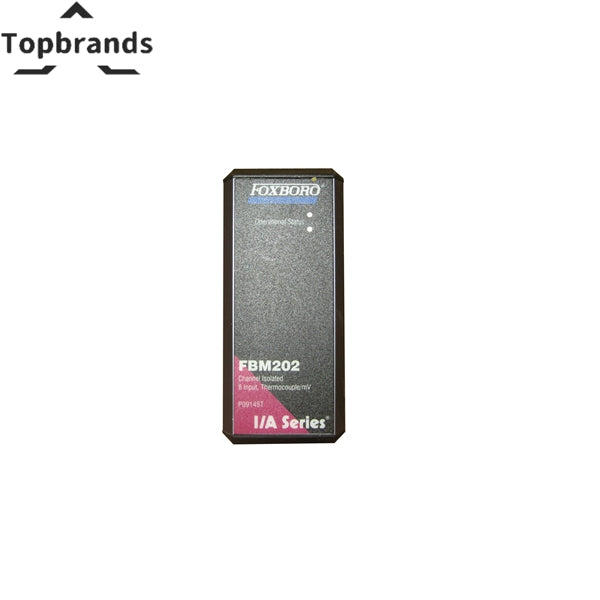

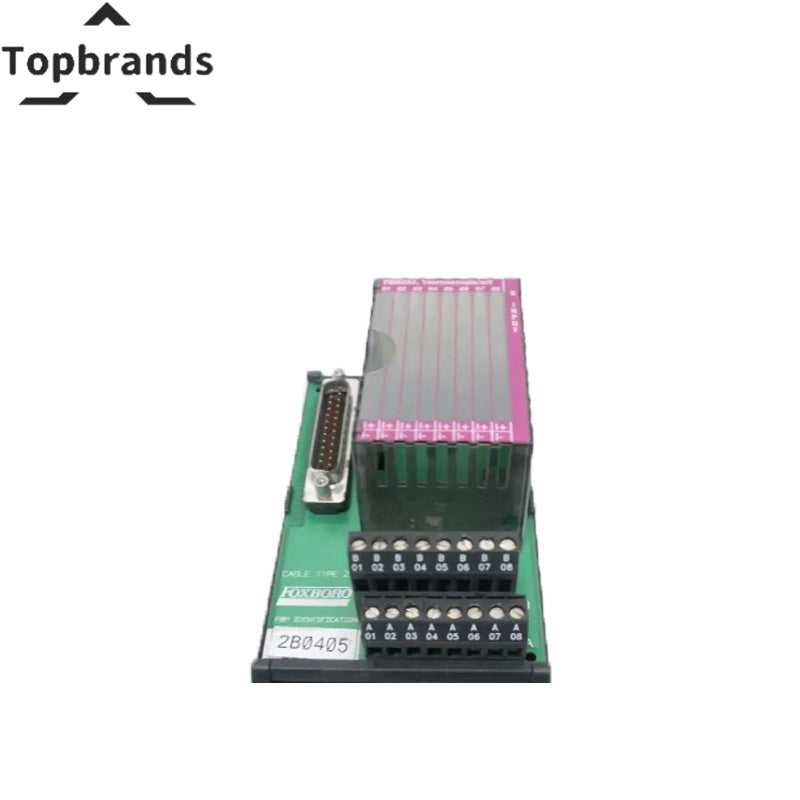

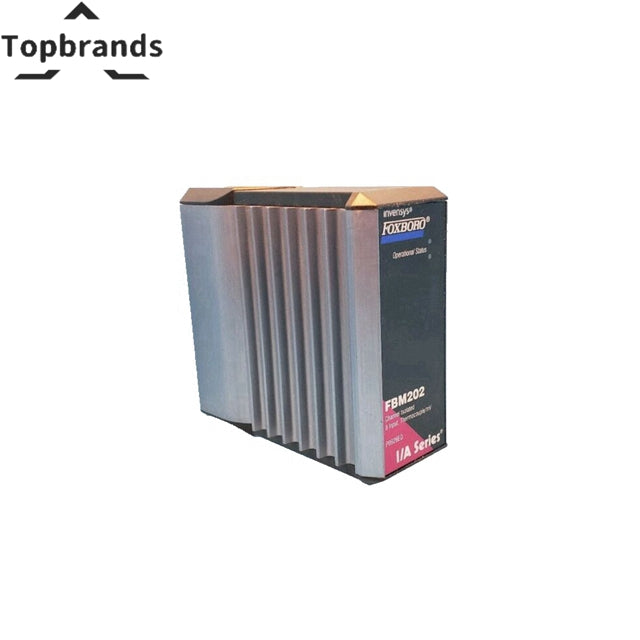

Foxboro I/A Series FBM202 P0916AC Thermocouple/mV Input Module
The Foxboro FBM202-P0916AC — a thermocouple/mv input module you want on your shelf before the old one fails. Consumption: 3 W (maximum) | Heat Dissipation: 3 W (maximum) | Height: 102 mm (4 in), 114 mm (4.5 in) including mounting lugs. Physical stock. Ships within 24 hours with printed test report.
Buying a Foxboro FBM202-P0916AC: What to Look For
Ordering industrial spare parts is not like online shopping. When you need a thermocouple/mv input module for your Foxboro system, getting the wrong variant can mean days of additional downtime. Here is how to get it right the first time.
Match the exact part number. Foxboro uses configuration codes in part numbers that determine input voltage, output type, communication protocol, and agency approvals. Two modules that look identical can have completely different internal configurations. Always match the full part number — not just the base model. Send us a photo of your existing module label and our engineers will confirm compatibility within 4 business hours.
Know what you are buying. input voltage range (redundant): 24 V dc, +5%, -10%; consumption: 3 W (maximum); heat dissipation: 3 W (maximum); height: 102 mm (4 in), 114 mm (4.5 in) including mounting lugs. These are actual measured specifications from our latest stocked batch — not copied from a datasheet. Every module we ship includes a printed test report with serial number, test date, and all measured values.
Plan ahead. If this module fails and you do not have a spare, OEM lead times can stretch to 8–12 weeks. We ship within 24 hours from stock. For critical offshore applications, keep at least one tested spare on your shelf.
Technical Specifications
| FBM202 Thermocouple/mV Input | contains eight thermocouple input channels, and one isolated RTD reference junction compensation channel (for terminal temperature sensing). Each thermocouple/mV channel accepts standard thermocouples for various temperature ranges, and each provides thermocouple burnout detection (up-scale). The inputs are galvanically isolated from other channels and ground. |
|---|---|
| Input Voltage Range (Redundant) | 24 V dc, +5%, -10% |
| Consumption | 3 W (maximum) |
| Heat Dissipation | 3 W (maximum) |
| Height | 102 mm (4 in), 114 mm (4.5 in) including mounting lugs |
| Width | 45 mm (1.75 in) |
| Depth | 104 mm (4.11 in) |
| Manufacturer | Foxboro |
| Model / SKU | FBM202-P0916AC |
✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery
