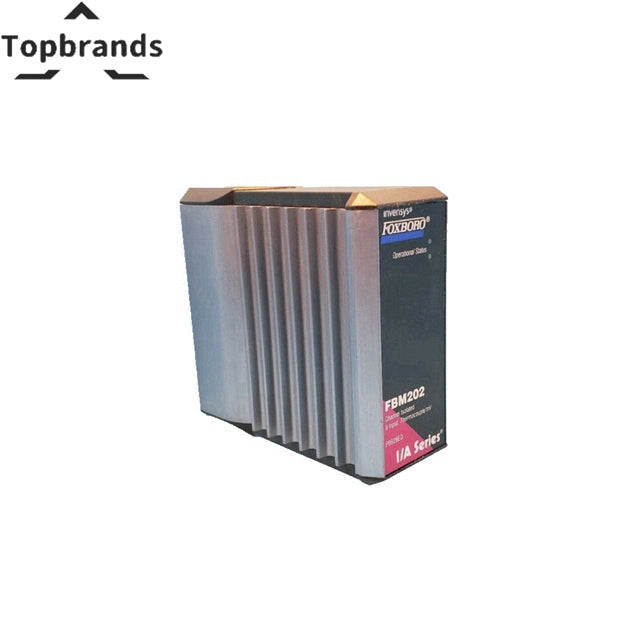

Foxboro I/A Series FBM202 P0926EQ 8-Channel Thermocouple/Millivolt Input Module
The Foxboro FBM202-P0926EQ is one of those modules you do not think about until it fails. Designed as a thermocouple/millivolt input module for Foxboro platforms, it manages RTD Reference Junction Conformity: ±0.25°C | Thermocouple Conformity: ±0.25°C | Accuracy Temperature Coefficient: ±50 ppm/°C. We keep these in physical stock and ship within 24 hours. Each unit includes a printed test report.
Technical Specifications
| Millivolt Input | ±0.03% of span (±24 µV) at 25°C |
|---|---|
| RTD Channel | ±0.03% of span |
| RTD Reference Junction Conformity | ±0.25°C |
| Thermocouple Conformity | ±0.25°C |
| Accuracy Temperature Coefficient | ±50 ppm/°C |
| RTD Reference Junction Measurement Accuracy | ±0.50°C |
| Differential Input Impedance | 10 MΩ |
| Common Mode Voltage | Up to 30 V ac or 60 V dc |
| Dimensions | 4 x 45 x 23 cm |
| Weight | 1.8 kg |
| Manufacturer | Foxboro |
| Model / SKU | FBM202-P0926EQ |
✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery
Detailed Product Information
How the FBM202-P0926EQ Is Used
This thermocouple/millivolt input module operates in steel mills where extreme conditions punish every component. Our customers install these in Foxboro systems where reliability is non-negotiable.
Deployments
- Technical specifications: Input Range: -10.
- 5 mV dc Accuracy: Millivolt Input: ±0.
- 03% of span (±24 µV) at 25°C RTD Channel: ±0.
Running without a spare means one failure away from unplanned downtime. We ship within 24 hours.
Spare Parts Economics
A Foxboro FBM202-P0926EQ costs thousands. One day of downtime in steel mills where extreme conditions punish every component costs $10K-$250K. One avoided outage pays for your spares 10-100x over. For critical systems, keep at least one cold spare per module type.
What This Module Does
The Foxboro FBM202-P0926EQ handles ±0.03% of span (±24 µV) at 25°C in your architecture. Engineered for Foxboro platforms with proprietary design that clones cannot match.
Specifications
| Parameter | Value |
|---|---|
| Millivolt Input | ±0.03% of span (±24 µV) at 25°C |
| RTD Channel | ±0.03% of span |
| RTD Reference Junction Conformity | ±0.25°C |
| Thermocouple Conformity | ±0.25°C |
| Accuracy Temperature Coefficient | ±50 ppm/°C |
| RTD Reference Junction Measurement Accuracy | ±0.50°C |
| Differential Input Impedance | 10 MΩ |
Technical Support
Engineers average 8 years with Foxboro systems. Video call installation support. Configuration troubleshooting. Part number cross-referencing. Included with purchase. Response within 4 hours.
