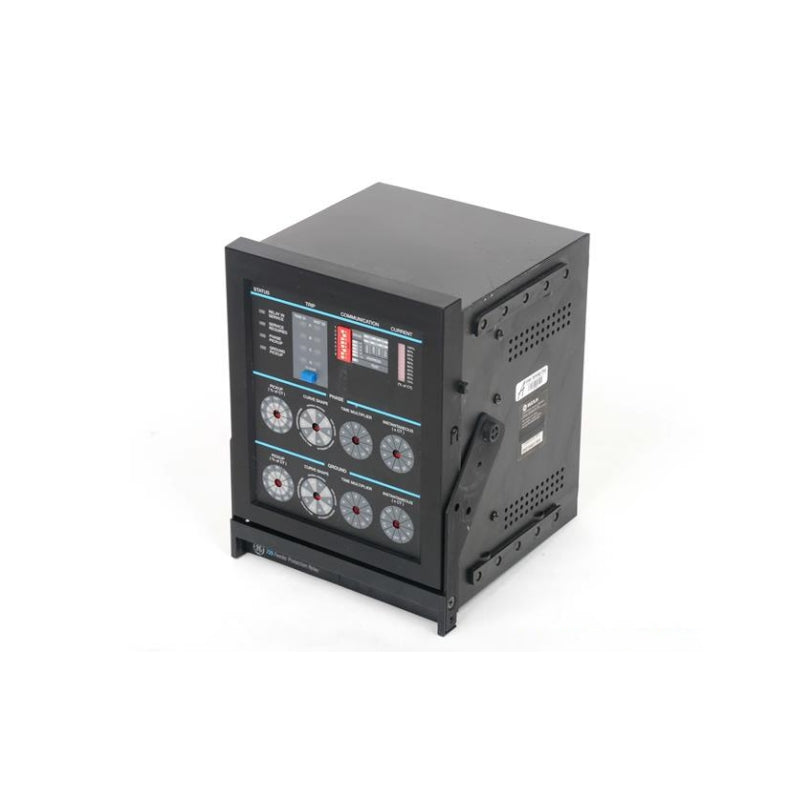

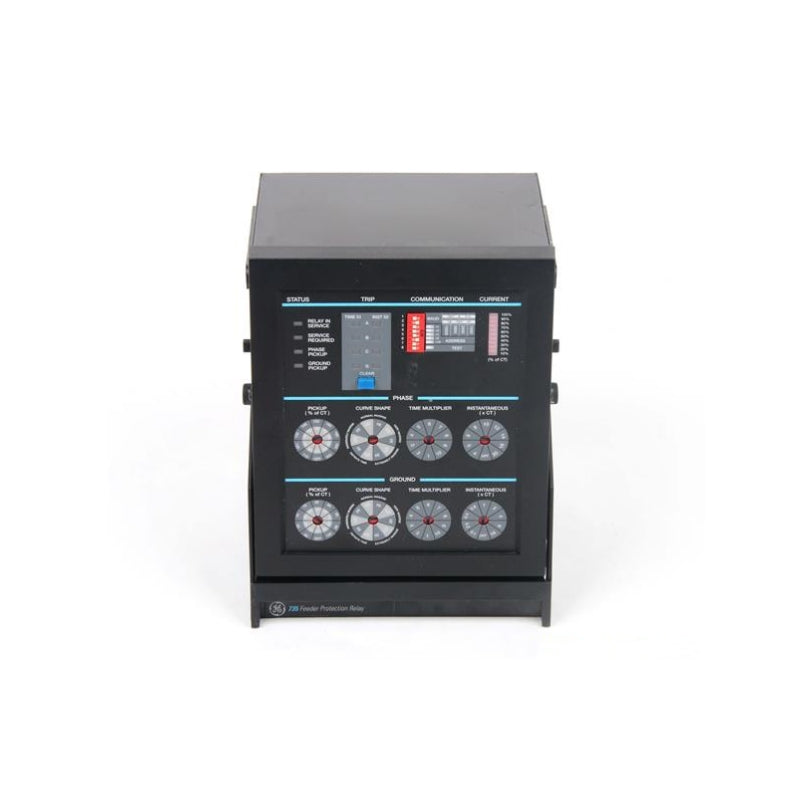

GE 735-5-5-HI-485 Feeder Protection Relay in stock
The GE 735-5-5-HI-485 is a feeder protection relay for GE platforms. Phase CT Secondary: 5 A. | Ground CT Secondary: 5 A. | Power Supply: 90-300 V DC or 70-265 V AC at 50/60 Hz.. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| Status | Discontinued by Manufacturer. |
|---|---|
| Model | Standard 735 with 50/51 and 50G/51G Protection. |
| Phase CT Secondary | 5 A. |
| Ground CT Secondary | 5 A. |
| Power Supply | 90-300 V DC or 70-265 V AC at 50/60 Hz. |
| Communications | RS485 2-wire. |
| Operating Temperature Range | -40°C to 70°C. |
| Dimensions | 8.52 x 9.93 x 8.8 inches. |
| Weight | Approximately 15 lbs (6.8 kg). |
| Warranty | 1-year warranty. |
| Manufacturer | GE |
| Model / SKU | 735-5-5-HI-485 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
GE 735-5-5-HI-485 Overview
The GE 735-5-5-HI-485 Feeder Protection Relay in stock is a feeder protection relay for GE platforms.
Specifications:
Status: Discontinued by Manufacturer.
Model: Standard 735 with 50/51 and 50G/51G Protection.
Phase CT Secondary: 5 A.
Ground CT Secondary: 5 A.
Power Supply: 90-300 V DC or 70-265 V AC at 50/60 Hz.
Factory-sealed. Full verification: live-rack power-up, signal injection, comm port check, 48-hour burn-in at 55C. Printed test report. Worldwide shipping within 24 hours. 12-month warranty.
Compatible Parts — Same System
These modules share the same system family as the 735-5-5-HI-485. Commonly ordered together for complete rack builds or spare parts kits.
