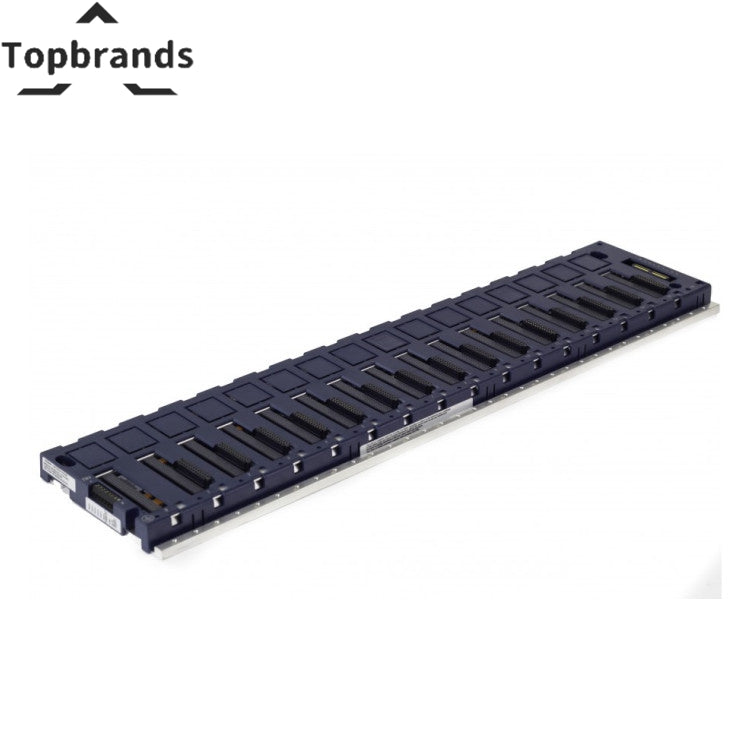

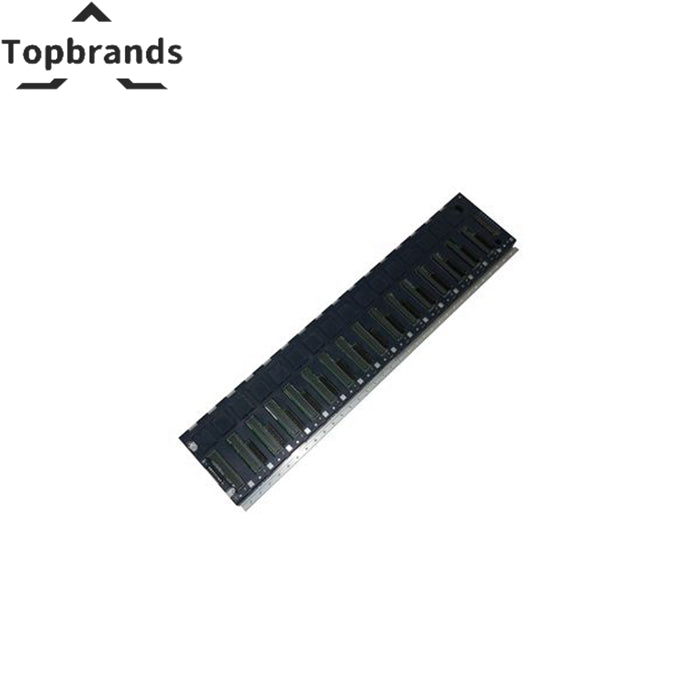

GE Fanuc IC695CHS016 RX3i PACSystem 16-Slot Universal Backplane
The GE IC695CHS016 — a 16-slot universal backplane you will wish you had on the shelf when the old one fails. Number of Slots: 16 | Distance: N/A | Dimensions: 5.57 x 23.7 x 5.80 in. (H x W x D). Physical stock, not virtual inventory. Ships within 24 hours.
Technical Specifications
| Module Type | Universal Controller and I/O |
|---|---|
| Backplane Support | PCI and High Speed Serial |
| Number of Slots | 16 |
| Distance | N/A |
| Dimensions | 5.57 x 23.7 x 5.80 in. (H x W x D) |
| Internal Power Used | 240 mA @ 5 VDC, 600 mA @ 3.3 VDC |
| Manufacturer | GE |
| Model / SKU | IC695CHS016 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Buying a GE IC695CHS016: What to Look For
Ordering industrial spare parts is not like online shopping. When you need a 16-slot universal backplane for your GE system, getting the wrong variant can mean days of additional downtime. Here is how to get it right the first time.
Match the exact part number. GE uses configuration codes in part numbers that determine input voltage, output type, communication protocol, and agency approvals. Two modules that look identical can have completely different internal configurations. Always match the full part number — not just the base model. Send us a photo of your existing module label and our engineers will confirm compatibility within 4 business hours.
Know what you are buying. module type: Universal Controller and I/O; backplane support: PCI and High Speed Serial; number of slots: 16; distance: N/A. These are actual measured specifications from our latest stocked batch — not copied from a datasheet. Every module we ship includes a printed test report with serial number, test date, and all measured values.
Plan ahead. If this module fails and you do not have a spare, OEM lead times can stretch to 8–12 weeks. We ship within 24 hours from stock. For critical pharmaceutical applications, keep at least one tested spare on your shelf.
Compatible Parts — Same System
These modules share the same system family as the IC695CHS016. Commonly ordered together for complete rack builds or spare parts kits.
