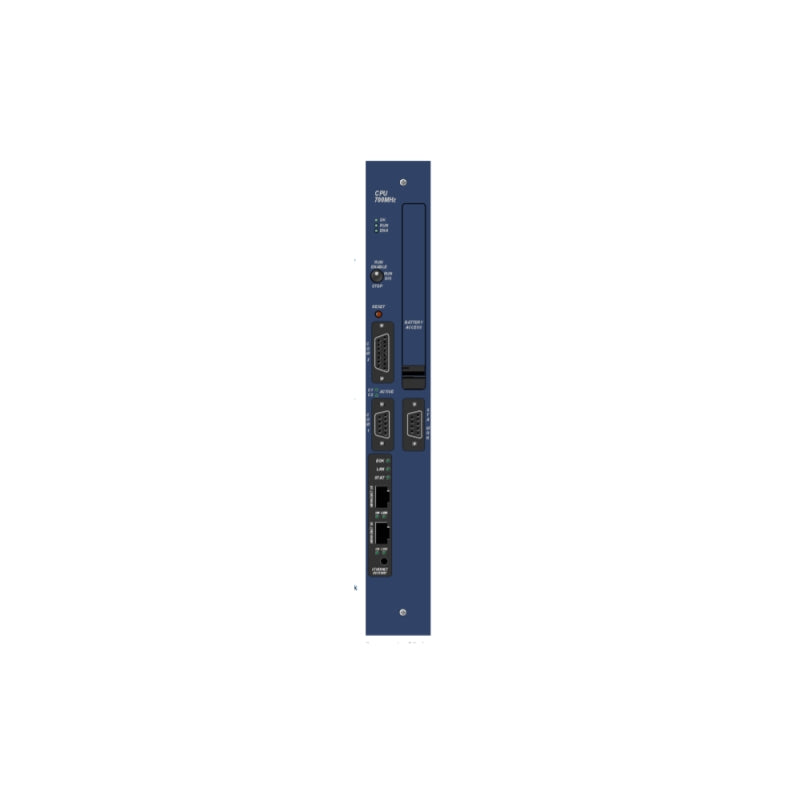

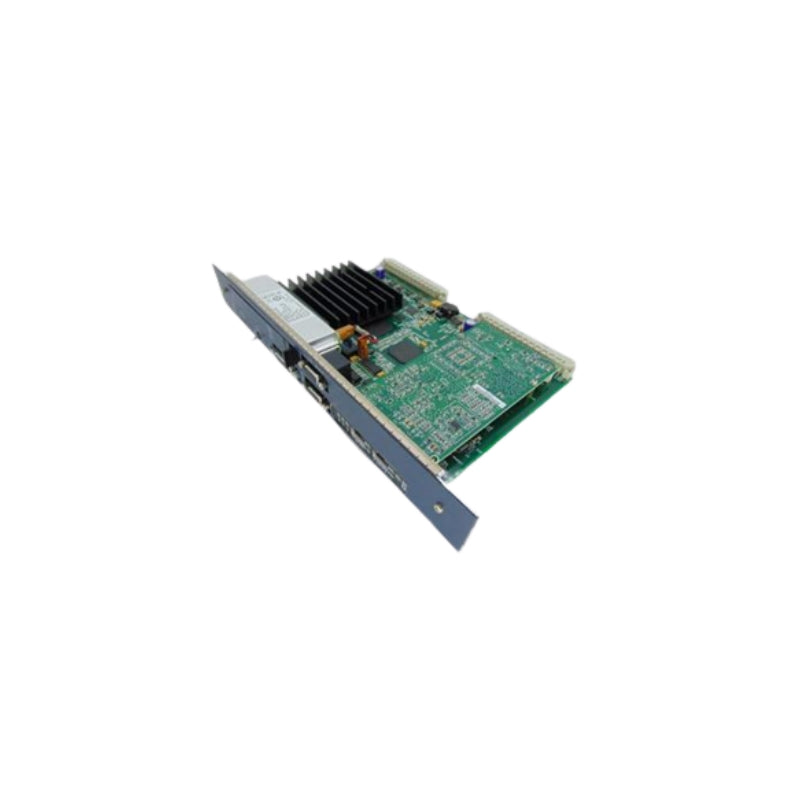

GE Fanuc | IC698CPE010 | RX7i | Central Processing Unit (CPU) Module
Industrial automation does not wait. The GE IC698CPE010 is a central processing unit on our shelf right now — real inventory. Time of Day Clock Accuracy: Maximum drift of 9 seconds per day | Web-based Data Monitoring: Up to 16 web server and FTP connections (combined) | Ethernet Data Rate: 10Mb/sec and 100Mb/sec. Functionally verified. 12-month warranty.
Technical Specifications
| Current Required from 5V Bus | 3.2 Amps nominal |
|---|---|
| Boolean Execution Speed (Typical) | 0.195ms per 1000 Boolean contacts/coils |
| Time of Day Clock Accuracy | Maximum drift of 9 seconds per day |
| Web-based Data Monitoring | Up to 16 web server and FTP connections (combined) |
| Ethernet Data Rate | 10Mb/sec and 100Mb/sec |
| Physical Interface | 10 BaseT RJ45 |
| Weight | 0.63 Kg |
| Manufacturer | GE |
| Model / SKU | IC698CPE010 |
✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery
Detailed Product Information
Installation Notes
Before insertion: verify backplane voltage. ESD wrist strap mandatory — static discharge kills modules instantly. If it does not slide smoothly, stop — bent pins are the #1 DOA cause. Run diagnostics after installation, not before the system goes live.
What This Module Does
Handles 3.2 Amps nominal in GE architectures. Proprietary design — clones cannot match the real thing.
Specifications
| Parameter | Value |
|---|---|
| Current Required from 5V Bus | 3.2 Amps nominal |
| Boolean Execution Speed (Typical) | 0.195ms per 1000 Boolean contacts/coils |
| Time of Day Clock Accuracy | Maximum drift of 9 seconds per day |
| Web-based Data Monitoring | Up to 16 web server and FTP connections (combined) |
| Ethernet Data Rate | 10Mb/sec and 100Mb/sec |
| Physical Interface | 10 BaseT RJ45 |
| Weight | 0.63 Kg |
| Manufacturer | GE |
| Model / SKU | IC698CPE010 |
How the IC698CPE010 Is Used
Operates in power plants with maintenance windows measured in hours. Installed in GE systems where reliability is everything.
Deployments
- Technical Specifications: Battery: Memory Retention: 5 years at 20°C (68°F) 40 days nominal without applied power Program Storage: Up to 10 Mbytes of battery-backed RAM 10 Mbytes of non-volatile flash user memory Current Required from 5V Bus: 3.
- 2 Amps nominal Operating Temperature: 0 to 50°C (32°F to 122°F) 0 to 60°C (32°F to 140°F) with fan tray Boolean Execution Speed (Typical): 0.
- 195ms per 1000 Boolean contacts/coils Time of Day Clock Accuracy: Maximum drift of 9 seconds per day Web-based Data Monitoring: Up to 16 web server and FTP connections (combined) Ethernet Data Rate: 10Mb/sec and 100Mb/sec Physical Interface: 10 BaseT RJ45 Weight: 0.
No spare? One failure away from downtime. We ship within 24 hours.
Compatibility
For GE platforms. Verify: firmware revision supports this module, available slot in correct chassis, power budget handles additional load. Send photo of existing label — we confirm within 4 hours.
Troubleshooting
Most failures are config issues, not hardware. Check: correct slot assignment, backplane power within spec, all connectors fully seated, system event log for clues. Contact us before RMA — many issues are solved remotely.
