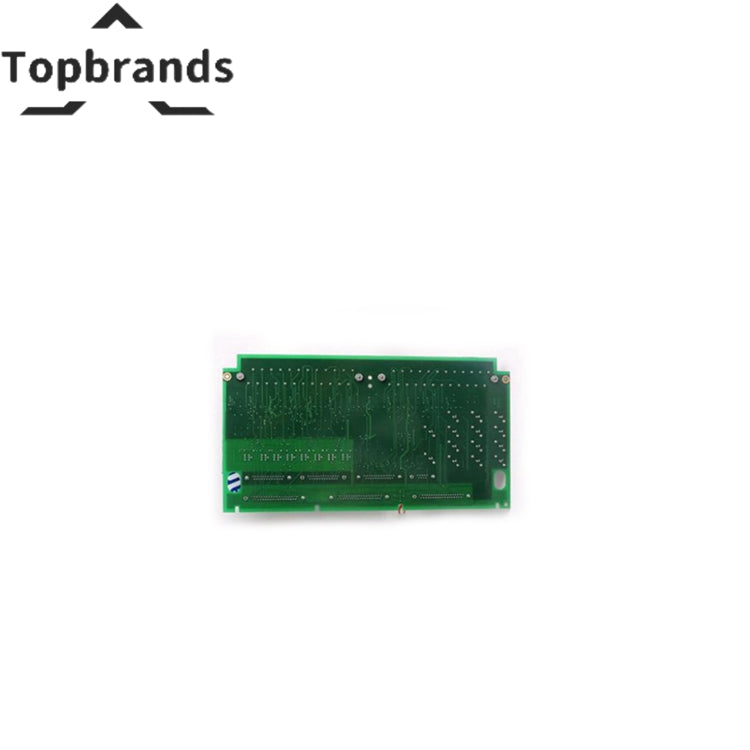

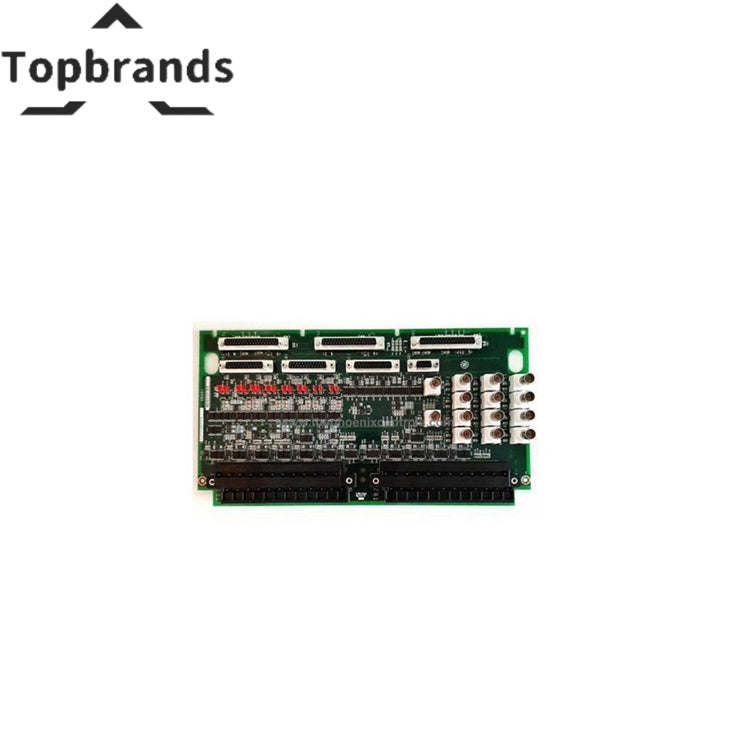

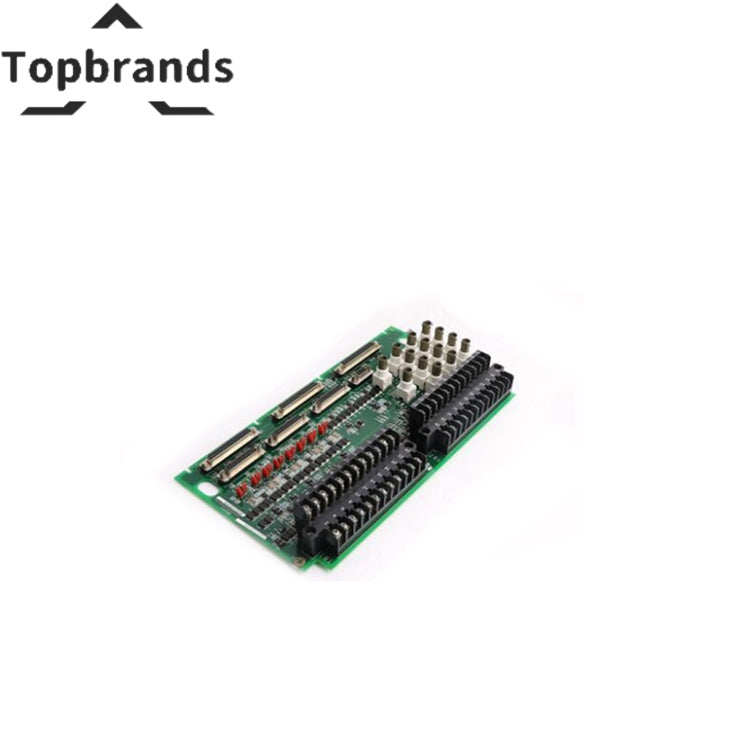

GE IS200TVIBH2BBB Vibration Termination Board
The GE IS200TVIBH2BBB is a vibration termination board for GE platforms. Jumpers: Sixteen jumper switches for modifying circuit routing. | Compatibility: Works in conjunction with the VVIB board for enhanced vibration control. | RPM Limitations: Specific RPM limitations must be considered for optimal vibration control.. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Overview: GE IS200TVIBH2BBB
vibration termination board in the GE family.
Specifications:
Jumpers: Sixteen jumper switches for modifying circuit routing.
Compatibility: Works in conjunction with the VVIB board for enhanced vibration control.
RPM Limitations: Specific RPM limitations must be considered for optimal vibration control.
Power Supply: 24V DC
Communication Interfaces: Ethernet, RS485
Cold spare recommended for high-availability. Ships within 24h. 12-month warranty.
Technical Specifications
| IS200TVIBH2BBB | is designed for controlling and monitoring vibration in industrial steam and gas turbine systems. It integrates seamlessly with the Mark VI system, offering both control and protection features. The board incorporates multiple integrated circuits, resistors, capacitors, and other components to efficiently manage data and control functions. |
|---|---|
| Connectors | Includes fourteen plug connectors on one side, two large terminal blocks with screw connections, female d-shell connectors, inductors, and jumper switches. |
| Jumpers | Sixteen jumper switches for modifying circuit routing. |
| Compatibility | Works in conjunction with the VVIB board for enhanced vibration control. |
| RPM Limitations | Specific RPM limitations must be considered for optimal vibration control. |
| Power Supply | 24V DC |
| Communication Interfaces | Ethernet, RS485 |
| Operating Temperature | -20°C to 60°C |
| Dimensions | 150 mm x 100 mm x 50 mm |
| Weight | 500 g |
| Manufacturer | GE |
| Model / SKU | IS200TVIBH2BBB |
✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery
