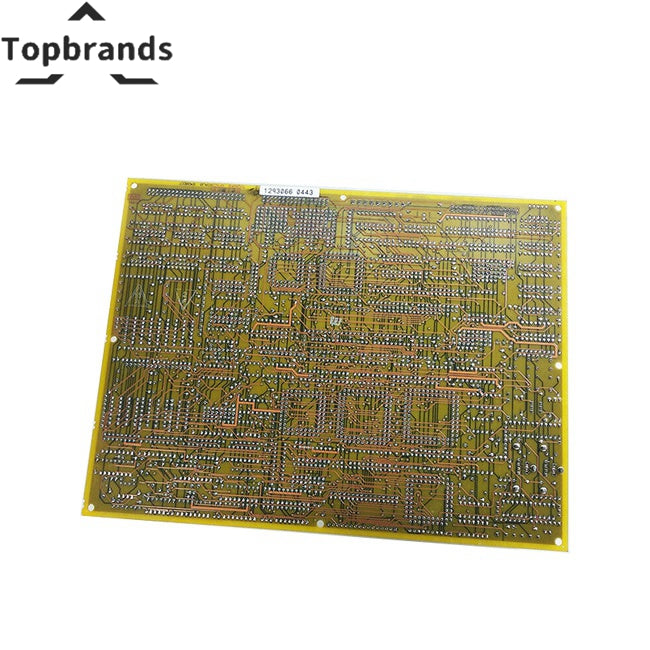

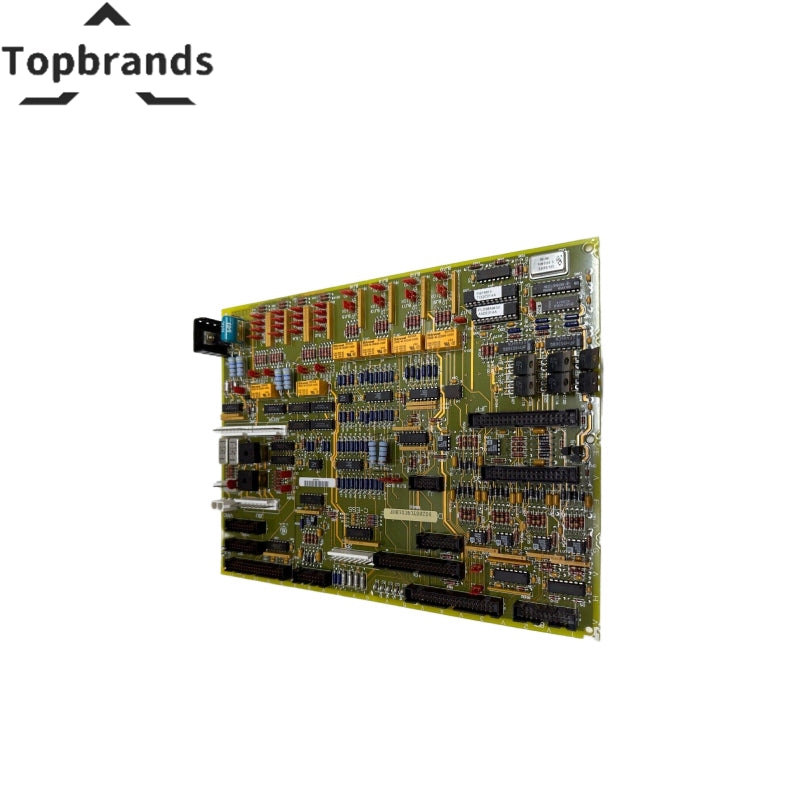

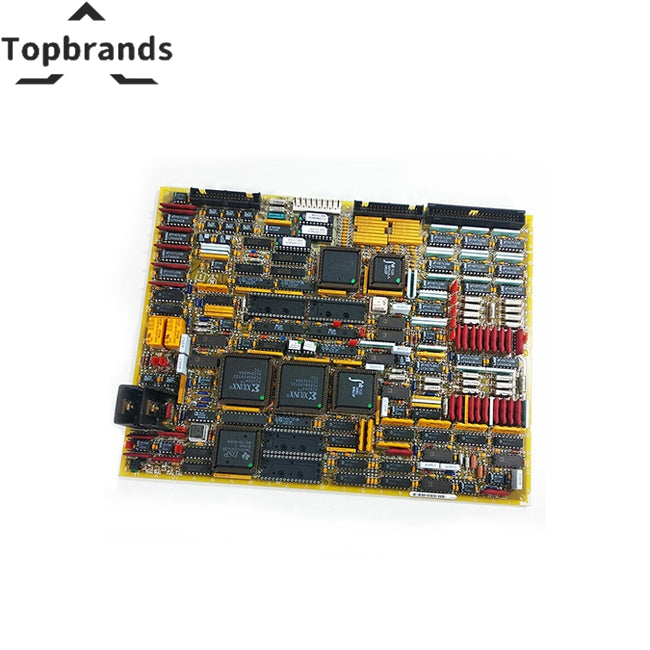

GE Mark V DS200TCQCG1BJF Analog IO Expander Board
The GE DS200TCQCG1BJF is a analog io expander board for GE platforms. 40-pin Connectors: 3 | 34-pin Connectors: 3 | 16-pin Connector: 1. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| Product Type | Analog IO Expander Board (RST Overflow Board) |
|---|---|
| Series | Mark V |
| 40-pin Connectors | 3 |
| 34-pin Connectors | 3 |
| 16-pin Connector | 1 |
| Total Jumpers | 24 |
| 1st Functional Revision | B |
| 2nd Functional Revision | J |
| Artwork Revision | F |
| Coating | Normal Coating |
| Weight | 0.46 kg |
| Analog IO Expander Board | is integral to the Mark V turbine control systems, offering expanded analog input/output functionality. It features multiple connectors and numerous jumpers for enhanced customization and flexibility. The board's design revisions ensure compatibility and reliable performance in various industrial applications. |
| Manufacturer | GE |
| Model / SKU | DS200TCQCG1BJF |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Failure Analysis: GE DS200TCQCG1BJF
Industrial modules degrade gradually. Warning signs: intermittent faults with temperature, increased error counts, flickering LEDs, new communication timeouts.
The GE Mark V DS200TCQCG1BJF Analog IO Expander Board: Product Type: Analog IO Expander Board (RST Overflow Board)
Series: Mark V
40-pin Connectors: 3
34-pin Connectors: 3
16-pin Connector: 1. Operating outside these ranges accelerates degradation.
Keep one tested spare for critical systems where downtime exceeds $5,000/hour. Swap during planned maintenance. We ship within 24 hours.
