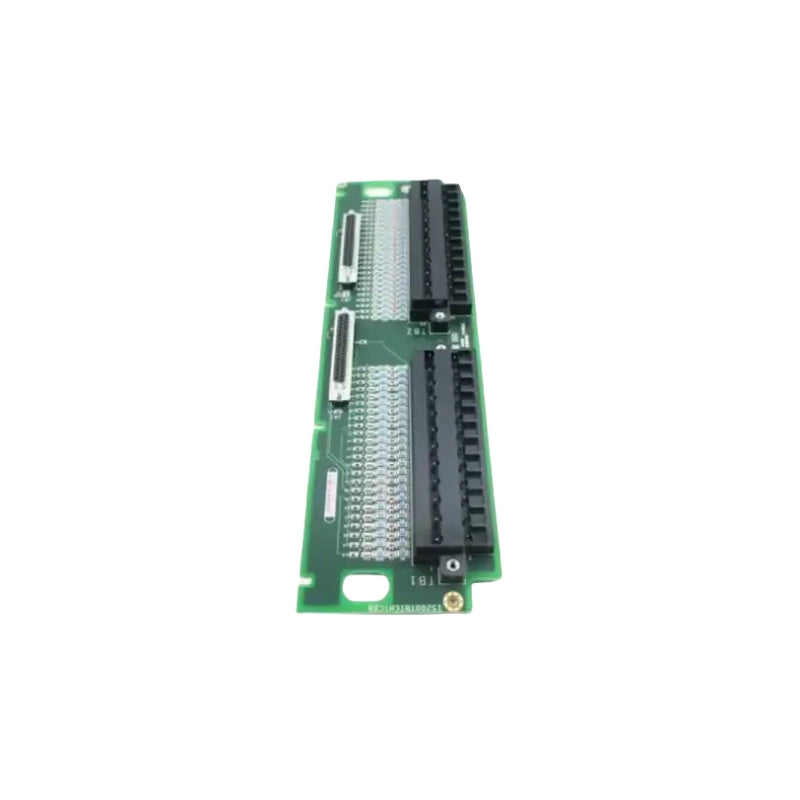

GE Mark VI Turbine Control System IS200TBAIH1CDC Analog Input Terminal Board
Automation does not wait. The GE IS200TBAIH1CDC is a analog input terminal board in our Shenzhen warehouse right now. Inputs and Outputs: Collects two outputs and ten inputs from the VAIC. | Input Span: 1-5 V dc. | Current Limited: Provides +24 volts DC per input.. Verified before packing. 12-month warranty.
Technical Specifications
| Analog Input Terminal Board | Interface for analog input signals. |
|---|---|
| Used with Analog Input Board (VAIC) | Works with the VAIC module. |
| Inputs and Outputs | Collects two outputs and ten inputs from the VAIC. |
| Input Span | 1-5 V dc. |
| Current Limited | Provides +24 volts DC per input. |
| Output Load | 500 Ohms for 4-20 mA and 50 Ohms for 200 mA. |
| Power Consumption | Less than 31 watts. |
| System Application Type | Supports Simplex or TMR configurations. |
| Dimensions | 100 mm (width) x 125 mm (height) x 25 mm (depth). |
| Weight | Approximately 0.25 kg. |
| Manufacturer | GE |
| Model / SKU | IS200TBAIH1CDC |
✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery
Detailed Product Information
Function & Specs
Handles Interface for analog input signals.. GE proprietary design.
Specifications
| Parameter | Value |
|---|---|
| Analog Input Terminal Board | Interface for analog input signals. |
| Used with Analog Input Board (VAIC) | Works with the VAIC module. |
| Inputs and Outputs | Collects two outputs and ten inputs from the VAIC. |
| Input Span | 1-5 V dc. |
| Current Limited | Provides +24 volts DC per input. |
| Output Load | 500 Ohms for 4-20 mA and 50 Ohms for 200 mA. |
| Power Consumption | Less than 31 watts. |
| System Application Type | Supports Simplex or TMR configurations. |
Genuine Parts
100% genuine GE. Serial number, full traceability. Beware of counterfeits.
Support
Engineers with 8+ years on GE. Video call help. Part cross-referencing. Response within 4 hours.
Real Inventory
Physically in Shenzhen. Not virtual. 10,000+ modules. Ships today.
Installation
Verify backplane voltage. ESD mandatory. Stop if it does not slide smoothly. Run diagnostics after install.
