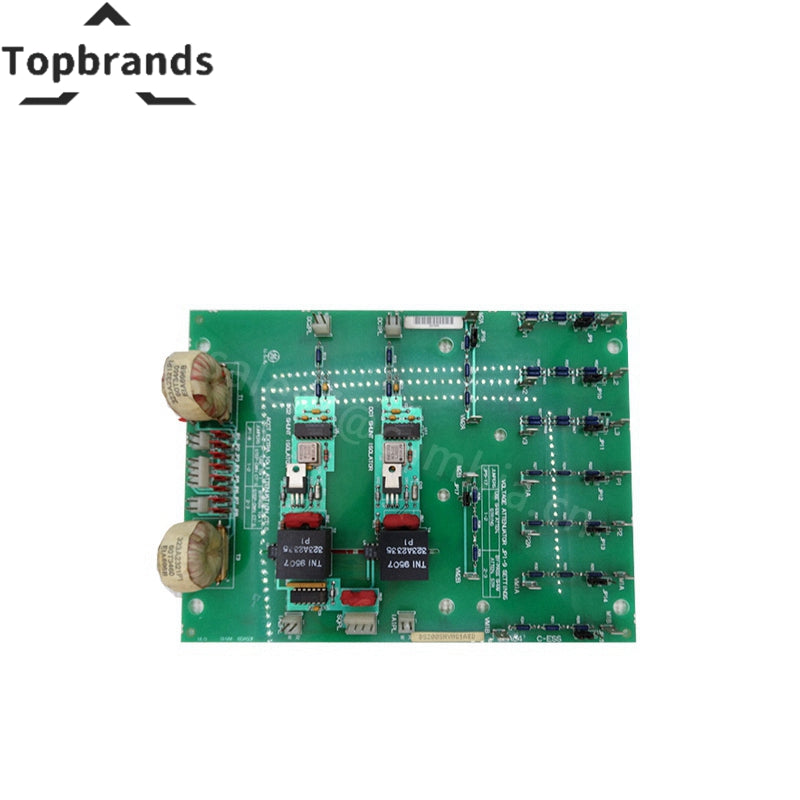

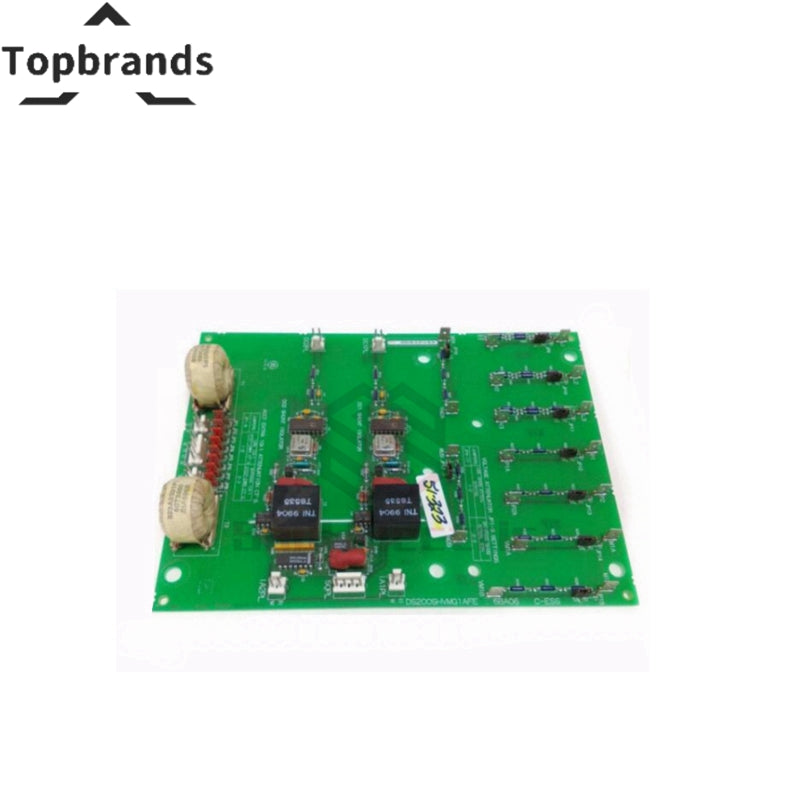

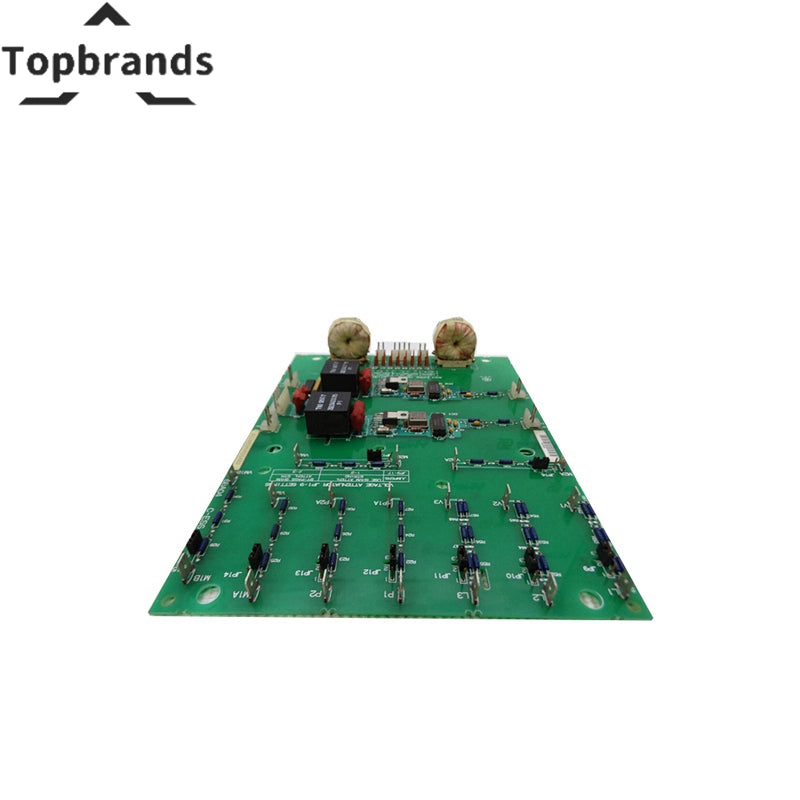

General Electric | DS200SHVMG1A | SCR High Voltage M-Frame Interface Board
The GE DS200SHVMG1A is a scr high voltage m-frame interface board for GE platforms. Instruction Manual: GEI-100174 | PCB Coating Style: Normal Coating | 1st Functional Revision: A. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Analysis: GE DS200SHVMG1A
The General Electric | DS200SHVMG1A | SCR High Voltage M-Frame Interface Board represents a specific configuration within the GE scr high voltage m-frame interface board family. Understanding its role helps with troubleshooting and sparing decisions.
GE platforms are modular — each scr high voltage m-frame interface board occupies a specific slot, communicating over a proprietary backplane or fieldbus. The DS200SHVMG1A handles a defined subset of I/O or processing. When replacing, the slot position and software configuration must match.
Measured specifications:
Functional Part Number: DS200SHVMG1A
Functional Description: SCR High Voltage M-Frame Interface Board
Instruction Manual: GEI-100174
PCB Coating Style: Normal Coating
1st Functional Revision: A
Recommendation: Keep at least one cold spare per unique module type. For high-availability systems, N+1 sparing. Contact us for volume pricing and staged delivery.
Technical Specifications
| Functional Part Number | DS200SHVMG1A |
|---|---|
| Functional Description | SCR High Voltage M-Frame Interface Board |
| Instruction Manual | GEI-100174 |
| PCB Coating Style | Normal Coating |
| 1st Functional Revision | A |
| Product Description | This board serves as an interface between the M-frame drive’s SCR bridge and the power supply board (DCFB or SDCI), as well as power connect cards (PCCA). It converts shunt signals ranging from -500 to 500 mV into differential frequency outputs between 0 and 500 kHz, which are then transmitted to other boards within the system. The DS200SHVMG1A is commonly employed in automated drive assemblies for wind, steam, and gas turbines. |
| Compatibility | Compatible with various industrial systems |
| Input Voltage | 24V DC |
| Output Voltage | 5V DC |
| Operating Temperature | -40°C to 85°C |
| Dimensions | 100mm × 50mm × 10mm |
| Interface Function | Bridges between the SCR bridge of the M-frame drive and power supply components, facilitating smooth operation and control. |
| Signal Conversion | Converts shunt signals to differential frequency outputs, crucial for accurate and efficient control of turbine systems. |
| Robust Design | Built to withstand industrial environments with a wide operating temperature range. |
| Compact Size | Dimensions optimize space utilization within turbine control assemblies. |
| Manufacturer | GE |
| Model / SKU | DS200SHVMG1A |
✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery
