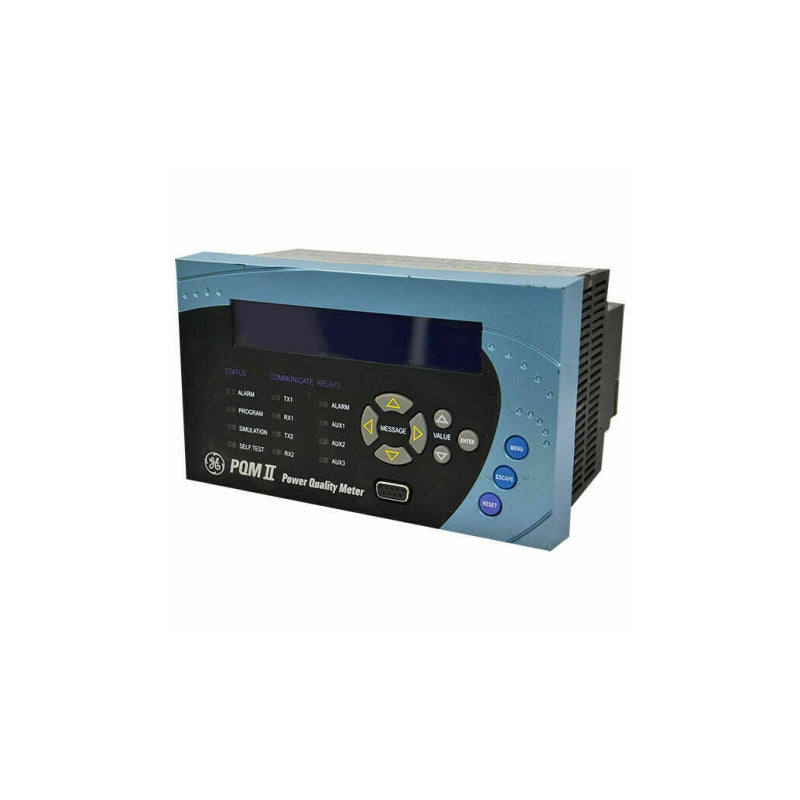

General Electric | PQMII-C-A | Power Quality Meter
The GE PQMII-C-A is a power quality meter for GE platforms. Enhanced Connectivity: : | Control and Alarm Capabilities: : | Voltage Disturbance Recording: :. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| Power Quality Metering | : |
|---|---|
| User-Friendly Interface | : |
| Enhanced Connectivity | : |
| Control and Alarm Capabilities | : |
| Voltage Disturbance Recording | : |
| AC Current | : |
| Conversion | True RMS, 64 samples/cycle |
| CT Input | 1 A and 5 A secondary |
| Burden | <0.1 VA |
| Overload | : |
| Full Scale | 150/600 VAC autoscaled |
| Frequency | Up to 32nd harmonic |
| Accuracy | ±1% of full scale |
| AC Voltage | : |
| VT Pri/Sec | Direct or 120 – 72,000 : 69 – 240 |
| Input Range | 20 – 600 VAC |
| Switch Inputs | : |
| Type | Dry contact |
| Resistance | 1,000 Ω max ON resistance |
| Voltage | 24 VDC @ 2 mA |
| Duration | 100 ms minimum |
| Analog Input | : |
| Range | 4 – 20 mA |
| Relay Output | Programmable 4 – 20 mA |
| Internal Burden Resistance | 250 Ω |
| Pulse Input | : |
| Max Inputs | 4 |
| Min Pulse Width | 150 ms |
| Min Off Time | 200 ms |
| Manufacturer | GE |
| Model / SKU | PQMII-C-A |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Power Supply Aging — Know the Signs
Electrolytic capacitors age, ripple increases, and one day the GE PQMII-C-A fails — usually at the worst possible moment. We test every unit on a live chassis under load: voltage regulation, ripple, efficiency. 48-hour burn-in at 55°C. If you are running a single-supply rack, order a spare. The cost is trivial compared to one unplanned outage. 12-month warranty. Ships within 24 hours.
Compatible Parts — Same System
These modules share the same system family as the PQMII-C-A. Commonly ordered together for complete rack builds or spare parts kits.
