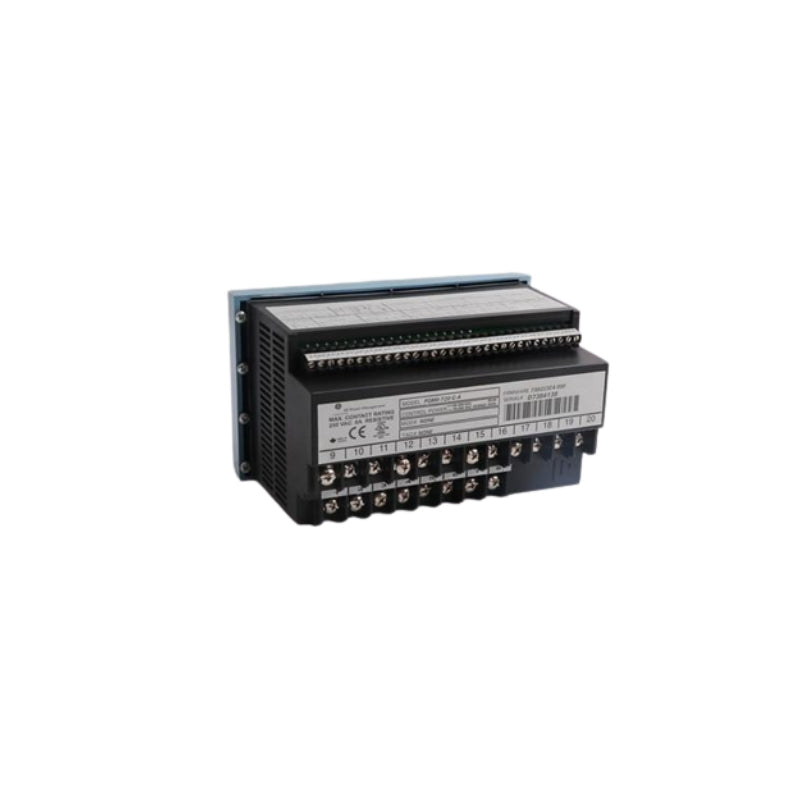

General Electric | PQMII-C | Power Quality Meter
The GE PQMII-C is a power quality meter for GE platforms. Pickup Level: 0.50 lag – 0.50 lead in steps of 0.01 | Dropout Level: 0.50 lag – 0.50 lead in steps of 0.01 | Time Delay: 0.5 – 600.0 sec in steps of 0.5 sec. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| Undervoltage Monitoring | : |
|---|---|
| Required Voltage | 20 V applied |
| Pickup Level | 0.50 lag – 0.50 lead in steps of 0.01 |
| Dropout Level | 0.50 lag – 0.50 lead in steps of 0.01 |
| Time Delay | 0.5 – 600.0 sec in steps of 0.5 sec |
| Phases | Programmable for any one, any two, or all three phases |
| Level Accuracy | ±0.02 Hz |
| Timing Accuracy | -0/+1 sec |
| Overvoltage Monitoring | : |
| Underfrequency Monitoring | : |
| Overfrequency Monitoring | : |
| Power Factor Monitoring | : |
| Control Power | : |
| Input | 90 – 300 VDC or 70 – 265 VAC, 50/60 Hz |
| Power | 10 VA nominal, 20 VA maximum |
| Holdup | 100 ms typical @ 120 VAC/VDC |
| Analog Outputs | : |
| Accuracy | ±1% of full scale reading |
| Output Options | : |
| Max Load | : |
| Max Output | : |
| Isolation | 50 V isolated, active source |
| Output Relays | : |
| Voltage | : |
| Make/Carry Continuous | 5 A |
| Make/Carry 0.2 Sec | 30 A |
| Break | Varies by voltage and load type |
| Resistive Load Ratings | : |
| Inductive Load Ratings | (Vr = 7 ms): |
| Configuration | FORM C NO/NC |
| Contact Material | Silver alloy |
| Pulse Output | : |
| Parameters | +ve kWh, -ve kWh, +ve kvarh, -ve kvarh, kVAh |
| Interval | 1 – 65000 in steps of 1 |
| Pulse Width | 100 – 2000 ms in steps of 10 ms |
| Min Pulse Interval | 500 ms |
| Shipping Box | : |
| Dimensions | 8 1/2" L x 6" H x 6" D (215 mm x 152 mm x 152 mm) |
| Ship Weight | 5 lbs (2.3 kg) |
| Manufacturer | GE |
| Model / SKU | PQMII-C |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
The Power Supply Rule: One Spare Per Rack
Power supplies fail more often than any other module type — not because they are poorly made, but because electrolytic capacitors have a finite life that shortens with temperature. The GE PQMII-C is the power supply for your GE rack. We test every unit on a live chassis under load: voltage regulation, ripple, efficiency, protection circuits verified. 48-hour burn-in at 55°C. Printed test report.
For critical systems, the cost of one spare power supply is negligible compared to one unplanned rack outage. 12-month warranty. Ships within 24 hours.
