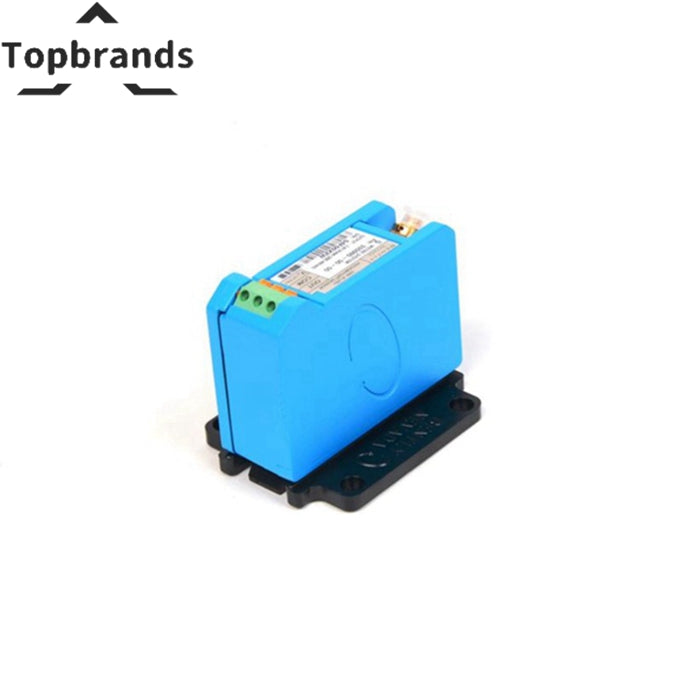

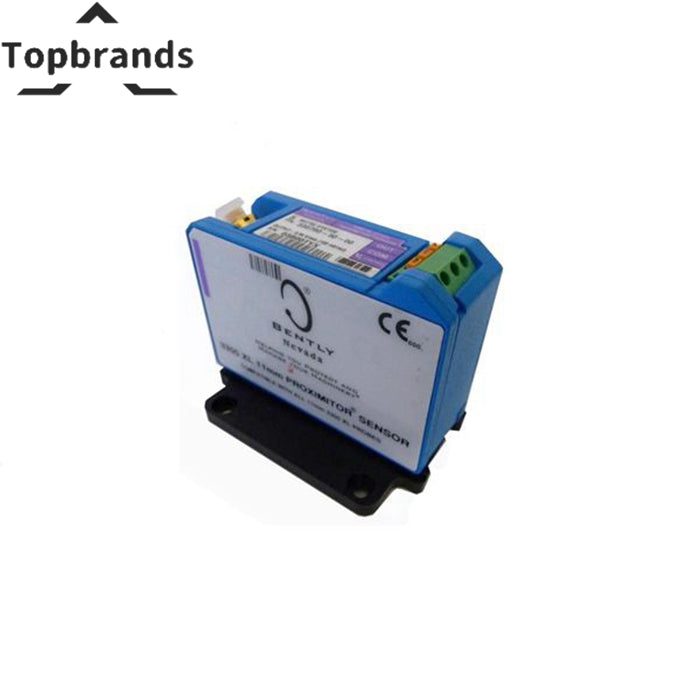

Genuine Bently Nevada 3300 XL 11 mm 330780-50-05 Proximity Sensor
The Bently Nevada 330780-50-05 is a proximity sensor for Bently Nevada industrial automation platforms. Type: Proximitor Sensor | System Length: 5.0 meters (16.4 feet) | Mounting Option: Panel mount. Factory-sealed, fully tested, 12-month warranty. Ships within 24 hours.
Technical Specifications
| 330780-50-05 | Proximitor Sensor is designed for non-contact measurement of shaft vibration and position. It is widely utilized in machinery protection systems to monitor the condition of rotating equipment, ensuring reliability and safety. |
|---|---|
| Model | 330780-50-05 |
| Type | Proximitor Sensor |
| System Length | 5.0 meters (16.4 feet) |
| Mounting Option | Panel mount |
| Input Voltage | -17.5Vdc to -26Vdc |
| Current Consumption | Maximum 12mA |
| Output Voltage | 3.94 V/mm (100 mV/mil) ±10% |
| Frequency Range | 0 to 8 kHz |
| Operating Temperature | -34°C to +177°C |
| Weight | 0.82 kg |
| High Accuracy | Delivers precise measurements of vibration and displacement. |
| Wide Frequency Range | Versatile for various industrial applications. |
| Rugged Construction | Built to endure harsh industrial environments. |
| Easy Installation | Panel mount design facilitates straightforward setup. |
| Compatibility | Compatible with Bently Nevada 3500/42M, 3500/50, and 3500/45 monitoring modules. |
| Manufacturer | Bently Nevada |
| Model / SKU | 330780-50-05 |
✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery
Detailed Product Information
🎯 Sensing Principle
The Bently Nevada 330780-50-05 measures machinery parameters using precision sensing technology. Non-contact measurement eliminates mechanical wear, providing consistent data over years of continuous operation.
Applications
- Vibration Monitoring: Bearing housing and shaft vibration per ISO 10816.
- Position Measurement: Axial thrust, differential expansion, rod drop.
- Speed Reference: Keyphasor pulse for synchronous sampling.
🔧 Specs & Installation
| Parameter | Value |
|---|---|
| 330780-50-05 | Proximitor Sensor is designed for non-contact measurement of shaft vibration and position. It is widely utilized in machinery protection systems to monitor the condition of rotating equipment, ensuring reliability and safety. |
| Model | 330780-50-05 |
| Type | Proximitor Sensor |
| System Length | 5.0 meters (16.4 feet) |
| Mounting Option | Panel mount |
| Input Voltage | -17.5Vdc to -26Vdc |
| Current Consumption | Maximum 12mA |
| Output Voltage | 3.94 V/mm (100 mV/mil) ±10% |
Installation
- Mount rigidly — bracket resonance corrupts readings.
- Use manufacturer-specified cables only.
- Verify gap voltage/gain settings before commissioning.
- Secure connectors against vibration loosening.
📦 Shipping
24h handling. Ships with calibration data. 12-month warranty covering sensing element failure, calibration drift, connector damage.
❓ FAQ
Q: Calibration interval?
A: Annual verification recommended. Typical drift <0.5%/year.
Q: Cable length critical?
A: Yes — cable is part of calibrated system. Match original exactly.
💰 Spare Strategy
Sensors are wear items. Cable fatigue is #1 failure mode after 5-8 years. Keep one spare per measurement location on critical machines.
