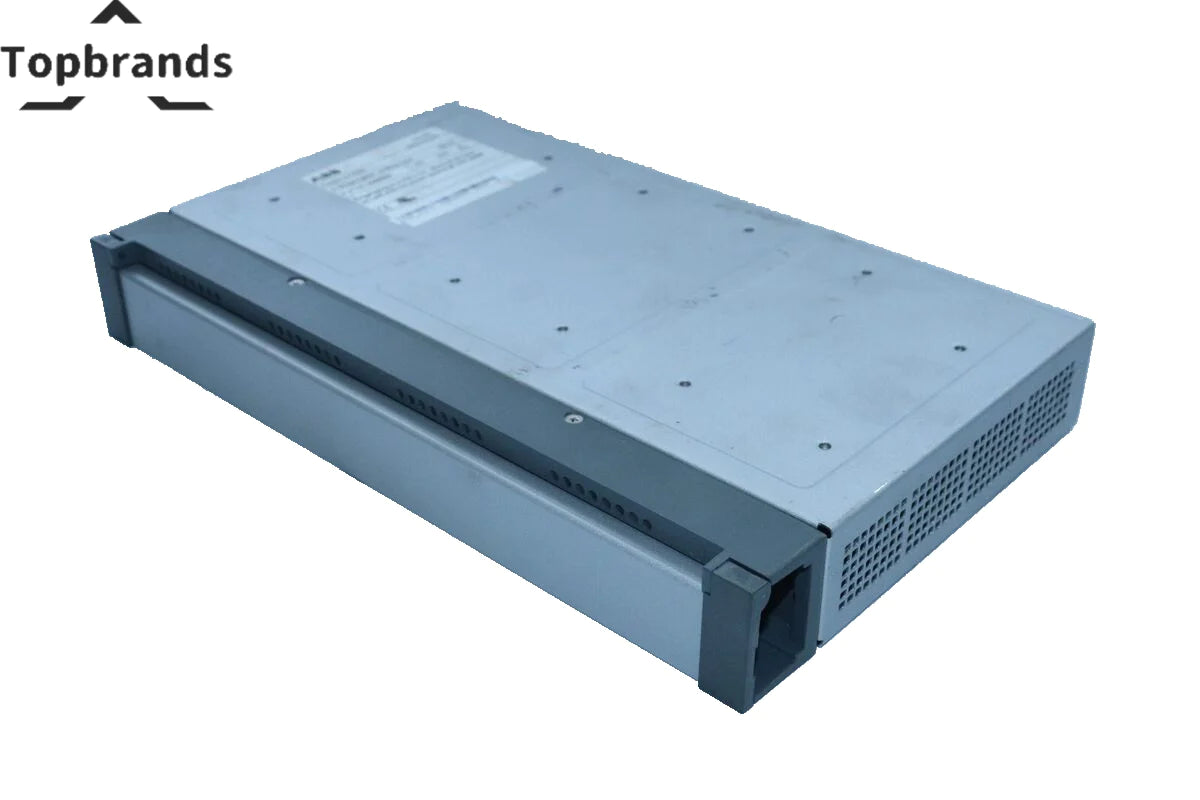

High Quality ABB H&B Freelance 2000 DAI 04 Analog Input Module
The ABB DAI-04 is one of those modules you do not think about until it fails. Designed as a analog input module for ABB platforms, it manages Product Type: Analog Input Module | System Compatibility: ABB AC500 PLC series; also supplied as a general ABB analog input module | Input Channels: 4 differential inputs. We keep these in physical stock and ship within 24 hours. Each unit includes a printed test report.
Technical Specifications
| DAI04 | is a |
|---|---|
| Model | DAI04 |
| Product Type | Analog Input Module |
| System Compatibility | ABB AC500 PLC series; also supplied as a general ABB analog input module |
| Input Channels | 4 differential inputs |
| Resolution | 15‑bit including sign bit |
| Accuracy | ±0.3% of range (typical) |
| Update Time | ~2 ms per channel |
| Power Supply | +24 VDC via backplane; typical consumption 1.8 W |
| Isolation | Channel‑to‑backplane optical isolation |
| Operating Temperature | –20 °C to +60 °C |
| Storage Temperature | –25 °C to +85 °C |
| Dimensions | Approx. 150 × 100 × 30 mm |
| Weight | 1.0 kg |
| Versatile Input Support | Accepts both voltage and current analog signals for broad application use |
| High‑Resolution Conversion | 15‑bit A/D ensures accurate engineering values for process control |
| Fast Response | ~2 ms per channel for real‑time monitoring of dynamic processes |
| Industrial‑Grade Isolation | Optical isolation protects the PLC and improves noise immunity |
| Compact Design | Slim module fits AC500 PM5xx base units and dense cabinet layouts |
| Reliable Operation | Designed for harsh industrial environments with wide temperature tolerance |
| Seamless Integration | Fully compatible with ABB AC500 automation platforms and engineering tools |
| Manufacturer | ABB |
| Model / SKU | DAI-04 |
✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery
Detailed Product Information
Real Inventory
The DAI-04 is physically in Shenzhen — not virtual, not drop-shipped, not sourced after order. 10,000+ modules across 20+ brands. What you see ships today.
How the DAI-04 Is Used
This analog input module operates in steel mills where extreme conditions punish every component. Our customers install these in ABB systems where reliability is non-negotiable.
Deployments
- Description The ABB DAI04 is a 4‑channel analog input module used in ABB AC500 and Freelance‑class automation systems.
- It acquires voltage or current signals from field transmitters and converts them into high‑resolution digital values for precise process control.
- Specifications Model: DAI04 Product Type: Analog Input Module System Compatibility: ABB AC500 PLC series; also supplied as a general ABB analog input module Input Channels: 4 differential inputs Signal Types: Voltage: ±10 V, 0–10 V Current: 0–20 mA, 4–20 mA (via internal resistor) Resolution: 15‑bit including sign bit Accuracy: ±0.
Running without a spare means one failure away from unplanned downtime. We ship within 24 hours.
Technical Support
Engineers average 8 years with ABB systems. Video call installation support. Configuration troubleshooting. Part number cross-referencing. Included with purchase. Response within 4 hours.
Installation Tips
Practical advice: (1) Verify backplane voltage before insertion. (2) ESD protection mandatory — static kills modules. (3) If it does not slide smoothly, stop — bent pins are #1 DOA cause. (4) Run diagnostics before returning to service.
