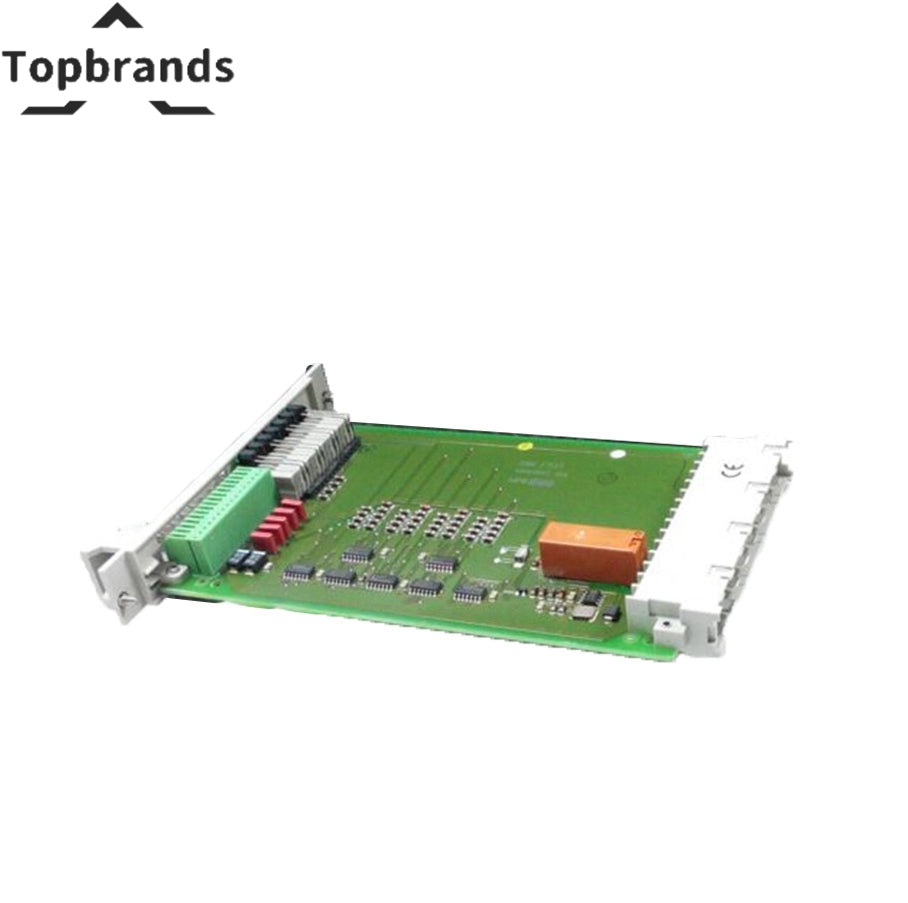

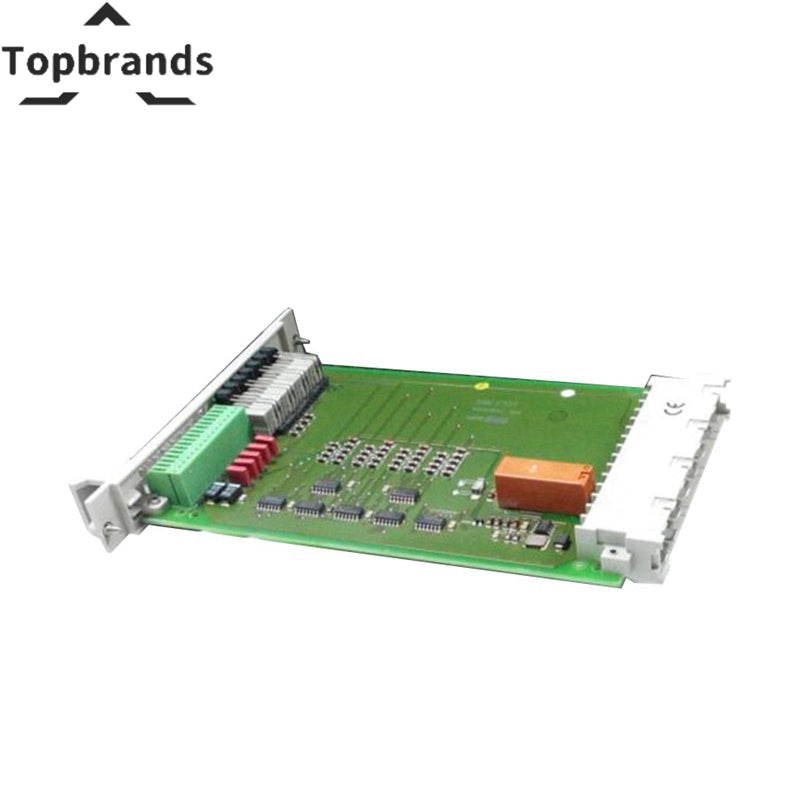

HIMA | F7133 | 4-fold Power Distribution | Brand New | 1 Year Warranty
Downtime is expensive. The F7133 4-fold power distribution pays for itself the first time you need it. Loadability of the Relay Contacts: 30 V/4 A (continuous load) | Residual Voltage in Case of Fuse Tripped: 0 V | Residual Current in Case of Fuse Tripped: 0 mA. Factory-new, bench-tested, 12-month replacement warranty.
Technical Specifications
| Fuses | Max. 4 A slow blow |
|---|---|
| Switching Time | Approximately 100 ms (relay) |
| Loadability of the Relay Contacts | 30 V/4 A (continuous load) |
| Residual Voltage in Case of Fuse Tripped | 0 V |
| Residual Current in Case of Fuse Tripped | 0 mA |
| Residual Voltage in Case of Missing Supply | Max. 3 V |
| Residual Current in Case of Missing Supply | < 1 mA |
| Space Requirement | 4 TE |
| Operating Data | 24 V DC: 60 mA |
| Fuse Protection | The module features 4 miniature fuses for line protection, each associated with an LED for status indication. |
| Fuse Monitoring | Fuses are monitored through an evaluation logic, and the state of each circuit is indicated by the corresponding LED. |
| Relay Operation | If all fuses are in order, the relay contact d22/z24 is closed. In case of an unequipped or faulty fuse, the relay will be de-energized. |
| Size | 21*13*3cm |
| Weight | 0.2kg |
| Manufacturer | HIMA |
| Model / SKU | F7133 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Why the HIMA F7133 Matters for Your Operation
In oil and gas, every component in your control system has a specific job — and when one fails, the ripple effects can shut down an entire production line. The HIMA F7133 is a 4-fold power distribution that keeps your refinery process control and pipeline compressor stations running without interruption.
Here is what this module actually does. fuses: Max. 4 A slow blow; switching time: Approximately 100 ms (relay); loadability of the relay contacts: 30 V/4 A (continuous load); residual voltage in case of fuse tripped: 0 V. These are not generic specifications — they determine whether this module will work in your specific HIMA system. We have seen too many cases where a maintenance team ordered a replacement only to find it was the wrong revision or configuration. That is why we test every F7133 on a live HIMA rack before shipping — full signal injection across every channel, not just a visual check.
Installation matters too. The most common cause of DOA reports is not a defective module — it is bent backplane pins from forcing a module in at the wrong angle. Take your time lining up the guides. Apply even pressure. If it does not slide in smoothly, stop and check the alignment. Always wear a grounded wrist strap — static discharge from removing a fleece jacket in a dry refinery control room can exceed 15,000 volts, destroying sensitive input protection diodes instantly.
Think about your sparing strategy. A single HIMA F7133 costs a fraction of what one hour of unplanned downtime costs in oil and gas. We ship replacements within 24 hours from Shenzhen — but even 24 hours is too long if you are losing production. For critical applications, keep one cold spare on your shelf.
