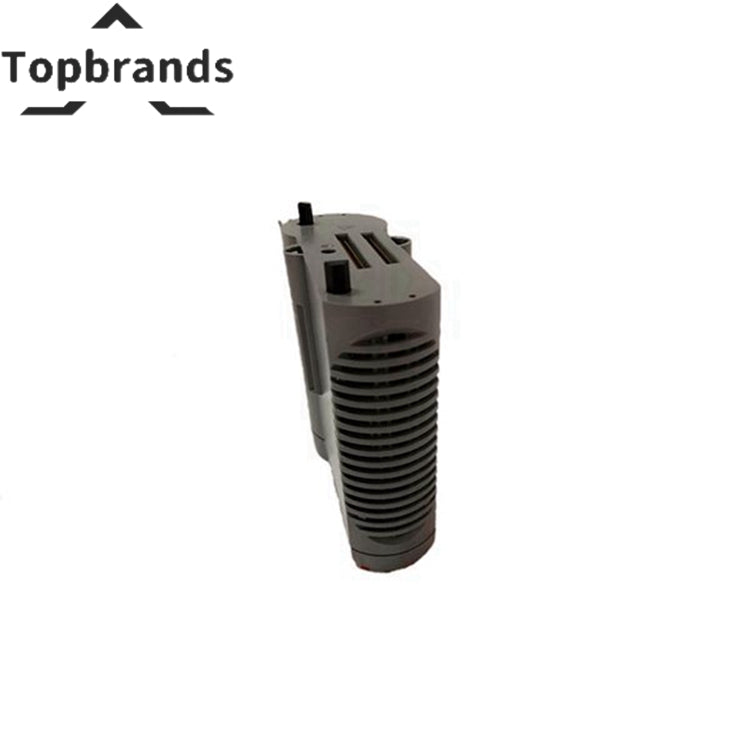

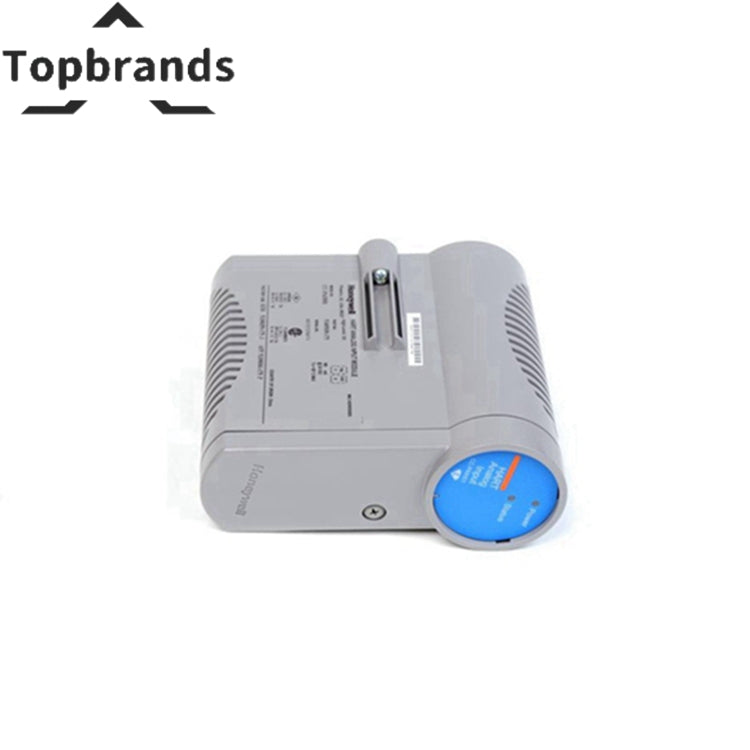

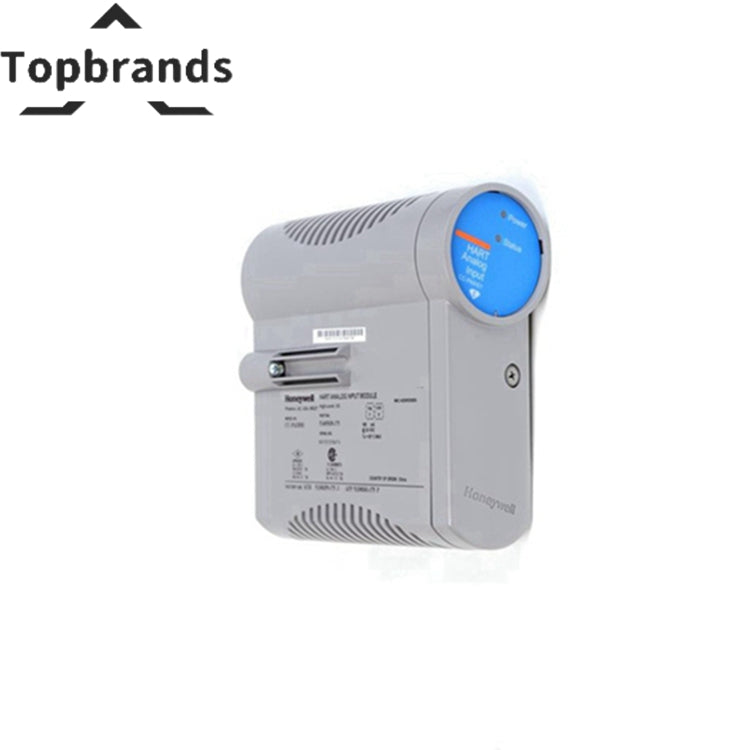

Honeywell 8C-PAIH54 51307070-275 Analog Input Module
A analog input module for Honeywell systems — 8C-PAIH54-51307070-275 handles Part Number: 51307070-275 | Module Type: Analog Input | Channels: 16 single-ended inputs. Factory-sealed, tested on live rack, 48-hour burn-in. Ships today from Shenzhen. 12-month warranty.
Technical Specifications
| 8C-PAIH54 (51307070-275) | is a 16-channel analog input module designed for the Experion PKS Series 8 distributed control system. It converts analog signals from field instruments into digital data for precise process control. |
|---|---|
| Model | 8C-PAIH54 |
| Part Number | 51307070-275 |
| Module Type | Analog Input |
| Channels | 16 single-ended inputs |
| Signal Types | 4–20 mA, 0–10 V, RTD, thermocouple |
| Power Supply | 24 VDC |
| Dimensions | 220 mm × 120 mm |
| Weight | Approx. 0.3 kg |
| Mounting | Series 8 chassis |
| Operating Temperature | –40°C to +70°C |
| Country of Origin | USA |
| Warranty | 12 months |
| High Accuracy | Provides precise signal conversion for critical industrial applications. |
| Multi-Sensor Support | Compatible with various analog sensors including temperature, pressure, and flow transmitters. |
| Noise Rejection | Excellent common-mode rejection for stable signal acquisition in noisy environments. |
| Hot-Swappable | Enables module replacement without system shutdown, minimizing downtime. |
| Modular Integration | Seamlessly fits into Honeywell Series 8 I/O architecture. |
| Industrial Durability | Coated electronics for enhanced protection in harsh conditions. |
| Lifecycle Support | Backed by Honeywell’s long-term product availability and service programs. |
| Manufacturer | Honeywell |
| Model / SKU | 8C-PAIH54-51307070-275 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Why the Honeywell 8C-PAIH54-51307070-275 Matters for Your Operation
In power generation, every component in your control system has a specific job — and when one fails, the ripple effects can shut down an entire production line. The Honeywell 8C-PAIH54-51307070-275 is a analog input module that keeps your gas turbine control systems and steam turbine monitoring running without interruption.
Here is what this module actually does. model: 8C-PAIH54; part number: 51307070-275; module type: Analog Input; channels: 16 single-ended inputs. These are not generic specifications — they determine whether this module will work in your specific Honeywell system. We have seen too many cases where a maintenance team ordered a replacement only to find it was the wrong revision or configuration. That is why we test every 8C-PAIH54-51307070-275 on a live Honeywell rack before shipping — full signal injection across every channel, not just a visual check.
Installation matters too. The most common cause of DOA reports is not a defective module — it is bent backplane pins from forcing a module in at the wrong angle. Take your time lining up the guides. Apply even pressure. If it does not slide in smoothly, stop and check the alignment. Always wear a grounded wrist strap — static discharge from removing a fleece jacket in a dry turbine hall can exceed 15,000 volts, destroying sensitive input protection diodes instantly.
Think about your sparing strategy. A single Honeywell 8C-PAIH54-51307070-275 costs a fraction of what one hour of unplanned downtime costs in power generation. We ship replacements within 24 hours from Shenzhen — but even 24 hours is too long if you are losing production. For critical applications, keep one cold spare on your shelf.
