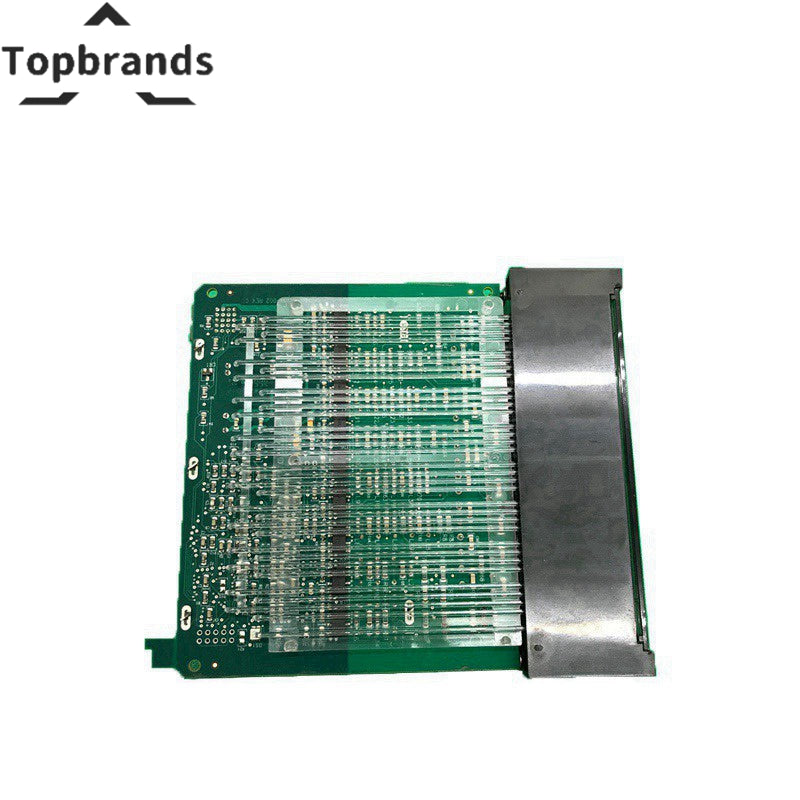

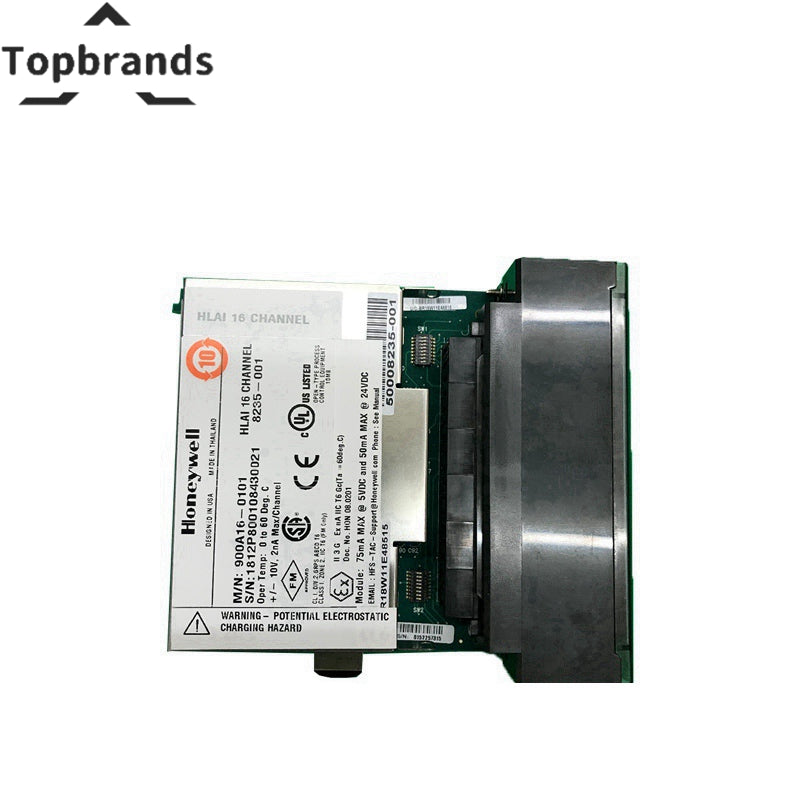

Honeywell 900A16-0001 16-channel Analog Input Module
The Honeywell 900A16-0001 is a analog input module for Honeywell industrial automation platforms. Input Channels: 16 isolated analog inputs | Signal Type: 4–20 mA DC (standard), configurable ranges | Input Resistance: Typically 250 ohms. Factory-sealed, fully tested, 12-month warranty. Ships within 24 hours.
Technical Specifications
| 900A16-0001 | is a high-performance 16-channel analog input module engineered for industrial process control. It integrates seamlessly with Honeywell Experion PKS systems to deliver precise signal acquisition from field instruments. |
|---|---|
| Model Number | 900A16-0001 |
| Input Channels | 16 isolated analog inputs |
| Signal Type | 4–20 mA DC (standard), configurable ranges |
| Input Resistance | Typically 250 ohms |
| Resolution | 16-bit |
| Accuracy | ±25% of span at 0.1°C |
| Scan Rate | Configurable, typically 10 ms/channel |
| Isolation | Channel-to-channel and channel-to-bus |
| Power Supply | 24 VDC nominal |
| Diagnostics | Signal quality, open-circuit detection |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Dimensions | 137 × 35.6 mm |
| Weight | 0.397 kg |
| Mounting | DIN rail or panel |
| Multi-Signal Support | Handles diverse analog inputs from transmitters, sensors, and meters. |
| High Precision | 16-bit resolution ensures accurate signal conversion. |
| Fast Response | Optimized scan rate for real-time control. |
| Robust Isolation | Enhances system safety and signal integrity. |
| Integrated Diagnostics | Enables proactive fault detection and maintenance. |
| Compact Design | Space-efficient for dense I/O configurations. |
| System Compatibility | Fully compatible with Honeywell Experion PKS architecture. |
| Manufacturer | Honeywell |
| Model / SKU | 900A16-0001 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
The 900A16-0001: Real-World Reliability
It is always the same story: 2 AM, the control system alarms, and the spare parts cabinet is empty. The Honeywell 900A16-0001 — a analog input module — is the component that failed. Now you are calling suppliers, hoping someone has stock and can ship today.
That is the scenario we built PLC Parts Direct to solve. We stock the 900A16-0001 in our Shenzhen warehouse — physically, not virtually. When you order, our team picks it from the shelf, verifies the serial number against the test report, packs it in anti-static packaging, and hands it to DHL. You get a tracking number, not a processing status that drags on for weeks.
What you are getting: model number: 900A16-0001; input channels: 16 isolated analog inputs; signal type: 4–20 mA DC (standard), configurable ranges; input resistance: Typically 250 ohms. Every unit undergoes multi-point functional verification and 48-hour burn-in at 55°C before shipping. A printed test report is included. For offshore applications where reliability is everything, we recommend keeping one cold spare of each critical module type. The cost of the spare is negligible compared to the cost of unplanned downtime.
Compatible Parts — Same System
These modules share the same system family as the 900A16-0001. Commonly ordered together for complete rack builds or spare parts kits.
