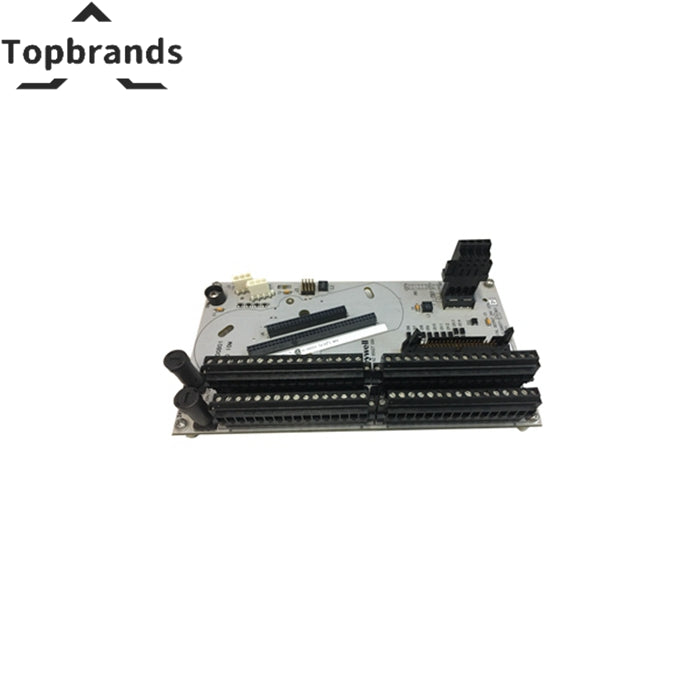

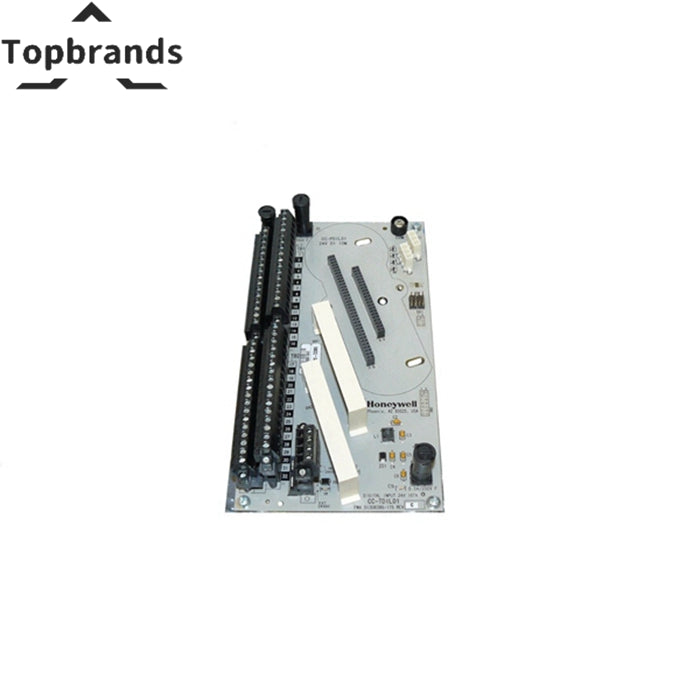

Honeywell | CC-TDIL01 51308386-175 | Digital Input Module In Stock
Industrial automation does not wait for lead times. The Honeywell CC-TDIL01-51308386-175 is a digital input module that we keep on the shelf in Shenzhen — real inventory, ready to ship. Part Number: 51308386-175 | Input Type: Digital, 24VDC | Channel Count: Typically 16 or 32 (varies by configuration). Every unit undergoes functional verification before packing. 12-month warranty included.
Technical Specifications
| CC-TDIL01 (51308386-175) | is a rugged digital input module designed for use in Honeywell’s Series C control systems. It captures discrete 24VDC signals from field devices with high reliability and isolation. |
|---|---|
| Model Number | CC-TDIL01 |
| Part Number | 51308386-175 |
| Input Type | Digital, 24VDC |
| Channel Count | Typically 16 or 32 (varies by configuration) |
| Input Voltage Range | 18–30 VDC |
| Isolation | Channel-to-channel and channel-to-system |
| Dimensions | Approx. 4.7 × 2.7 × 1.2 inches |
| Weight | ~0.2 lbs |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Mounting | Compatible with Honeywell IOTA racks |
| Warranty | 12 months |
| Condition | Brand new |
| Wide Voltage Tolerance | Accepts 18–30 VDC for flexible field device compatibility. |
| High Isolation | Protects system integrity and prevents signal interference. |
| Compact Form Factor | Ideal for dense control panel installations. |
| Extreme Temperature Range | Operates reliably in harsh industrial environments. |
| Shock and Vibration Resistant | Built for rugged field conditions. |
| System Integration | Seamlessly connects with Honeywell Series C and IOTA platforms. |
| Manufacturer | Honeywell |
| Model / SKU | CC-TDIL01-51308386-175 |
✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery
Detailed Product Information
How the CC-TDIL01-51308386-175 Is Used in the Field
This digital input module sees service in chemical processing facilities where process safety depends on reliable automation hardware. Our customers typically install these in Honeywell systems where reliability is non-negotiable.
Real Deployments
- Description The Honeywell CC-TDIL01 (51308386-175) is a rugged digital input module designed for use in Honeywell’s Series C control systems.
- It captures discrete 24VDC signals from field devices with high reliability and isolation.
- Specifications Model Number : CC-TDIL01 Part Number : 51308386-175 Input Type : Digital, 24VDC Channel Count : Typically 16 or 32 (varies by configuration) Input Voltage Range : 18–30 VDC Isolation : Channel-to-channel and channel-to-system Dimensions : Approx.
If you are running a single unit with no spare, you are one component failure away from an unplanned outage. We ship replacements within 24 hours.
What This Module Actually Does
The Honeywell CC-TDIL01-51308386-175 handles is a rugged digital input module designed for use in Honeywell’s Series C control systems. It captures discrete 24VDC signals from field devices with high reliability and isolation. in your control architecture. It is engineered specifically for Honeywell platforms — proprietary connectors, firmware, and signal conditioning that third-party clones cannot replicate.
Verified Specifications
| Parameter | Value |
|---|---|
| CC-TDIL01 (51308386-175) | is a rugged digital input module designed for use in Honeywell’s Series C control systems. It captures discrete 24VDC signals from field devices with high reliability and isolation. |
| Model Number | CC-TDIL01 |
| Part Number | 51308386-175 |
| Input Type | Digital, 24VDC |
| Channel Count | Typically 16 or 32 (varies by configuration) |
| Input Voltage Range | 18–30 VDC |
How to Verify Genuine Parts
Every Honeywell CC-TDIL01-51308386-175 is 100% genuine Honeywell — not a clone, not a compatible knockoff. Each unit carries the manufacturer label and unique serial number. We source from authorized channels with full traceability. The market has counterfeits that fail within weeks — if a deal seems too good, it probably is.
Installation: What the Manual Does Not Tell You
After handling hundreds of these modules, here is practical advice: (1) Verify backplane voltage before insertion — a shorted backplane destroys modules instantly. (2) ESD protection is not optional — static from removing a fleece jacket in a dry control room can kill a module. (3) If it does not slide in smoothly, stop — bent backplane pins are the #1 DOA cause. (4) Run diagnostics before returning the system to service.
