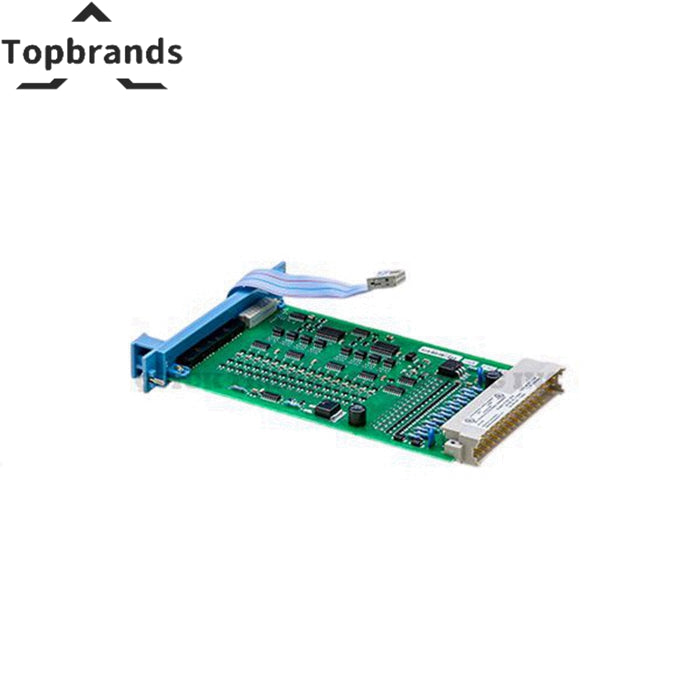

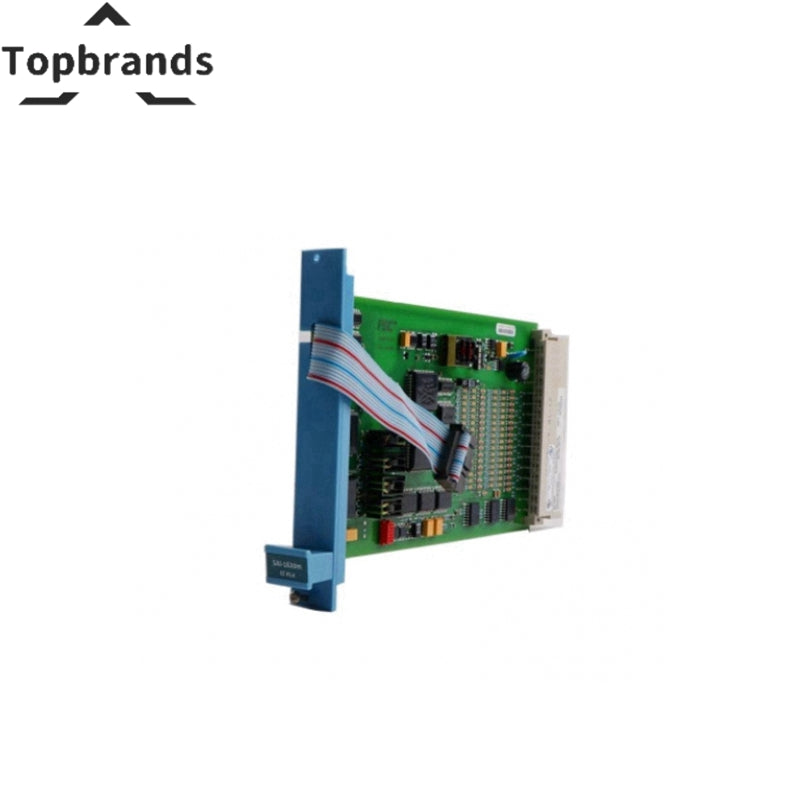

Honeywell FC-SAO-0220M Fail-safe Analog Output Module

Honeywell FC-SAO-0220M Fail-safe Analog Output Module view 1

Honeywell

Honeywell FC-SAO-0220M Fail-safe Analog Output Module

Name: Honeywell FC-SAO-0220M Fail-safe Analog Output Module
Brand: Honeywell
SKU: FC-SAO-0220M
Availability: InStock

SKU: FC-SAO-0220M In Stock

Fail-safe Analog Output ModuleFSC seriesHoneywell

The Honeywell FC-SAO-0220M — a fail-safe analog output module you will wish you had on the shelf when the old one fails. for Honeywell platforms. Physical stock, not virtual inventory. Ships within 24 hours.

Technical Specifications

Manufacturer	Honeywell
Model / SKU	FC-SAO-0220M

📩 Request a Quote — FC-SAO-0220M

✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery

Category: honeywell fsc series

Detailed Product Information

Function & Specs

Handles Honeywell. Honeywell proprietary design.

Specifications

Parameter	Value
Manufacturer	Honeywell
Model / SKU	FC-SAO-0220M

Where It Operates

Deployed in water treatment on Honeywell systems.

Examples

Specification Manufacturer: Honeywell Product Type: Analog Output Module Type Number: FC-SAO-0220m General Approvals: CE, TÜV, UL, CSA, FM Space Requirements: 4 TE, 3 HE (= 4 HP, 3U) Power Requirements 5 VDC: 30 mA 24 VDC: 65 mA + 30 mA for each active output Output Specifications Number of Output Channels: 2 (galvanically isolated from supply voltage; 0V1 and 0V2 interconnected) Output Type: Active or passive Output Range: 0–20 mA / 4–20 mA D/A Converter: 12-bit Off Current: <0.
05 mA Maximum Load Capacitance: 100 nF Electrical Characteristics Active (Loop Powering): Maximum Loop Resistance: 600 Ω Maximum Output Voltage: 30 VDC Passive (External Powering): Maximum Voltage: 40 VDC Minimum Voltage Drop: ≤7.
5 mA Key Coding Module Code: Holes A9, C5 Chassis Code: Large pins A9, C.

No spare = one failure from downtime. Ships within 24 hours.

Support

Engineers with 8+ years on Honeywell. Video call help. Part cross-referencing. Response within 4 hours.
