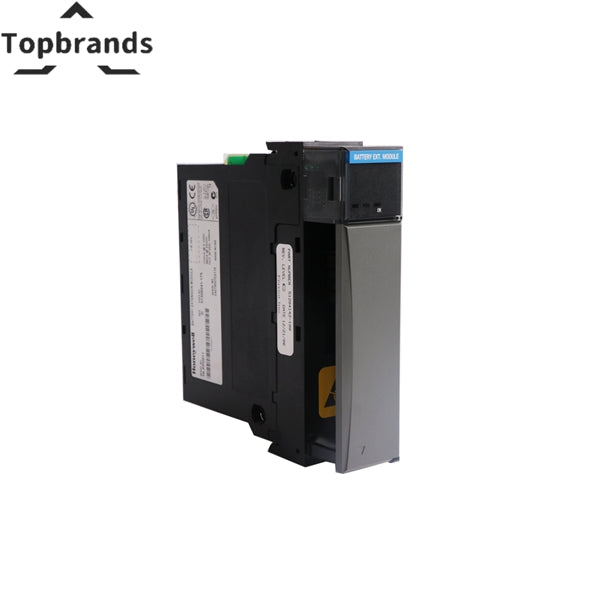

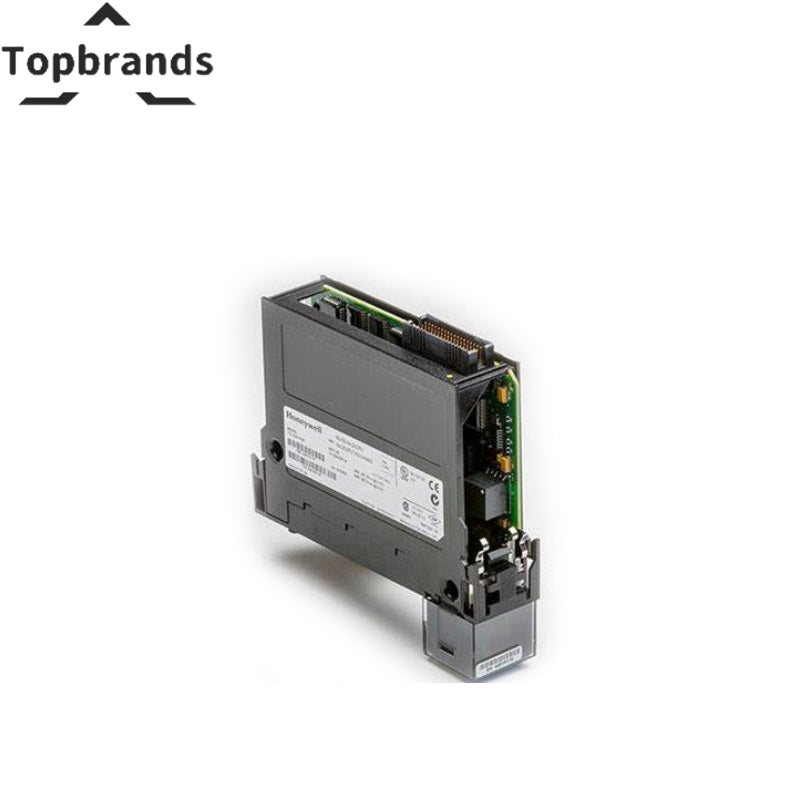

Honeywell TC-OAH061 Analog Output Module in Stock
A analog output module for Honeywell systems — the TC-OAH061 handles Manufacturer: Honeywell | Type: Analog Output Module | Channels: 6 galvanically isolated outputs. Factory-sealed, tested on live rack with 48-hour burn-in. Ships today from Shenzhen. 12-month warranty.
Technical Specifications
| TC-OAH061 | is a high-precision analog output module designed for distributed control systems. It delivers stable current signals across six isolated channels, ideal for process control and actuator interfacing. |
|---|---|
| Model | TC-OAH061 |
| Manufacturer | Honeywell |
| Type | Analog Output Module |
| Channels | 6 galvanically isolated outputs |
| Output Current Range | 0 to 21.0 mA |
| Current Resolution | 13 bits across 21 mA |
| Update Rate | 25 ms for all channels |
| Overvoltage Protection | 24 VAC/VDC continuous |
| RFI Immunity | <2.0% error at 10 V/m, 27–1000 MHz |
| Isolation Voltage (Channel-to-Channel) | 2546 V DC for 1 second |
| Isolation Voltage (User-to-System) | 2546 V DC for 1 second |
| Power Dissipation | 6.7 W max |
| Dimensions | 96 mm × 96 mm × 48 mm |
| Weight | 1.1 kg |
| Warranty | 12 months |
| Galvanic Isolation | Prevents cross-channel interference and enhances signal integrity. |
| High Resolution | 13-bit output ensures precise control over analog devices. |
| Fast Update Rate | 25 ms refresh across all channels for responsive control. |
| Robust Protection | Withstands continuous overvoltage and high EMI environments. |
| Industrial Grade | Built for demanding automation tasks with long-term reliability. |
| Flexible Integration | Compatible with Honeywell DCS platforms and third-party systems. |
| Model / SKU | TC-OAH061 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
The TC-OAH061: Real-World Reliability
It is always the same story: 2 AM, the control system alarms, and the spare parts cabinet is empty. The Honeywell TC-OAH061 — a analog output module — is the component that failed. Now you are calling suppliers, hoping someone has stock and can ship today.
That is the scenario we built PLC Parts Direct to solve. We stock the TC-OAH061 in our Shenzhen warehouse — physically, not virtually. When you order, our team picks it from the shelf, verifies the serial number against the test report, packs it in anti-static packaging, and hands it to DHL. You get a tracking number, not a processing status that drags on for weeks.
What you are getting: model: TC-OAH061; manufacturer: Honeywell; type: Analog Output Module; channels: 6 galvanically isolated outputs. Every unit undergoes multi-point functional verification and 48-hour burn-in at 55°C before shipping. A printed test report is included. For mining applications where reliability is everything, we recommend keeping one cold spare of each critical module type. The cost of the spare is negligible compared to the cost of unplanned downtime.
