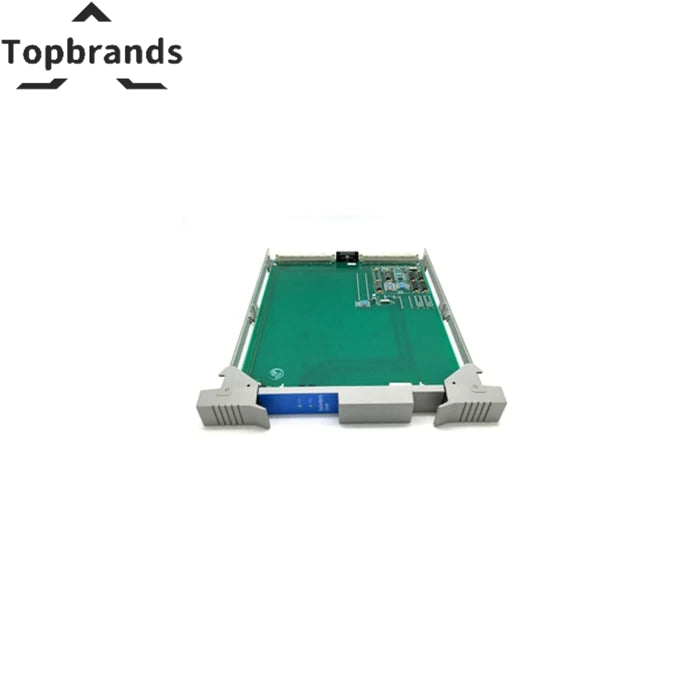

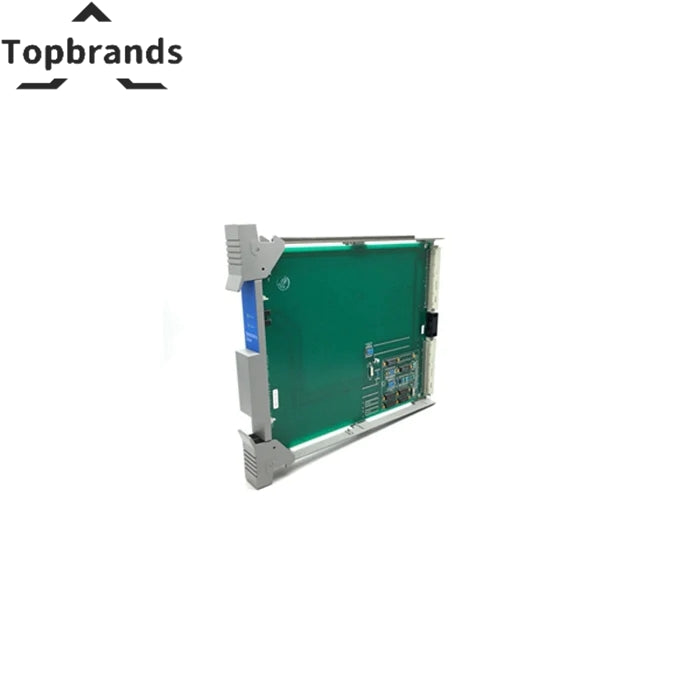

Honeywell UCN Series MC-PAOY22 80363969-150 Analog Output Module
Downtime is expensive. The MC-PAOY22-80363969-150 analog output module pays for itself the first time you need it. Part Number: 80363969-150 | Channels: 16 independent analog outputs | Output Signal Types: 0–10 VDC, 0–20 mA, 4–20 mA. Factory-new, bench-tested, 12-month replacement warranty.
Technical Specifications
| MC-PAOY22 (80363969-150) | is a high-performance analog output module used in Honeywell control platforms. It converts digital control signals into accurate analog outputs for process control applications, offering flexibility and reliability in demanding environments. |
|---|---|
| Module Type | Analog Output Module |
| Part Number | 80363969-150 |
| Channels | 16 independent analog outputs |
| Output Signal Types | 0–10 VDC, 0–20 mA, 4–20 mA |
| Accuracy | ±0.2% of full scale |
| Response Time | ≤ 50 ms |
| Power Supply | 24 VDC |
| Dimensions | 126 × 28 × 130 mm |
| Weight | 0.21 kg |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 0% to 95%, non-condensing |
| Mounting | DIN rail or panel-mounted |
| Protection Features | Overload, short-circuit, and open-circuit protection |
| Multi-Channel Output | Supports 16 analog outputs for complex control tasks |
| Flexible Signal Range | Configurable for voltage or current output per channel |
| High Precision | Ensures accurate signal delivery with minimal noise |
| Fast Response | Suitable for real-time control applications |
| Compact Design | Saves panel space and simplifies installation |
| Robust Protection | Built-in safeguards against electrical faults |
| System Compatibility | Seamlessly integrates with Honeywell control systems |
| Field Configurable | Easily adaptable to changing process requirements |
| Manufacturer | Honeywell |
| Model / SKU | MC-PAOY22-80363969-150 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Everything You Need to Know About the Honeywell MC-PAOY22-80363969-150
What is this module? The MC-PAOY22-80363969-150 is a analog output module for Honeywell automation systems. module type: Analog Output Module; part number: 80363969-150; channels: 16 independent analog outputs; output signal types: 0–10 VDC, 0–20 mA, 4–20 mA.
Is it genuine? Yes. Every Honeywell module we sell is 100% genuine — not a clone, not a compatible replacement. Manufacturer serial numbers and holographic labels are intact with full traceability.
How fast can I get it? We ship within 24 hours of confirmed payment from Shenzhen via DHL, FedEx, or UPS. Typical delivery is 3–5 business days worldwide. Customs documentation is included with every shipment.
What if it does not work? First, verify the module is installed in the correct chassis slot as configured in your system software. Slot mismatch is the #1 cause of DOA reports. If confirmed defective, we ship an advance replacement immediately under our 12-month warranty — before we even receive the returned unit.
Do I need to buy more than one? For critical power generation applications, we recommend keeping one cold spare. The carrying cost is negligible compared to even a few hours of downtime. Contact us for volume pricing on 5+ units.
