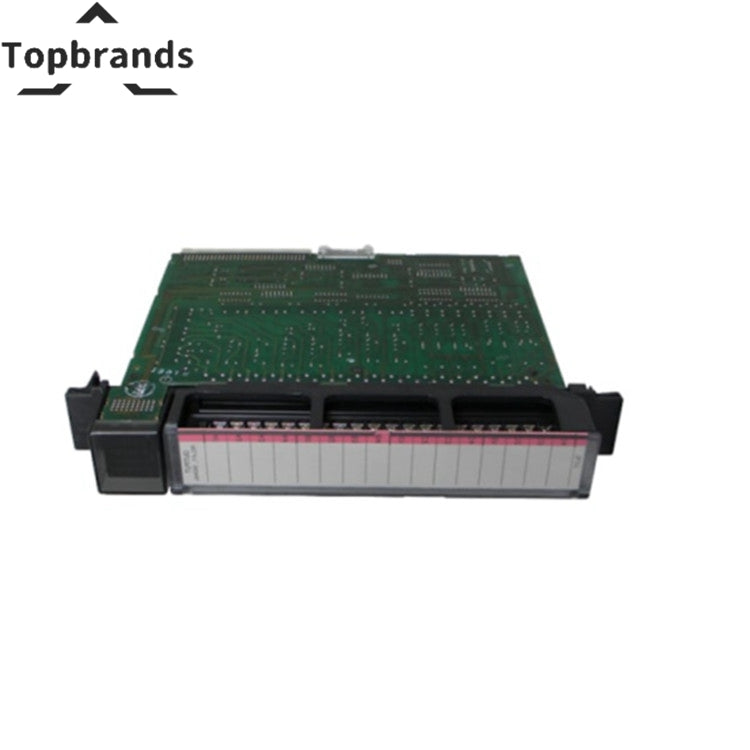

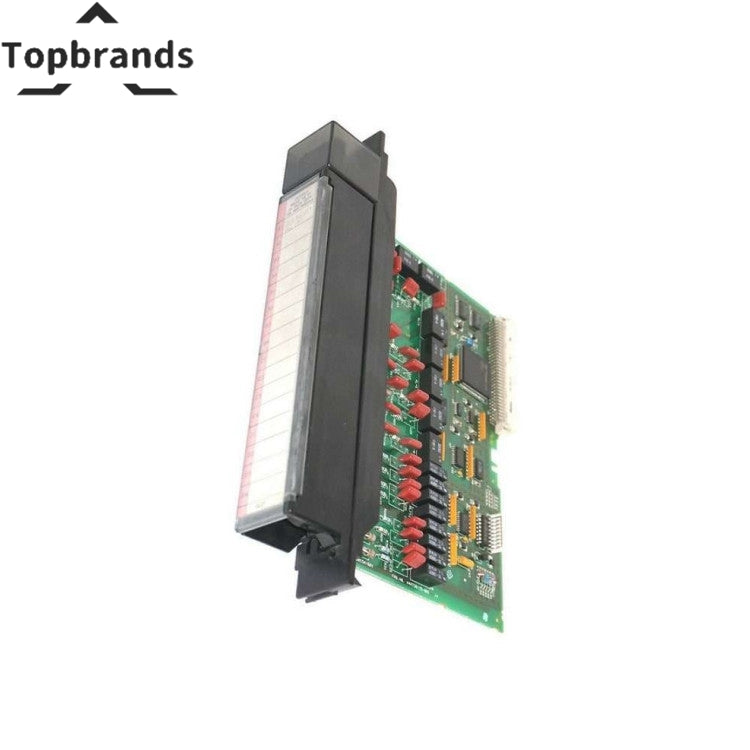

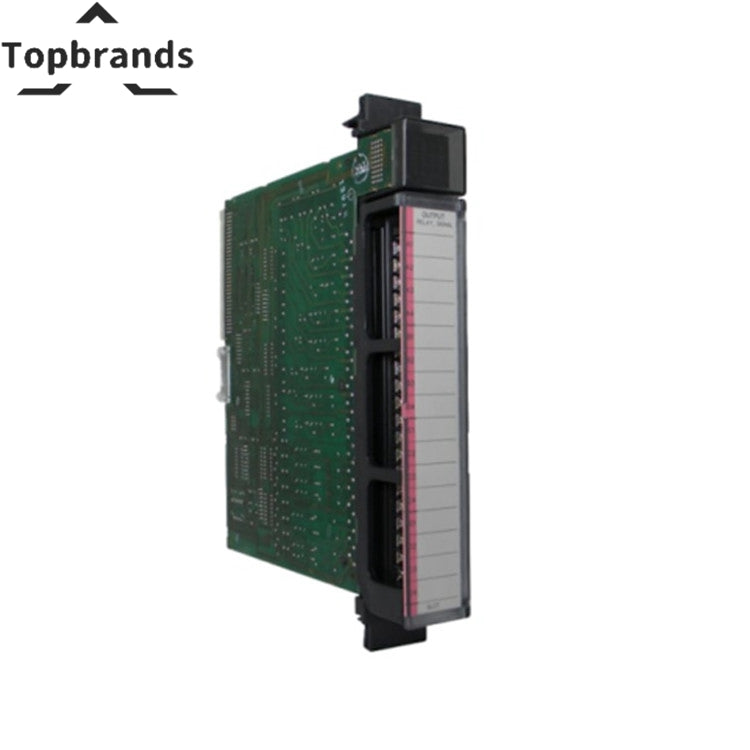

IC697MDL940 | GE Fanuc | Series 90-70 | Discrete Logic Output Module
The GE IC697MDL940 is a discrete logic output module for GE platforms. RC Snubber Suppression: RC snubbers are employed for each output, reducing voltage spikes and ensuring smooth operation of connected loads. | LED Indicators: Located at the top of the module, LED indicators provide clear ON-OFF status indication for each output point, aiding in diagnostics and troubleshooting. | Software Compatibility: Configured using MS-DOS or Windows-based programming software compatible with platforms like Windows 95 or Windows NT.. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| Relay Coil Energization | The module supplies power to energize relay coils, essential for switching operations. |
|---|---|
| Individual Fusing | Each output is individually fused, enhancing reliability and protecting against overcurrent conditions. |
| RC Snubber Suppression | RC snubbers are employed for each output, reducing voltage spikes and ensuring smooth operation of connected loads. |
| LED Indicators | Located at the top of the module, LED indicators provide clear ON-OFF status indication for each output point, aiding in diagnostics and troubleshooting. |
| Software Compatibility | Configured using MS-DOS or Windows-based programming software compatible with platforms like Windows 95 or Windows NT. |
| Communication Protocol | Configurable over an Ethernet connection using the TCP/IP protocol, facilitating remote programming and monitoring. |
| Compatible Devices | Supports a wide range of programming devices from personal computers (PCs) to older IBM XT and AT systems, as well as PS/2 computers. |
| Manufacturer | GE |
| Model / SKU | IC697MDL940 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Where the GE IC697MDL940 Fits
The IC697MDL940 | GE Fanuc | Series 90-70 | Discrete Logic Output Module serves as a discrete logic output module within the GE control architecture. GE's Mark VIe and Mark VI turbine control platforms are the brain of gas and steam turbine generators worldwide, built for the extreme vibration and temperature conditions of a turbine hall.
Key specs:
Relay Coil Energization: The module supplies power to energize relay coils, essential for switching operations.
Industrial modules are designed for 10-20 year service lives. When one eventually fails, having a tested replacement on hand is the difference between a planned swap and an emergency shutdown costing thousands per hour. Functional test, burn-in, anti-static packaging, worldwide shipping within 24 hours. 12-month warranty.
Compatible Parts — Same System
These modules share the same system family as the IC697MDL940. Commonly ordered together for complete rack builds or spare parts kits.
