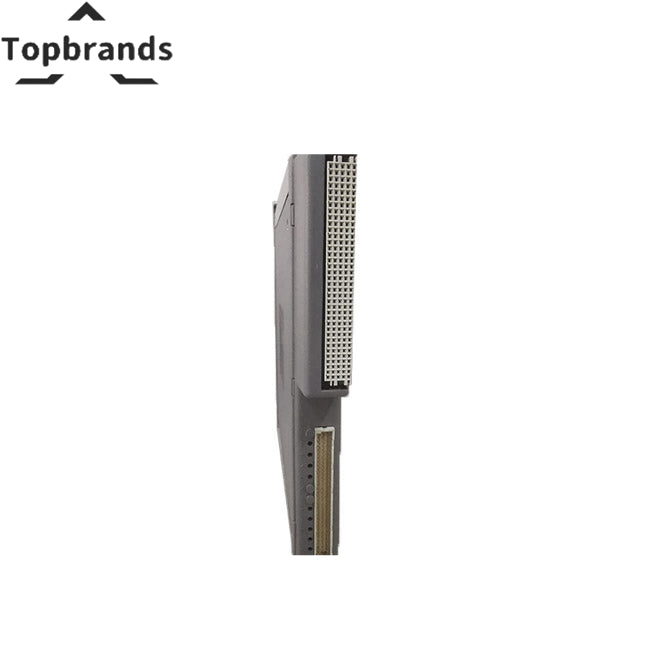

ICS Triplex T3431-IM Thermocouple Input Assembly 100% Brand New
The ICS Triplex T3431-IM is a thermocouple input assembly for ICS Triplex platforms. Thermocouple Units: Degrees Centigrade or degrees Fahrenheit | Thermocouple Resolution: Tenths or units | Thermocouple Burnout: Downscale driven. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| Safetybus Power | 1.8 load units (input module) |
|---|---|
| Number of Inputs | 24 differential |
| Thermocouple Units | Degrees Centigrade or degrees Fahrenheit |
| Thermocouple Resolution | Tenths or units |
| Thermocouple Burnout | Downscale driven |
| Differential Input Resistance | 2M ohms (typical) |
| Input to Chassis Resistance | 1.1M ohm (typical) |
| Bias Current | 100 nA (typical) |
| Common Mode Operating Range | 7 volts, maximum w/r chassis ground |
| Input Overvoltage Protection | 120 volts RMS between any two terminals |
| Response Time (Total) | - Step Input: 50 msec maximum (0 to 99%) - Ramp Input: 25 msec maximum tracking delay for input rates less than 8°C/ms (15°F) |
| Noise Rejection (Conducted) | - Normal Mode: 70 dB minimum at 60/120 Hz or 50 Hz (jumper selectable) - Common Mode: 100 dB minimum at 50/60 Hz, 60 dB minimum elsewhere |
| Noise Rejection (Radiated) | - Walkie-talkie: 0.1% (range) maximum error for 1 watt at 1 foot from Mux (any polarization) |
| Manufacturer | ICS Triplex |
| Model / SKU | T3431-IM |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Why We Test Every Module — Not Just Look at It
In the surplus market, "tested" is a word that gets stretched. We define it clearly for the ICS Triplex T3431-IM: power-up on a live ICS Triplex rack, all channels exercised with calibrated sources, communication ports verified, 48 hours of continuous operation at 55°C. A printed test report with serial number, test date, and measured values accompanies every shipment. This is what real testing looks like — not a visual inspection, not a "light comes on" check.
Factory-sealed. Genuine ICS Triplex with full traceability. 12-month warranty. Ships within 24 hours from Shenzhen via DHL, FedEx, or UPS.
