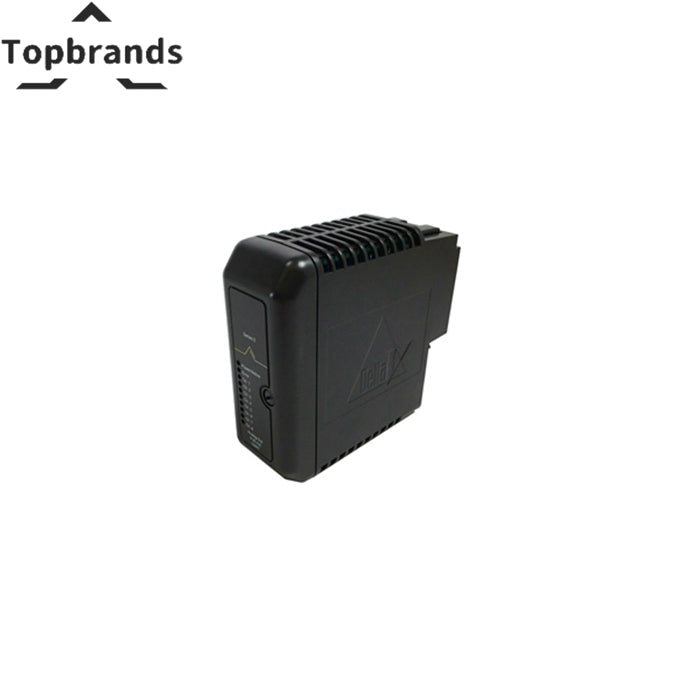

KJ3206X1-BA1 | EMERSON | Delta V | DI (Digital Input) Card
The Delta V KJ3206X1-BA1 is a di (digital input) card for Delta V platforms. Ambient Temperature: -40°C to +70°C | Shock: 10g (1⁄2 Sinewave for 11msec) | Vibration: 1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| Local Bus Power | 12 VDC at 100 mA |
|---|---|
| Field Circuit | 24 VDC at 5 mA per channel |
| Ambient Temperature | -40°C to +70°C |
| Shock | 10g (1⁄2 Sinewave for 11msec) |
| Vibration | 1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz |
| Airborne Contaminants | Class G3 (ISA-S71.04 –1985) |
| Relative Humidity | 5% to 95% (Non-Condensing) |
| IP Rating | IP20 |
| Application | Designed for use in hazardous environments where digital input monitoring is required. |
| Power | Supports both local bus power and field circuit power, ensuring flexibility in installation. |
| Environmental Resilience | Operates effectively across a wide range of temperatures and can withstand shocks and vibrations typical in industrial settings. |
| Safety Compliance | Certified for use in hazardous areas, meeting stringent safety standards for airborne contaminants and environmental conditions. |
| Manufacturer | Delta V |
| Model / SKU | KJ3206X1-BA1 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
How to Specify and Order a Delta V KJ3206X1-BA1
If you have ever ordered the wrong industrial part because the part number was off by one digit, you know the frustration. The KJ3206X1-BA1 | EMERSON | Delta V | DI (Digital Input) Card is a di (digital input) card, and getting the exact variant right matters.
Step 1: Verify the part number. Check the label on your existing module. Delta V uses suffix codes that define voltage, communication protocol, and certification status.
Step 2: Confirm specifications. Local Bus Power: 12 VDC at 100 mA
Field Circuit: 24 VDC at 5 mA per channel
Ambient Temperature: -40°C to +70°C
Shock: 10g (1⁄2 Sinewave for 11msec)
Vibration: 1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz.
Step 3: Check availability. We stock this module in Shenzhen. Ships within 24 hours. OEM lead times for Delta V parts can exceed 8 weeks.
Step 4: Install. Power down chassis. Use grounded wrist strap. Align guides, apply even pressure. Power up and verify normal operation.
Compatible Parts — Same System
These modules share the same system family as the KJ3206X1-BA1. Commonly ordered together for complete rack builds or spare parts kits.
