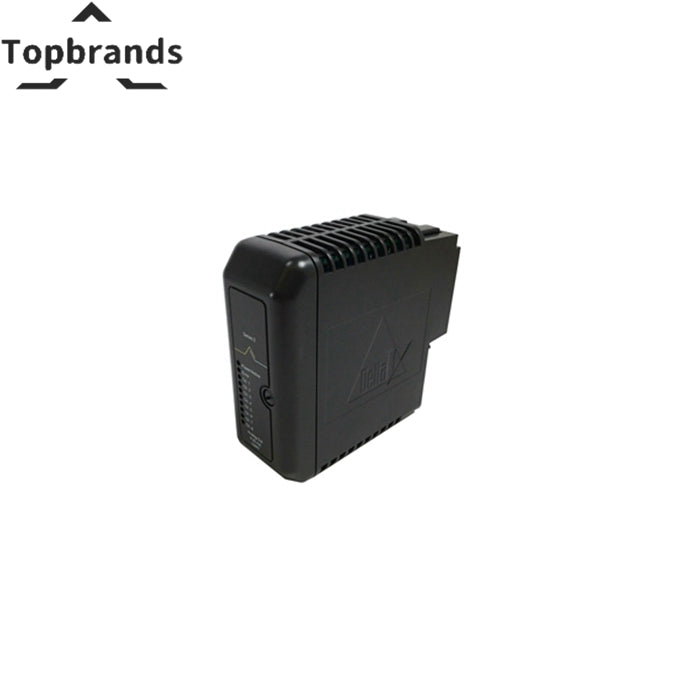

KJ3208X1-BA1 | EMERSON | Delta V | 8-Channel 24 VDC Isolated Module
The Delta V KJ3208X1-BA1 is a 8-channel 24 vdc isolated module for Delta V platforms. Ambient Temperature: -40°C to +70°C | Shock: 10g ½ Sinewave for 11msec | Vibration: 1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| Local Bus Power | 12 VDC at 150 mA |
|---|---|
| Field Circuit | 60 VDC at 1 A per channel |
| Ambient Temperature | -40°C to +70°C |
| Shock | 10g ½ Sinewave for 11msec |
| Vibration | 1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz |
| Airborne Contaminants | ISA-S71.04 –1985 Airborne Contaminants Class G3 |
| Relative Humidity | 5 to 95% Non-Condensing |
| IP Rating | IP 20 |
| Manufacturer | Delta V |
| Model / SKU | KJ3208X1-BA1 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Delta V KJ3208X1-BA1: What to Know Before Buying
Not all 8-channel 24 vdc isolated modules are interchangeable within the same Delta V family. The KJ3208X1-BA1 | EMERSON | Delta V | 8-Channel 24 VDC Isolated Module has specific characteristics that must match your application.
Key characteristics:
Local Bus Power: 12 VDC at 150 mA
Field Circuit: 60 VDC at 1 A per channel
Ambient Temperature: -40°C to +70°C
Shock: 10g ½ Sinewave for 11msec
Vibration: 1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz
Compare against your existing module. If any parameter differs, contact us for a compatibility check. Our engineers respond within 4 business hours.
This is a 100% genuine Delta V module with serial number and full traceability. Every unit is tested on a live rack with 48-hour burn-in at 55C before shipping. Printed test report included. 12-month warranty.
Compatible Parts — Same System
These modules share the same system family as the KJ3208X1-BA1. Commonly ordered together for complete rack builds or spare parts kits.
