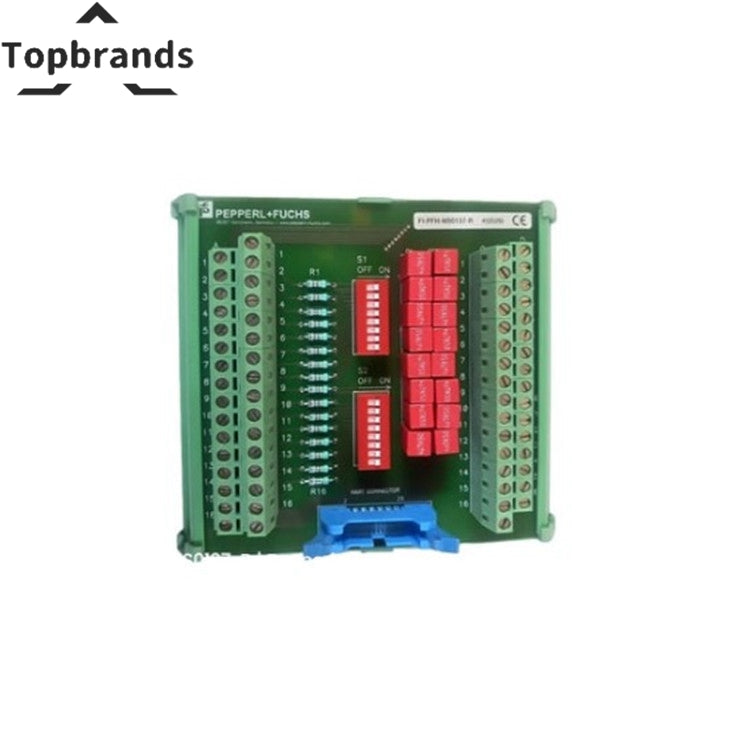

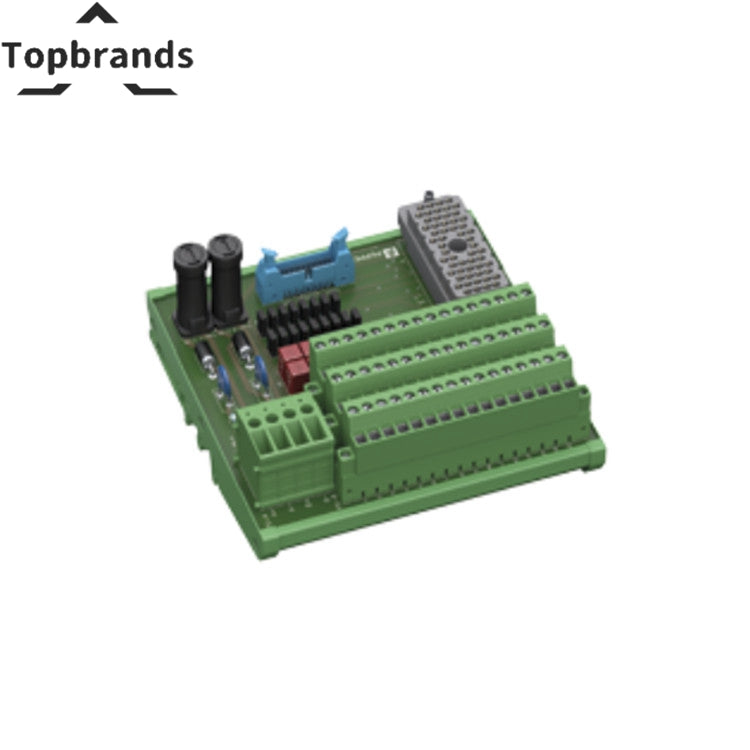

PEPPERL+FUCHS 242606 FI-PFH-TR-AO-380X HART Termination Board
The PEPPERL+FUCHS FI-PFH-TR-AO-380X is a hart termination board for PEPPERL+FUCHS platforms. Fusing: 1 A | Power dissipation: ≤ 500 mW | Type: multiplexer connection: IDC plug, 26-pin. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| Rated voltage | 25 ... 28 V DC SELV/PELV |
|---|---|
| Ripple | max. 10% |
| Fusing | 1 A |
| Power dissipation | ≤ 500 mW |
| Type | multiplexer connection: IDC plug, 26-pin |
| Supply | screw terminals, green |
| Rated current | max. 30 mA per channel |
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
| Electromagnetic compatibility | NE 21:2017 |
| Degree of protection | IP20 |
| Shock resistance | EN 60068-2-27, 15 g, 11 ms |
| Vibration resistance | EN 60068-2-6, 1 g, 10 ... 150 Hz |
| Ambient temperature | 0 ... 50 °C (32 ... 122 °F) |
| Storage temperature | -15 ... 50 °C (5 ... 122 °F) |
| Relative humidity | ≤ 93% non-condensing |
| Field side | pluggable screw terminals, green |
| Control side | ELCO socket, 56-pin |
| HART | 2 x IDC plug, 26-pin |
| Core cross section | 0.5 ... 2.5 mm² (20 ... 12 AWG) |
| Housing | PVC |
| Mass | approx. 300 g |
| Dimensions | 126 x 123 x 59 mm (5.0 x 4.9 x 2.3 inch) (W x H x D) |
| Height | 123 mm |
| Width | 126 mm |
| Depth | 59 mm |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
| Manufacturer | PEPPERL+FUCHS |
| Model / SKU | FI-PFH-TR-AO-380X |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Why We Test Every Module — Not Just Look at It
In the surplus market, "tested" is a word that gets stretched. We define it clearly for the PEPPERL+FUCHS FI-PFH-TR-AO-380X: power-up on a live PEPPERL+FUCHS rack, all channels exercised with calibrated sources, communication ports verified, 48 hours of continuous operation at 55°C. A printed test report with serial number, test date, and measured values accompanies every shipment. This is what real testing looks like — not a visual inspection, not a "light comes on" check.
Factory-sealed. Genuine PEPPERL+FUCHS with full traceability. 12-month warranty. Ships within 24 hours from Shenzhen via DHL, FedEx, or UPS.
