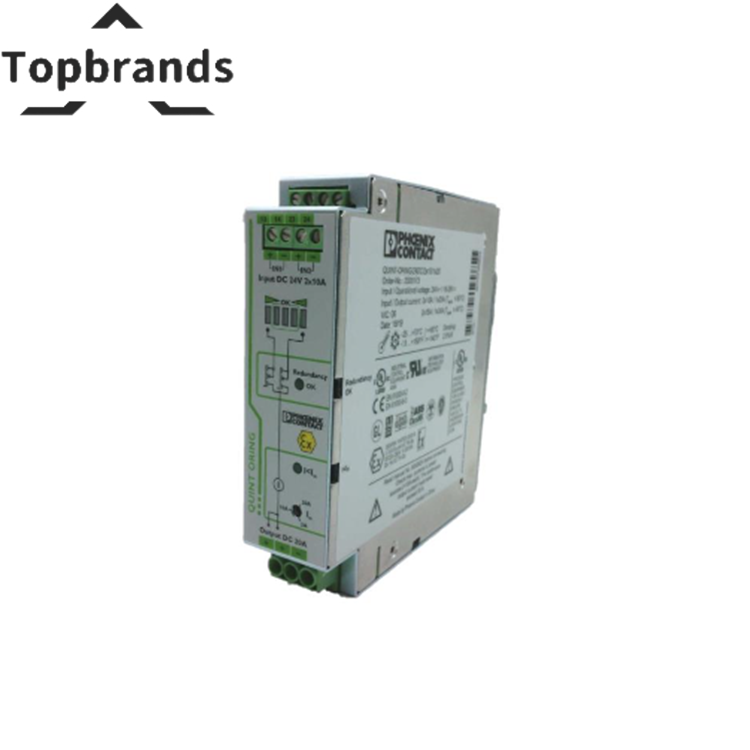

Phoenix Contact QUINT ORING/24DC/2X10/1X20 Redundant Module
The Phoenix Contact QUINT-ORING/24DC/2X10/1X20 is a redundant module for Phoenix Contact platforms. Input Voltage: 24 V DC | Output Voltage: 24 V DC | Technology: Auto Current Balancing (ACB) Technology. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24h.
Technical Specifications
| Product Type | Redundancy Module with Protective Coating |
|---|---|
| Part Number | 2320173 |
| Input Voltage | 24 V DC |
| Output Voltage | 24 V DC |
| Technology | Auto Current Balancing (ACB) Technology |
| Monitoring Functions | Ensures even distribution of load current, doubling the service life of power supplies |
| Mounting | Includes UTA 107/30 Universal DIN Rail Adapter |
| Input Voltage Range | 18 V DC to 28 V DC (SELV) |
| Efficiency | > 98% |
| Voltage Drop (Input/Output) | 0.1 V (at 20 A) |
| Operating Temperature | -25 °C to 70 °C |
| Storage Temperature | -40 °C to 85 °C |
| Relative Humidity | ≤ 100% (Non-Condensing) |
| Shock Resistance | 18 ms, 30g |
| Width | 32 mm |
| Height | 130 mm |
| Depth | 125 mm |
| Manufacturer | Phoenix Contact |
| Model / SKU | QUINT-ORING/24DC/2X10/1X20 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
The Phoenix Contact QUINT-ORING/24DC/2X10/1X20 is a redundant module for Phoenix Contact systems. Phoenix Contact suffix codes define configuration — two modules with the same base number can be incompatible. Product Type: Redundancy Module with Protective Coating. Part Number: 2320173. Input Voltage: 24 V DC.
Live-rack tested: power-up, channel verification, communication testing, 48h burn-in at 55°C. Printed test report. Genuine Phoenix Contact. 12-month warranty. Ships within 24h from Shenzhen.
Testing done?
Visual inspection, live-rack power-up, channel verification with calibrated sources, communication testing, 48h burn-in at 55°C. Printed test report included.
Confirm correct part?
Match the full part number including all suffix codes from your module label. Send a photo — our engineers confirm within 4h.
Warranty and shipping?
12-month warranty. Advance replacement for critical apps. DHL/FedEx/UPS, 24h handling, 3-5 day delivery worldwide. Customs docs included.
Compatible Parts — Same System
These modules share the same system family as the QUINT-ORING/24DC/2X10/1X20. Commonly ordered together for complete rack builds or spare parts kits.
