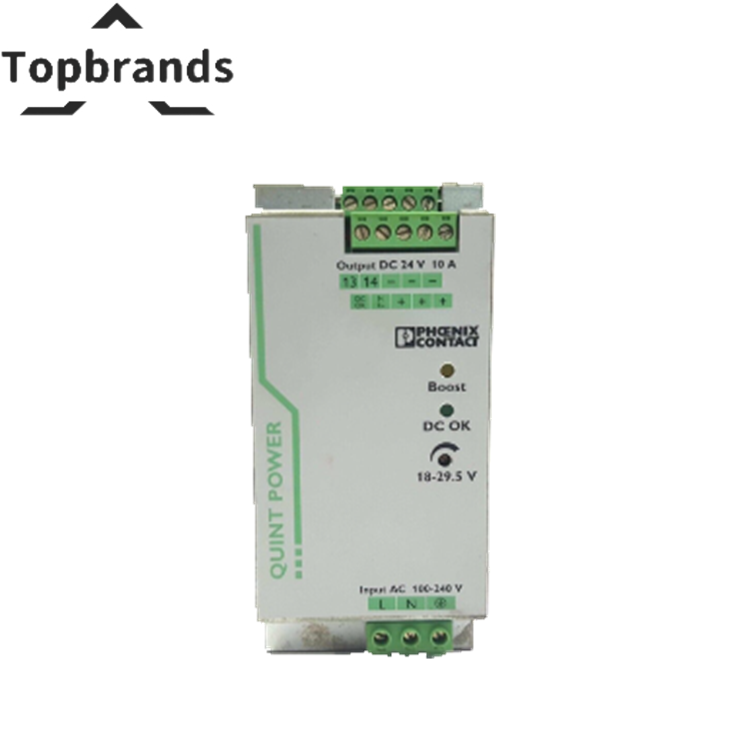

Phoenix Contact QUINT-PS/1AC/24DC/10 Primary-Switched Power Supply Unit
The Phoenix Contact QUINT-PS/1AC/24DC/10 is a power supply unit for Phoenix Contact platforms. AC: 85 V AC to 264 V AC | DC: 110 V DC to 350 V DC | Output Voltage: 24 V DC. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24h.
Technical Specifications
| Product Type | Power Supply Unit |
|---|---|
| Part Number | 2866763 |
| AC | 85 V AC to 264 V AC |
| DC | 110 V DC to 350 V DC |
| Output Voltage | 24 V DC |
| Output Current | 10 A |
| Technology | Selective Fuse Breaking (SFB) Technology |
| Mounting | DIN Rail Mounting |
| Connection | Screw Connection |
| Operating Temperature | -25 °C to 70 °C |
| Storage Temperature | -40 °C to 85 °C |
| Relative Humidity | ≤ 100% (Non-Condensing) |
| Shock Resistance | 18 ms, 30g |
| Width | 60 mm |
| Height | 130 mm |
| Depth | 125 mm |
| Manufacturer | Phoenix Contact |
| Model / SKU | QUINT-PS/1AC/24DC/10 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
The Phoenix Contact QUINT-PS/1AC/24DC/10 supplies regulated power to every module in your Phoenix Contact rack. When it fails, the entire rack goes dark. Capacitor aging is the primary failure mechanism — accelerated by temperature. A supply at 50°C fails years before one at 25°C. Product Type: Power Supply Unit. Part Number: 2866763. AC: 85 V AC to 264 V AC.
We test on a live chassis under load: all rails verified, ripple measured, protection circuits checked. 48h burn-in at 55°C. Printed test report. Genuine Phoenix Contact. 12-month warranty. Ships within 24h.
Should I keep a spare?
Yes. A spare costs under $2,000. One unplanned rack outage can exceed $10,000/hour. If your chassis supports dual supplies, install both for redundancy.
What testing is performed?
Visual inspection, live-chassis power-up under nominal and peak load, output voltage regulation, ripple and noise measurement, protection circuit verification, 48h burn-in at 55°C. All values documented in printed test report.
Is my power supply failing?
Symptoms: module runs hotter than normal, output voltage drifts low, ripple noise on analog signals, intermittent resets, or visible capacitor bulging. Proactive replacement during a maintenance window avoids emergency shutdown.
