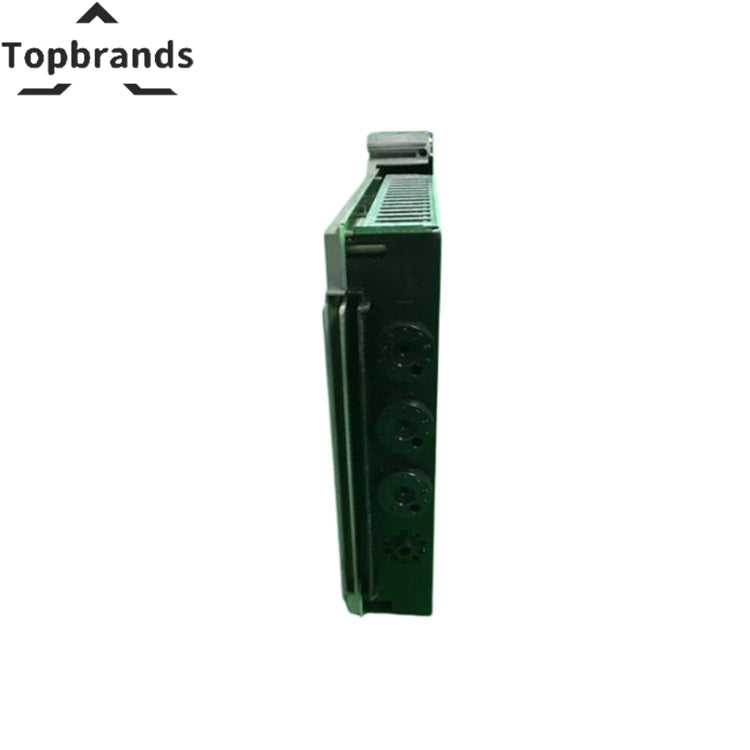

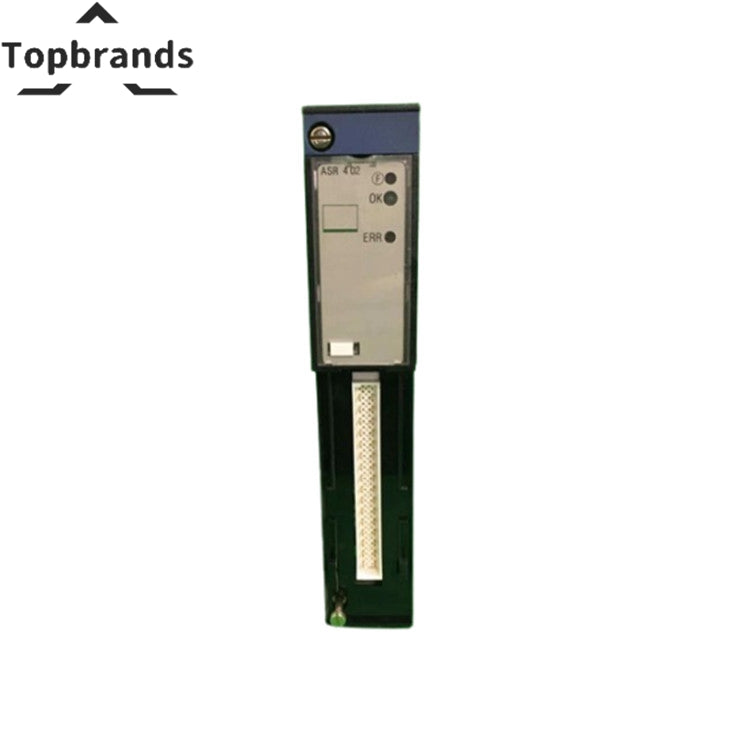

Schneider Modicon TSX Micro Series TSXASR402 Analog Output Module
Need a analog output module for your Schneider system? The TSXASR402 handles Output Range: Typically offers a configurable voltage output range, commonly from 0 to 10 volts DC (0-10V) or -10 to +10 volts DC (-10V to +10V). | Manufacturer: Schneider | Model / SKU: TSXASR402. Factory-sealed, tested on live rack, 48-hour burn-in. Ships same day from Shenzhen. 12-month warranty.
Technical Specifications
| Function | Converts digital control signals from the PLC into analog voltage signals for controlling external devices such as valves, motors, or actuators. |
|---|---|
| Number of Outputs | 4 channels for analog voltage output. |
| Output Range | Typically offers a configurable voltage output range, commonly from 0 to 10 volts DC (0-10V) or -10 to +10 volts DC (-10V to +10V). |
| Manufacturer | Schneider |
| Model / SKU | TSXASR402 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Why the Schneider TSXASR402 Matters for Your Operation
In mining, every component in your control system has a specific job — and when one fails, the ripple effects can shut down an entire production line. The Schneider TSXASR402 is a analog output module that keeps your conveyor control and grinding mill drives running without interruption.
Here is what this module actually does. number of outputs: 4 channels for analog voltage output.; manufacturer: Schneider; model / sku: TSXASR402. These are not generic specifications — they determine whether this module will work in your specific Schneider system. We have seen too many cases where a maintenance team ordered a replacement only to find it was the wrong revision or configuration. That is why we test every TSXASR402 on a live Schneider rack before shipping — full signal injection across every channel, not just a visual check.
Installation matters too. The most common cause of DOA reports is not a defective module — it is bent backplane pins from forcing a module in at the wrong angle. Take your time lining up the guides. Apply even pressure. If it does not slide in smoothly, stop and check the alignment. Always wear a grounded wrist strap — static discharge from removing a fleece jacket in a dry mine site can exceed 15,000 volts, destroying sensitive input protection diodes instantly.
Think about your sparing strategy. A single Schneider TSXASR402 costs a fraction of what one hour of unplanned downtime costs in mining. We ship replacements within 24 hours from Shenzhen — but even 24 hours is too long if you are losing production. For critical applications, keep one cold spare on your shelf.
