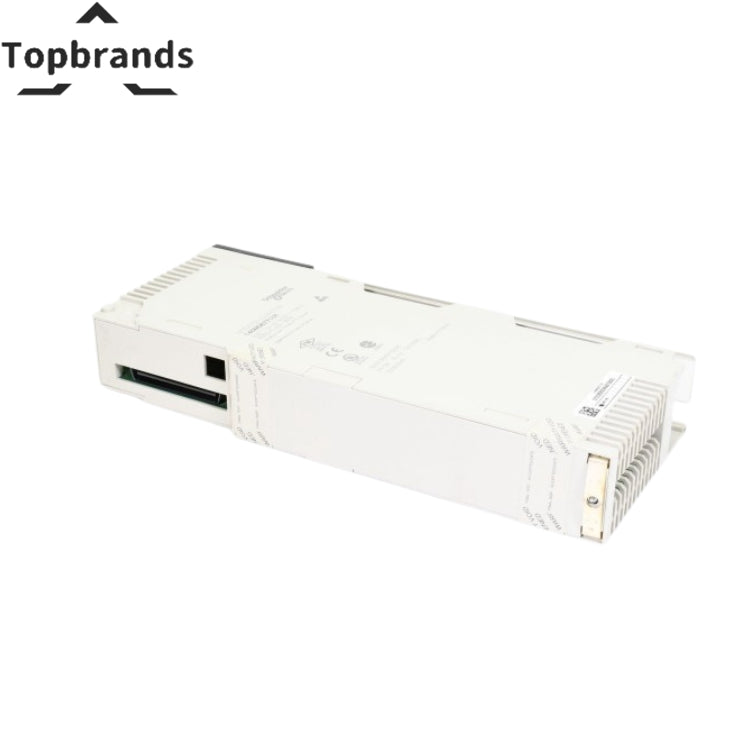

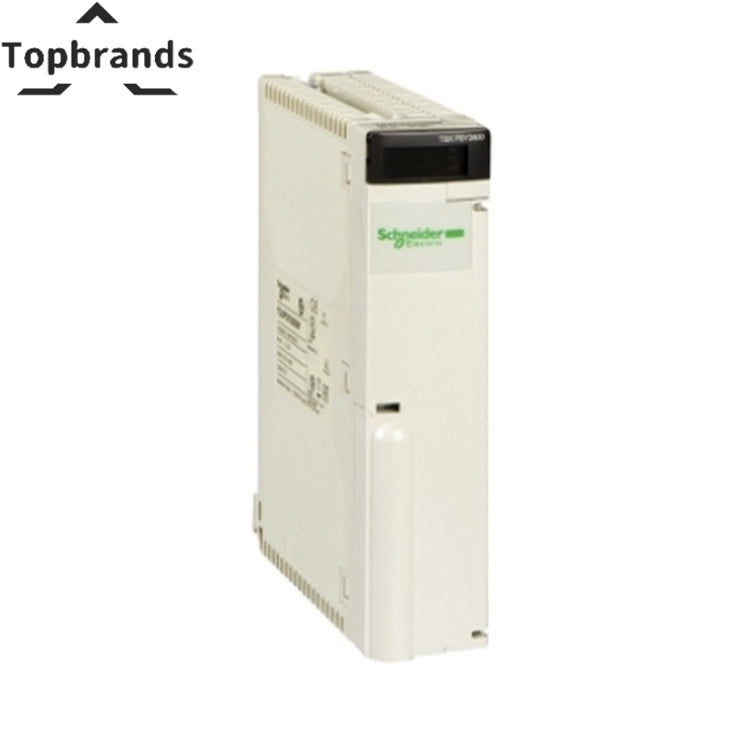

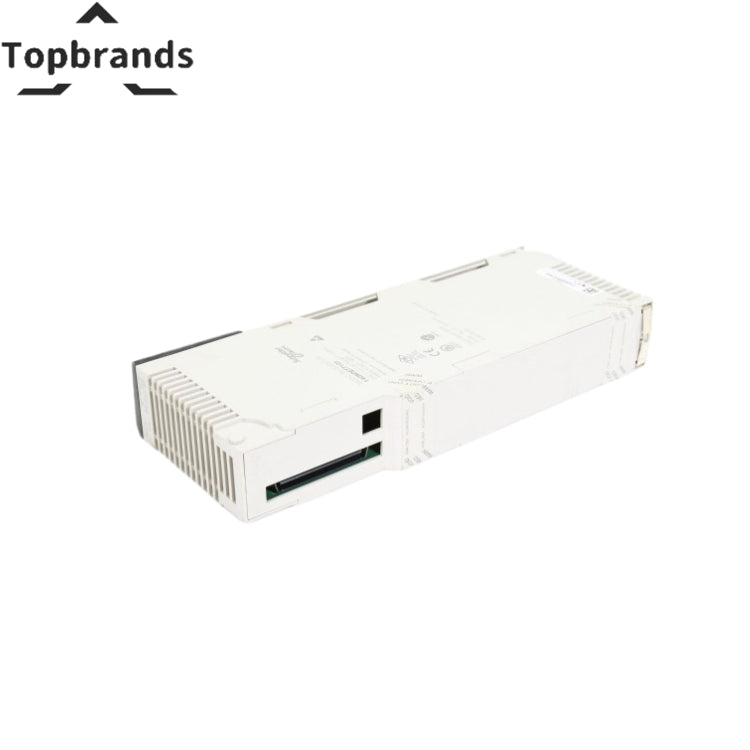

Schneider Modicon TSXPSY2600M Power Supply Module
The Schneider TSXPSY2600M is a power supply module for Schneider platforms. Primary Voltage: 100...240 V AC (85...264 V) | Network Frequency: 50/60 Hz (47…63 Hz limits) | Internal Fuse: 4 A, 5 x 20 mm time-delayed primary circuit. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| Range of Product | Modicon Premium Automation platform |
|---|---|
| Product Type | Power supply module |
| Primary Voltage | 100...240 V AC (85...264 V) |
| Network Frequency | 50/60 Hz (47…63 Hz limits) |
| Internal Fuse | 4 A, 5 x 20 mm time-delayed primary circuit |
| Overload Protection | Secondary circuit |
| Overvoltage Protection | Secondary circuit |
| Short-circuit Protection | Secondary circuit |
| Total Useful Secondary Power | 26 W |
| Marking | CE |
| Module Format | Standard |
| Net Weight | 0.51 kg |
| Immunity to Microbreaks | 10 ms |
| Operating Altitude | 0...2000 m |
| Protective Treatment | TC |
| IP Degree of Protection | IP20 |
| Pollution Degree | 2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Manufacturer | Schneider |
| Model / SKU | TSXPSY2600M |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
What Happens When a Schneider TSXPSY2600M Fails
Industrial components degrade over time. Understanding failure modes helps you plan replacements before emergencies.
Warning signs: intermittent faults with temperature changes, increased error counts in logs, status LEDs flickering, communication timeouts that were not present at commissioning.
This module: Range of Product: Modicon Premium Automation platform
Product Type: Power supply module
Primary Voltage: 100...240 V AC (85...264 V)
Network Frequency: 50/60 Hz (47…63 Hz limits)
Internal Fuse: 4 A, 5 x 20 mm time-delayed primary circuit. Operating outside these ranges accelerates degradation.
Strategy: For critical systems where downtime exceeds $5,000/hour, keep one tested spare. Swap during planned maintenance — not at 2 AM. We ship within 24 hours. 12-month warranty.
Compatible Parts — Same System
These modules share the same system family as the TSXPSY2600M. Commonly ordered together for complete rack builds or spare parts kits.
