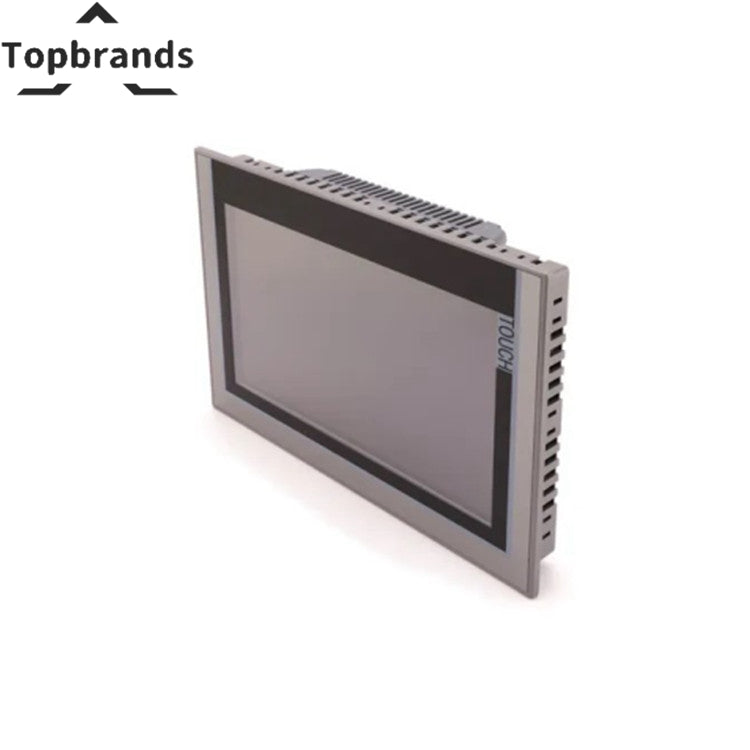

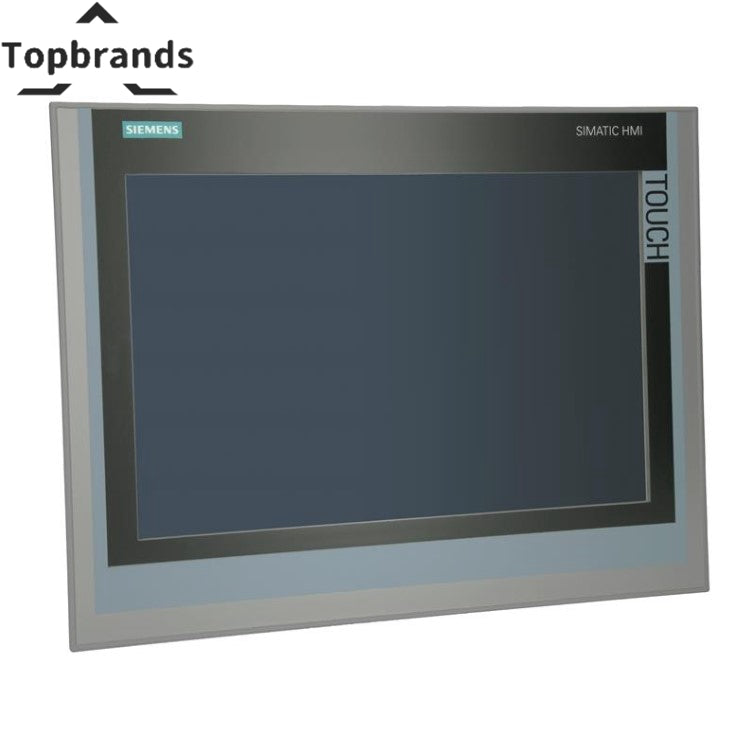

SIEMENS 6AV2124-0MC01-0AX0 SIMATIC HMI TP1200 Comfort Touch Screen 12inch
Every hour of downtime costs thousands. The 6AV2124-0MC01-0AX0 simatic hmi tp1200 comfort touch screen pays for itself the first time you need it. Screen Diagonal: 12.1 inches | Display Dimensions: 261.1 mm x 163.2 mm | Supply Voltage Type: DC. Factory-new, fully bench-tested. 12-month warranty.
Technical Specifications
| Product Type | SIMATIC HMI TP1200 Comfort |
|---|---|
| Display Type | TFT |
| Screen Diagonal | 12.1 inches |
| Display Dimensions | 261.1 mm x 163.2 mm |
| Supply Voltage Type | DC |
| Rated DC Voltage | 24 V |
| Permissible Voltage Range | Lower limit (DC): 19.2 V, Upper limit (DC): 28.8 V |
| Rated Current Consumption | 0.85 A |
| Starting Current Inrush | 0.5 A²·s |
| Active Power Input (Typical) | 20 W |
| Processor Type | X86 |
| Flash Memory | Yes |
| RAM | Yes |
| User Data Memory | 12 Mbyte |
| Housing Front Dimensions | Width: 330 mm, Height: 241 mm |
| Mounting Cutout Dimensions | Width: 310 mm, Height: 221 mm |
| Overall Depth | 65 mm |
| Weight | 2.8 kg |
| Manufacturer | SIEMENS |
| Model / SKU | 6AV2124-0MC01-0AX0 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Buying a SIEMENS 6AV2124-0MC01-0AX0: What to Look For
Ordering industrial spare parts is not like online shopping. When you need a simatic hmi tp1200 comfort touch screen for your SIEMENS system, getting the wrong variant can mean days of additional downtime. Here is how to get it right the first time.
Match the exact part number. SIEMENS uses configuration codes in part numbers that determine input voltage, output type, communication protocol, and agency approvals. Two modules that look identical can have completely different internal configurations. Always match the full part number — not just the base model. Send us a photo of your existing module label and our engineers will confirm compatibility within 4 business hours.
Know what you are buying. product type: SIMATIC HMI TP1200 Comfort; display type: TFT; screen diagonal: 12.1 inches; display dimensions: 261.1 mm x 163.2 mm. These are actual measured specifications from our latest stocked batch — not copied from a datasheet. Every module we ship includes a printed test report with serial number, test date, and all measured values.
Plan ahead. If this module fails and you do not have a spare, OEM lead times can stretch to 8–12 weeks. We ship within 24 hours from stock. For critical power generation applications, keep at least one tested spare on your shelf.
