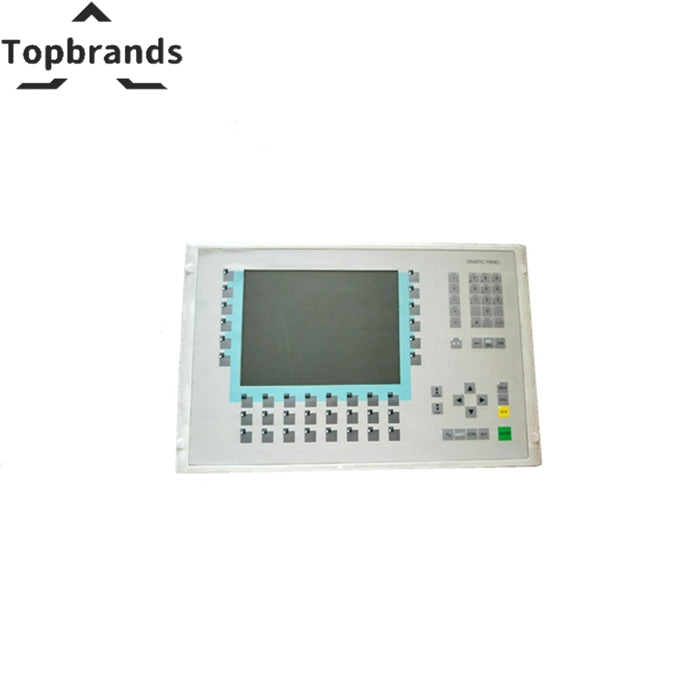

SIEMENS 6AV6545-0DA10-0AX0 SIMATIC MP370 Multi Panel HMI 12inch
Every hour of downtime costs thousands. The 6AV6545-0DA10-0AX0 simatic mp370 multi panel pays for itself the first time you need it. Product Type: SIMATIC Multi Panel MP 370 12" Color | Design of display: TFT, 256 colors | Screen diagonal: 12.1 inches. Factory-new, fully bench-tested. 12-month warranty.
Technical Specifications
| Manufacturer | SIEMENS |
|---|---|
| Product Number | 6AV6545-0DA10-0AX0 |
| Product Type | SIMATIC Multi Panel MP 370 12" Color |
| Design of display | TFT, 256 colors |
| Screen diagonal | 12.1 inches |
| Resolution | 800 x 600 pixels (horizontal x vertical) |
| Control elements | Touch screen |
| Current consumption (rated value) | 1.15 A |
| Active power input (typical) | 28 W |
| Type of memory | Flash / RAM |
| Memory available for user data | 7168 KB |
| Dimensions (WxHxD) | 335 x 275 x 59 mm |
| Weight | 4.5 kg |
| Model / SKU | 6AV6545-0DA10-0AX0 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Why the SIEMENS 6AV6545-0DA10-0AX0 Matters for Your Operation
In oil and gas, every component in your control system has a specific job — and when one fails, the ripple effects can shut down an entire production line. The SIEMENS 6AV6545-0DA10-0AX0 is a simatic mp370 multi panel that keeps your refinery process control and pipeline compressor stations running without interruption.
Here is what this module actually does. manufacturer: SIEMENS; product number: 6AV6545-0DA10-0AX0; product type: SIMATIC Multi Panel MP 370 12" Color; design of display: TFT, 256 colors. These are not generic specifications — they determine whether this module will work in your specific SIEMENS system. We have seen too many cases where a maintenance team ordered a replacement only to find it was the wrong revision or configuration. That is why we test every 6AV6545-0DA10-0AX0 on a live SIEMENS rack before shipping — full signal injection across every channel, not just a visual check.
Installation matters too. The most common cause of DOA reports is not a defective module — it is bent backplane pins from forcing a module in at the wrong angle. Take your time lining up the guides. Apply even pressure. If it does not slide in smoothly, stop and check the alignment. Always wear a grounded wrist strap — static discharge from removing a fleece jacket in a dry refinery control room can exceed 15,000 volts, destroying sensitive input protection diodes instantly.
Think about your sparing strategy. A single SIEMENS 6AV6545-0DA10-0AX0 costs a fraction of what one hour of unplanned downtime costs in oil and gas. We ship replacements within 24 hours from Shenzhen — but even 24 hours is too long if you are losing production. For critical applications, keep one cold spare on your shelf.
