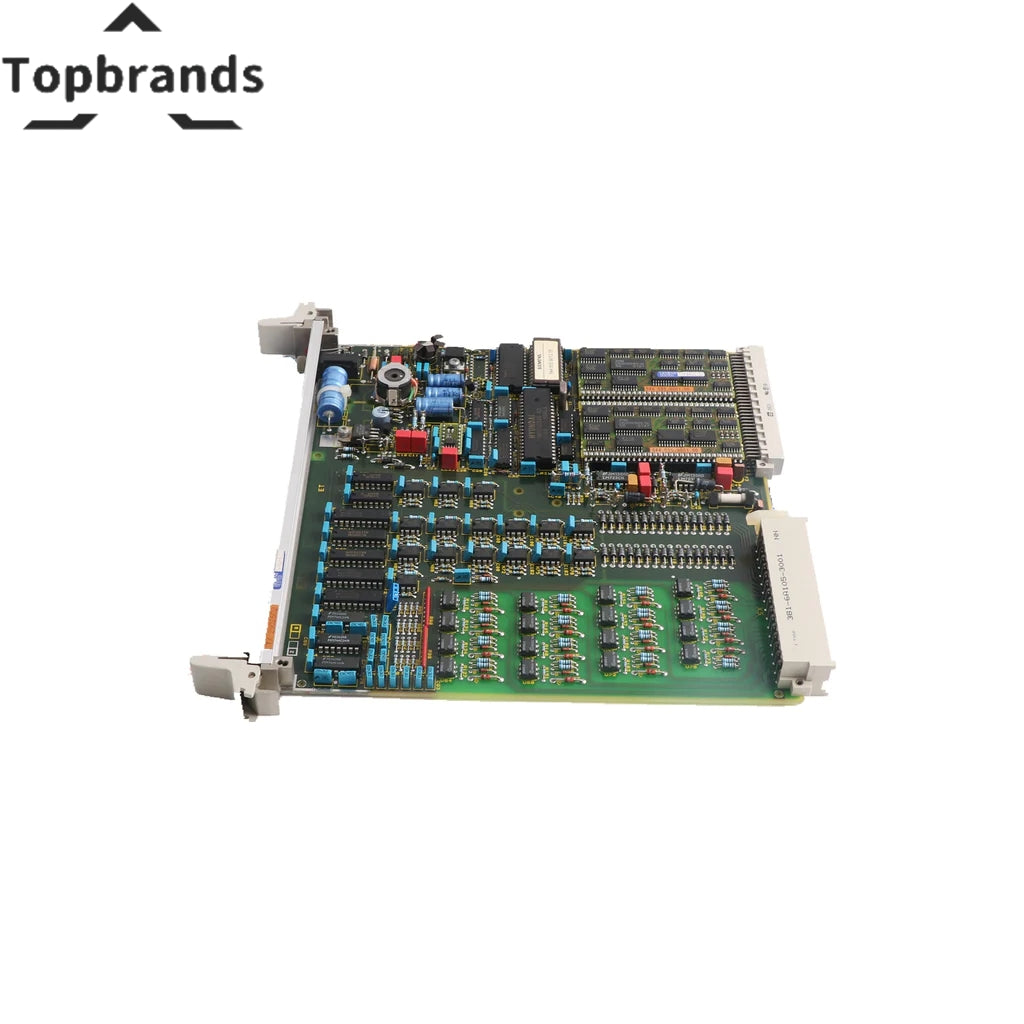

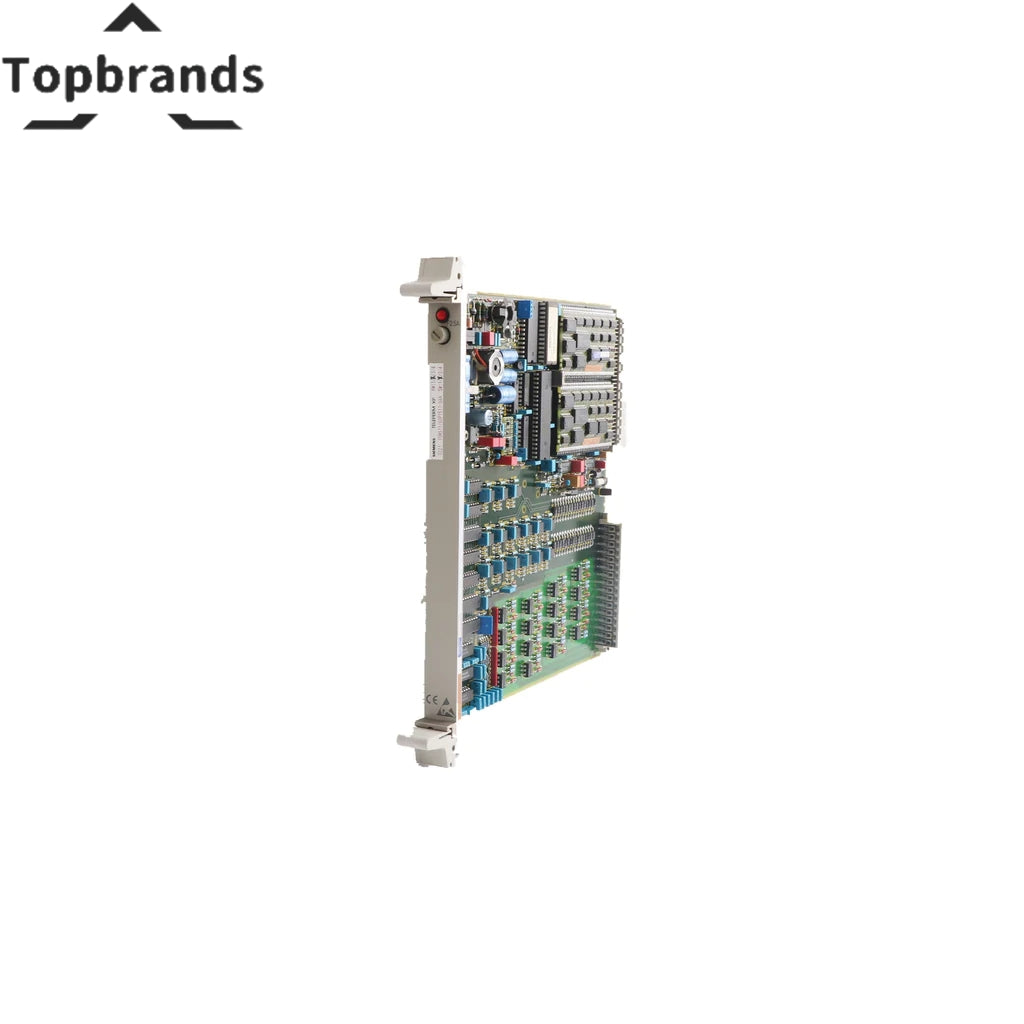

Siemens SINEC H1FO (High-Speed First Optical) Network 6GK1100-0AG01 Bus Coupler
Automation does not wait for lead times. The SIEMENS 6GK1100-0AG01 — a bus coupler on our shelf right now. Data transfer rate: Up to 120 Mbps | Voltage range: 24 VDC | Current consumption: 200 mA. Functionally verified before packing. 12-month warranty.
Technical Specifications
| Number of slots | 12 |
|---|---|
| Supported protocols | PROFIBUS DP, PROFINET |
| Data transfer rate | Up to 120 Mbps |
| Voltage range | 24 VDC |
| Current consumption | 200 mA |
| Dimensions | 100 x 100 x 50 mm |
| Weight | 0.5 kg |
| Manufacturer | SIEMENS |
| Model / SKU | 6GK1100-0AG01 |
✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery
Detailed Product Information
Installation Guide
Verify backplane voltage before insertion. ESD wrist strap mandatory. If it does not slide smoothly, stop — bent pins are the #1 DOA cause. Run diagnostics after install, not before going live.
Where the 6GK1100-0AG01 Operates
Deployed in refineries. SIEMENS systems where reliability is everything.
Example Installations
- Function: Connects a SIMATIC S5 PLC (Programmable Logic Controller) to a high-speed fiber optic network within the SINEC H1FO system.
- Enables data transmission between the PLC and other devices on the network over long distances using fiber optic cables.
- Technical Specifications: Number of slots: 12 Supported protocols: PROFIBUS DP, PROFINET Data transfer rate: Up to 120 Mbps Voltage range: 24 VDC Current consumption: 200 mA Dimensions: 100 x 100 x 50 mm Weight: 0.
No spare means one failure away from downtime. We ship within 24 hours.
After-Sales Support
Engineers with 8+ years on SIEMENS systems. Video call installation guidance. Configuration troubleshooting. Part number cross-referencing. Included with purchase. Response within 4 hours.
Troubleshooting
Most failures are config issues. Check: correct slot, backplane power, connector seating, system event log. Contact us before RMA — many problems are solved remotely in minutes.
