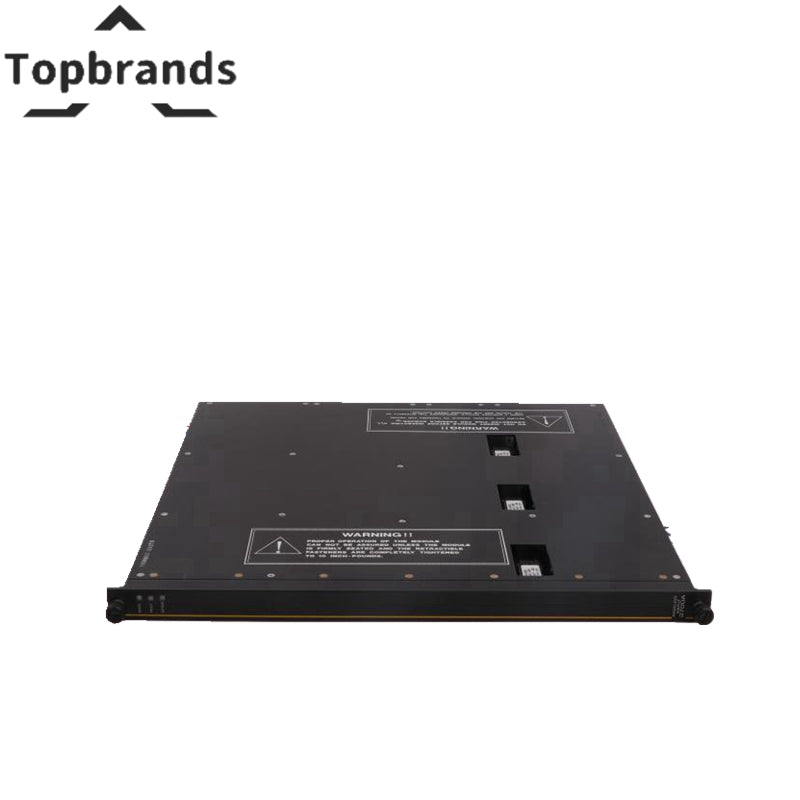

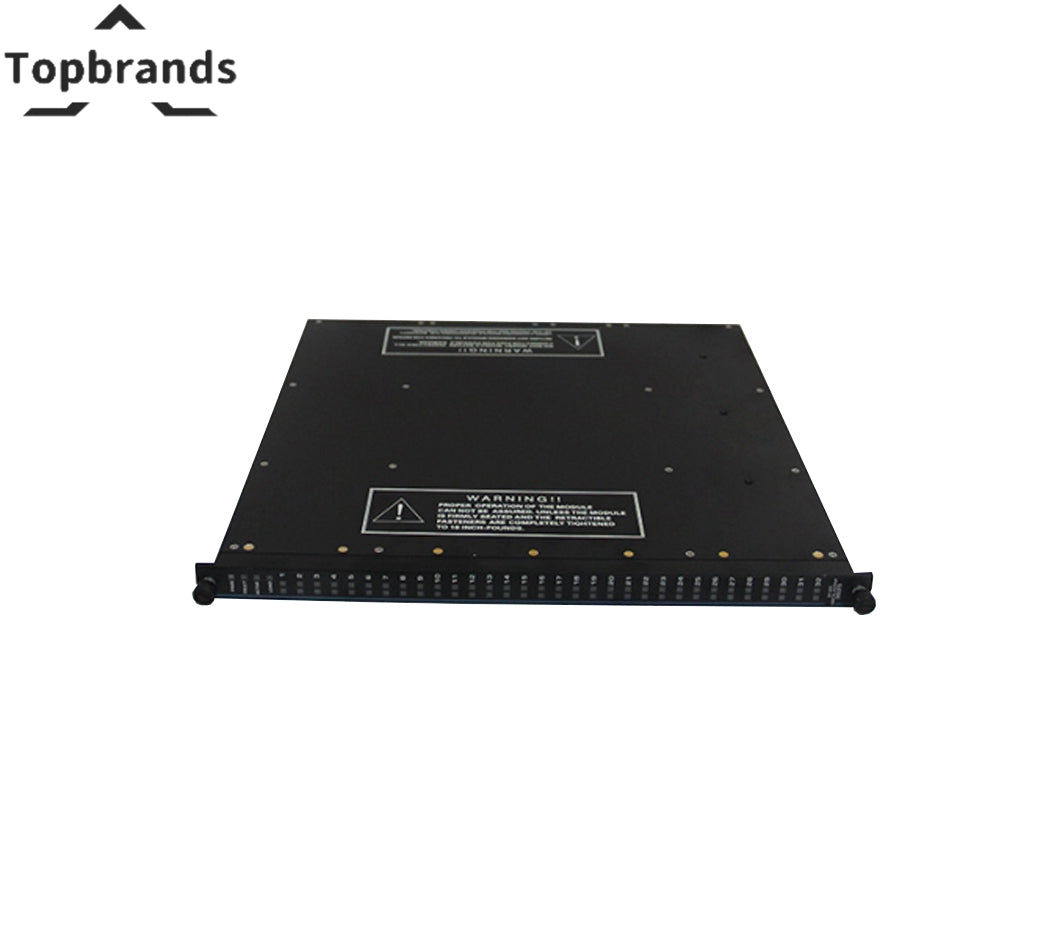

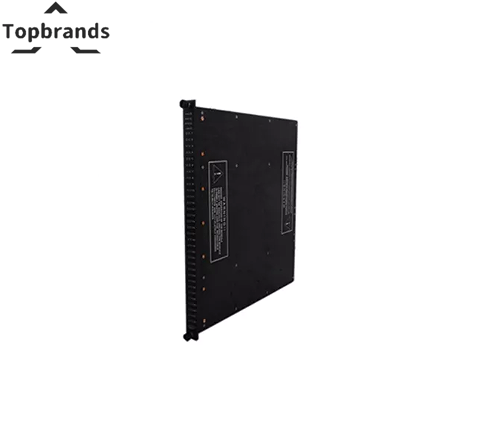

Triconex 3603B 16-Point Digital Output Module in stock
The Triconex 3603B is a digital output module for Triconex platforms. Voltage Range: 90-150 VDC | Voltage Drop: < 1.5V, typical | Load Leakage: 2 mA maximum. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
About the Triconex 3603B
Triconex (Schneider Electric) Tricon and Trident platforms are the gold standard for TUV-certified SIL 3 safety instrumented systems in high-hazard industries.
The Triconex 3603B 16-Point Digital Output Module in stock is a digital output module with these key specifications: Nominal Voltage: 120 VDC
Type: TMR, DO
Voltage Range: 90-150 VDC
Voltage Drop: < 1.5V, typical.
When ordering a replacement, verify these parameters against your existing module — two modules sharing the same base number can have different internal configurations. This unit is factory-sealed and tested on a live rack with 48-hour burn-in at 55°C. Printed test report included. 12-month warranty. Ships within 24 hours from Shenzhen.
Technical Specifications
| Nominal Voltage | 120 VDC |
|---|---|
| Type | TMR, DO |
| Voltage Range | 90-150 VDC |
| Voltage Drop | < 1.5V, typical |
| Load Leakage | 2 mA maximum |
| Chassis Leakage | Not applicable |
| Fuses (on Field Termination) | 1 per output, 1.0A fast-acting |
| Point Isolation | 1,500 VDC/2,500 VDC |
| Color Code | Blue |
| Manufacturer | Triconex |
| Model / SKU | 3603B |
✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery
