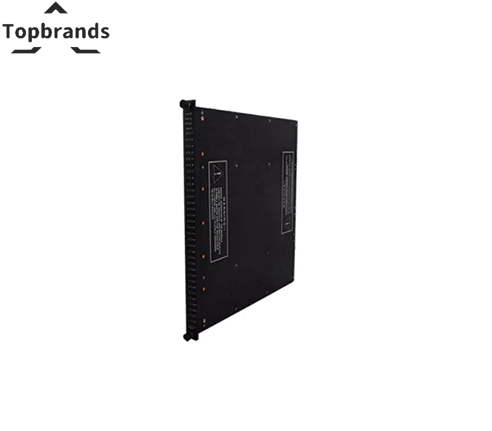

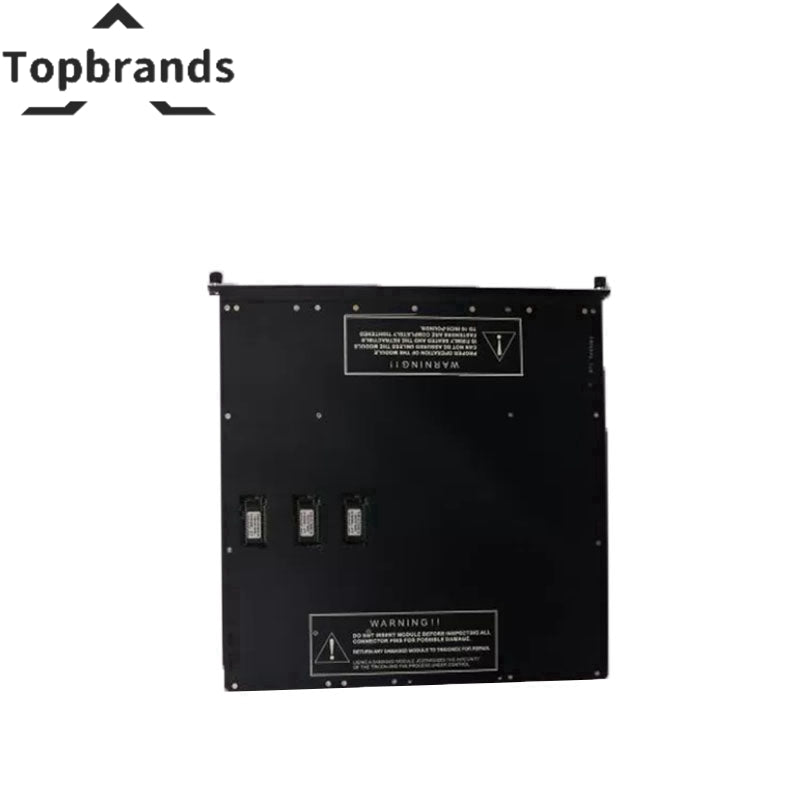

TRICONEX 3623 Digital Output Modules 100% Brand New
Automation does not wait. The Triconex 3623 is a output modules in our Shenzhen warehouse right now. Output Signals: 16, commoned | Voltage Range: 90-150 VDC | Maximum Voltage: 160 VDC. Verified before packing. 12-month warranty.
Technical Specifications
| Nominal Voltage | 120 VDC |
|---|---|
| Type | TMR, Supervised DO (Triple Modular Redundant, Supervised Digital Output) |
| Output Signals | 16, commoned |
| Voltage Range | 90-150 VDC |
| Maximum Voltage | 160 VDC |
| Voltage Drop | <1.5 VDC (typical) |
| Power Module Load | <10 watts |
| Current Ratings, Maximum | 0.8A per point, 4A surge per 10 ms |
| Minimum Required Load | 30mA |
| Load Leakage | 4 mA maximum |
| Fuses (on Field Termination) | 1A fast-acting |
| Point Isolation | 1,500 VDC/2500VDC2 |
| Color Code | Steel blue |
| Manufacturer | Triconex |
| Model / SKU | 3623 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Buying a Triconex 3623: What to Look For
Ordering industrial spare parts is not like online shopping. When you need a output modules for your Triconex system, getting the wrong variant can mean days of additional downtime. Here is how to get it right the first time.
Match the exact part number. Triconex uses configuration codes in part numbers that determine input voltage, output type, communication protocol, and agency approvals. Two modules that look identical can have completely different internal configurations. Always match the full part number — not just the base model. Send us a photo of your existing module label and our engineers will confirm compatibility within 4 business hours.
Know what you are buying. nominal voltage: 120 VDC; type: TMR, Supervised DO (Triple Modular Redundant, Supervised Digital Output); output signals: 16, commoned; voltage range: 90-150 VDC. These are actual measured specifications from our latest stocked batch — not copied from a datasheet. Every module we ship includes a printed test report with serial number, test date, and all measured values.
Plan ahead. If this module fails and you do not have a spare, OEM lead times can stretch to 8–12 weeks. We ship within 24 hours from stock. For critical steel manufacturing applications, keep at least one tested spare on your shelf.
