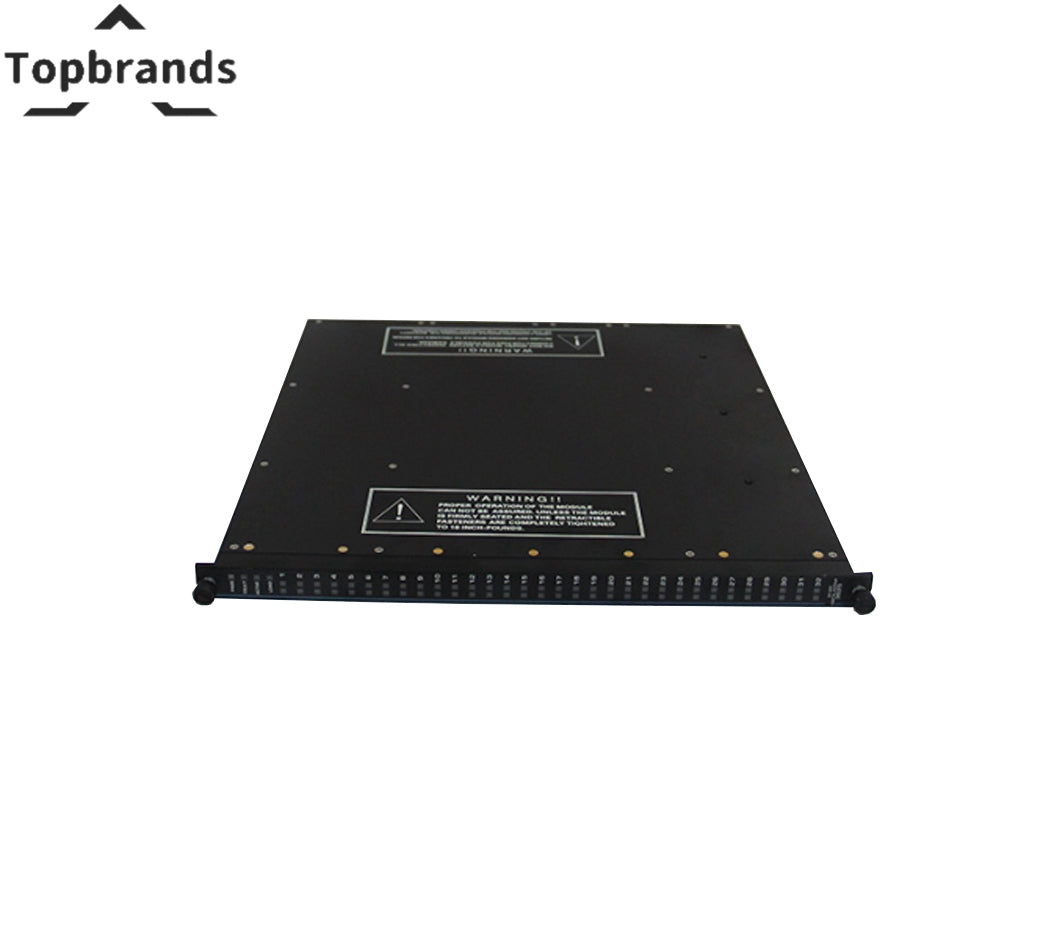

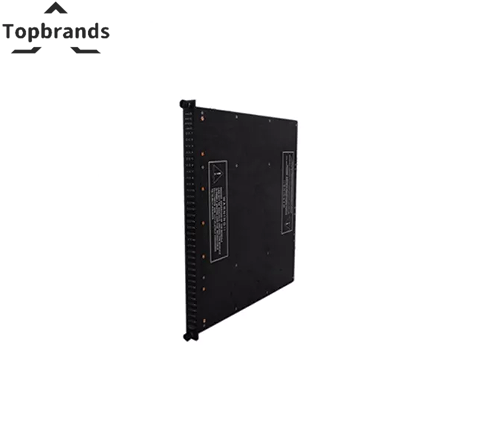

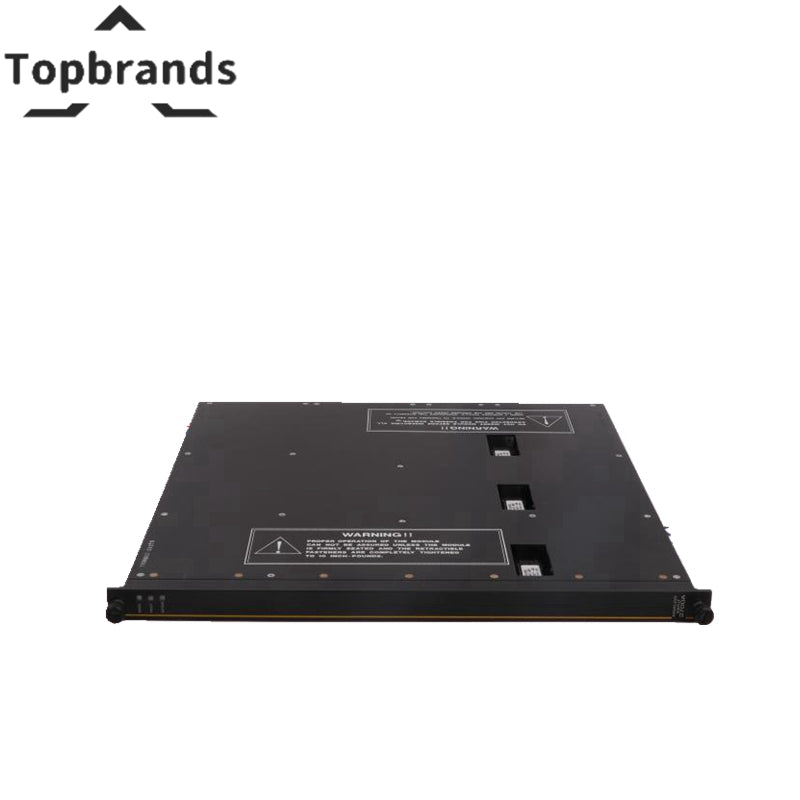

Triconex 3807 Analog Output Modules Brand New
The Triconex 3807 is a analog output modules for Triconex platforms. Number of Points: 4 bipolar output | Isolated Points: No, commoned return, DC coupled | Resolution: 13 bits. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| Type | TMR, AO |
|---|---|
| Output Current Range | -60 to 60 mA |
| Number of Points | 4 bipolar output |
| Isolated Points | No, commoned return, DC coupled |
| Resolution | 13 bits |
| Output Accuracy | < 0.25% (in range of -60 to 60 mA) of Full Scale Range (FSR), from 0° to 60° C. FSR = 120 mA |
| External Loop Power (reverse voltage protected) | 24 VDC –15%/+20%, +5% ripple |
| Output Loop Power Requirements | Independent; for ± 60mA, maximum load is 150 ohms and is independent of variations in external loop power supply voltage |
| Over-Range Protection | +36 VDC, continuous |
| Switch Time on Leg Failure | < 10 ms, typical |
| Diagnostic Indicators | Module Status (PASS, FAULT, ACTIVE, LOAD, PWR1, PWR2) |
| Color Code | Light green |
| Manufacturer | Triconex |
| Model / SKU | 3807 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
About the Triconex 3807
Triconex (Schneider Electric) Tricon and Trident platforms are the gold standard for TUV-certified SIL 3 safety instrumented systems in high-hazard industries.
The Triconex 3807 Analog Output Modules Brand New is a analog output modules with these key specifications: Type: TMR, AO
Output Current Range: -60 to 60 mA
Number of Points: 4 bipolar output
Isolated Points: No, commoned return, DC coupled.
When ordering a replacement, verify these parameters against your existing module — two modules sharing the same base number can have different internal configurations. This unit is factory-sealed and tested on a live rack with 48-hour burn-in at 55°C. Printed test report included. 12-month warranty. Ships within 24 hours from Shenzhen.
Compatible Parts — Same System
These modules share the same system family as the 3807. Commonly ordered together for complete rack builds or spare parts kits.
