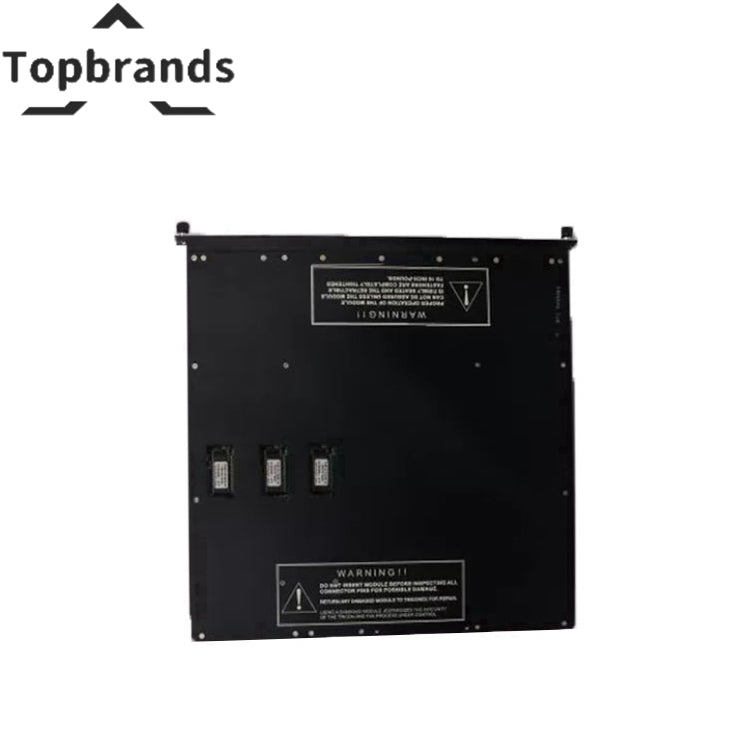

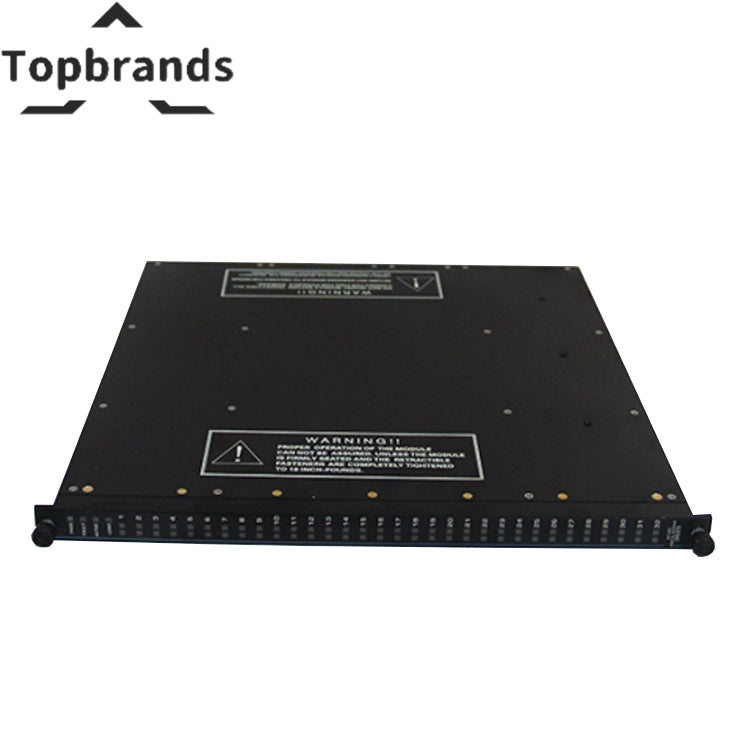

TRICONEX AP3101 Main Processor Module High Quality

Physically in Shenzhen. Not virtual. 10,000+ modules. Ships today.

Handles Triconex. Triconex proprietary design.

Specifications

ESD bag, foam, double-wall carton. Printed test report. DHL/FedEx/UPS 3-5 days. 24-hour handling.

Deployed in refineries on Triconex systems.

Examples

• Specifications for the TRICONEX AP3101 Main Processor Module: Product Type : Main Processor Module Application Processor (SX Processor) : Manufacturer : Motorola Model : MPC860 Bit Depth : 32-bit Clock Speed : 50 MHz Flash PROM : 6 MB (used for SX, IOX, and control application storage, CRC-protected) DRAM : 16 MB (used for SX control application execution, program, and SOE data, with byte parity) NVRAM : 8 KB (used for reserved variables, protected by CRC) Input/Output Processor (IOX Processor) : Manufacturer : Motorola Model : MPC860 Bit Depth : 32-bit Clock Speed : 50 MHz DRAM : 16 MB (used for byte parity check by IOX) Shared Memory : 128 KB (for communication with SX, byte parity) Diagnostic Bus : 2 Mbps HDLC (used to transfer I/O module diagnostic information between MP channels) Logic Power : Nominal Input Voltage : 24 V DC Operational Voltage Range : 24 V DC (–15%/+20%) with 5% AC ripple (+19.
• 2 / +30 V DC) Logic Power Consumption : Maximum 8 W Absolute Maximum Input Voltage : 33 V DC Absolute Maximum Reverse Input Voltage : –0.
• 6 V DC Additional Information : Weight : 1.

No spare = one failure from downtime. Ships within 24 hours.
