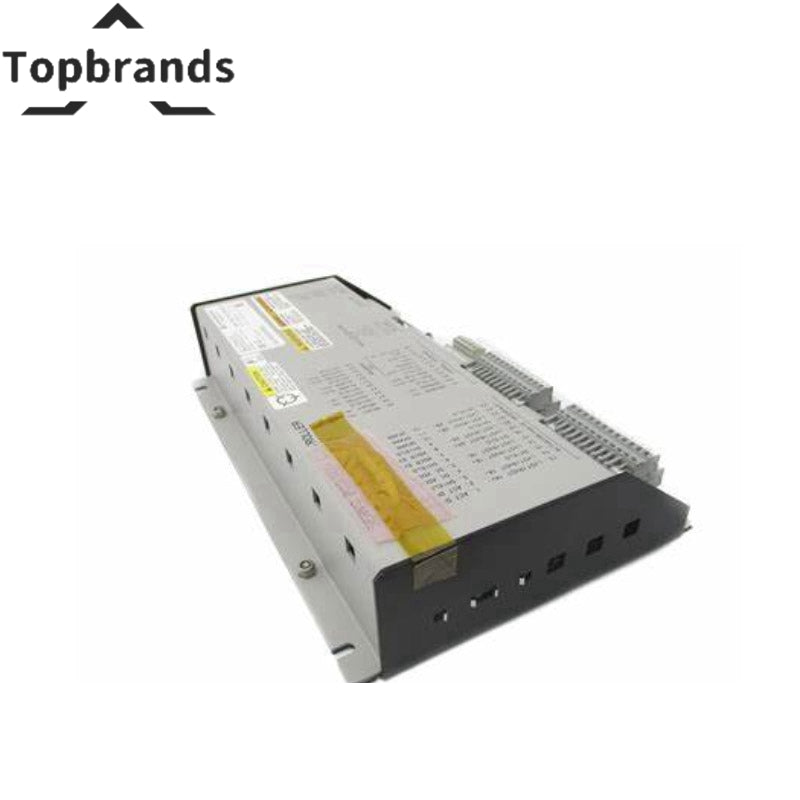

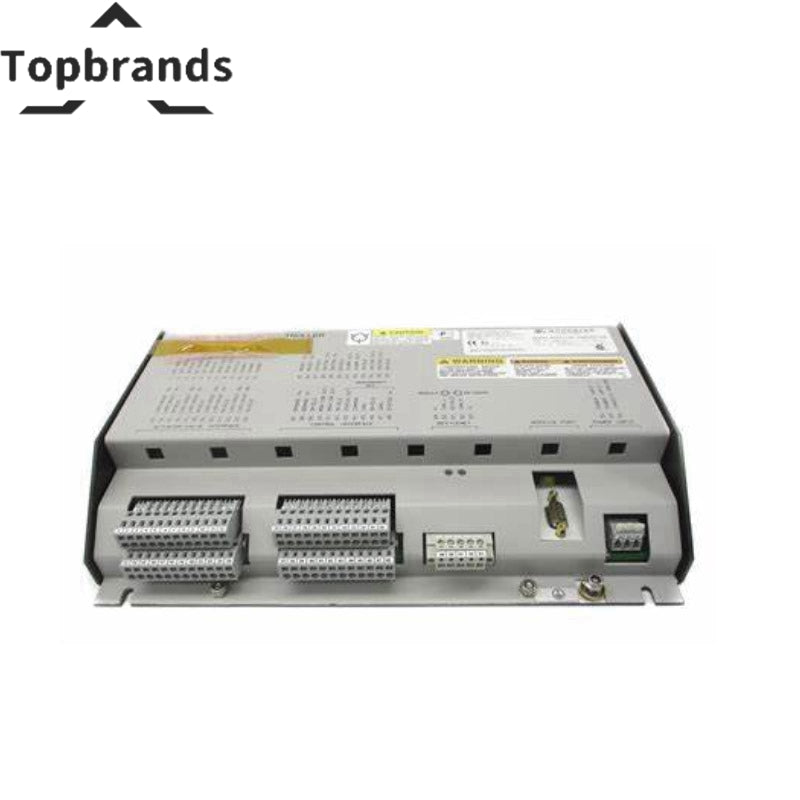

Woodward 8200-226 Servo Position Controller
Need a position controller for Woodward? The 8200-226 handles Manufacturer: Woodward | Nominal Voltage: 24 Vdc | Operating Range: 2-22 mA. Factory-sealed, live-rack tested, 48-hour burn-in. Ships today from Shenzhen. 12-month warranty.
Technical Specifications
| Product Type | Servo Position Controller |
|---|---|
| Model Number | 8200-226 |
| Manufacturer | Woodward |
| Nominal Voltage | 24 Vdc |
| Operating Range | 2-22 mA |
| Power Dissipation | 20 W (typical heat load) |
| Current Range | ±10 to ±250 mA |
| Input Impedance | 200 Ω |
| Resolution | 11 bits |
| Signal Compatibility | Accepts either a DeviceNet or a 4 to 20 mA position demand signal. |
| Valve Compatibility | Controls both proportional and integrating servo valves. |
| Feedback Handling | Processes valve position feedback signals from up to two redundant Alternating Current devices or one Direct Current device. |
| Model / SKU | 8200-226 |
