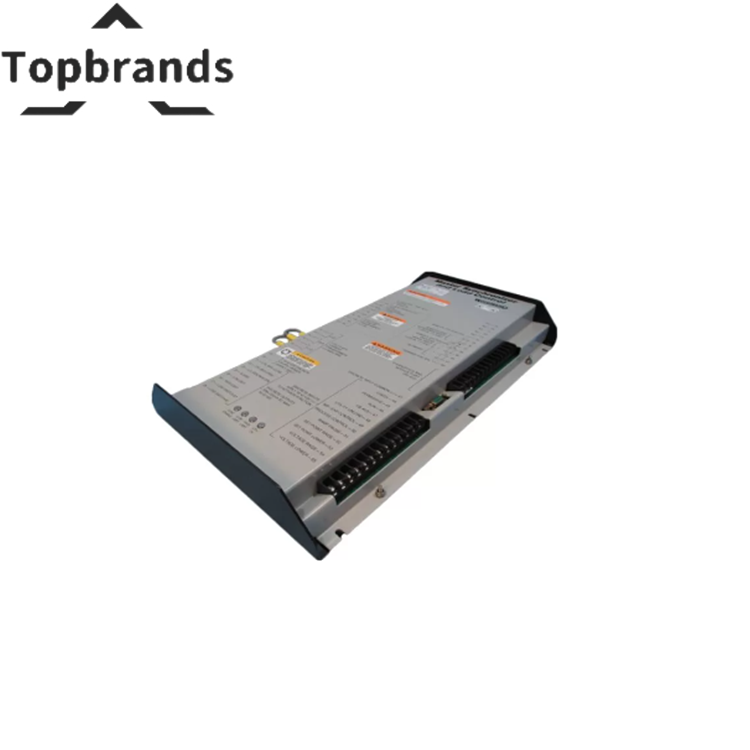

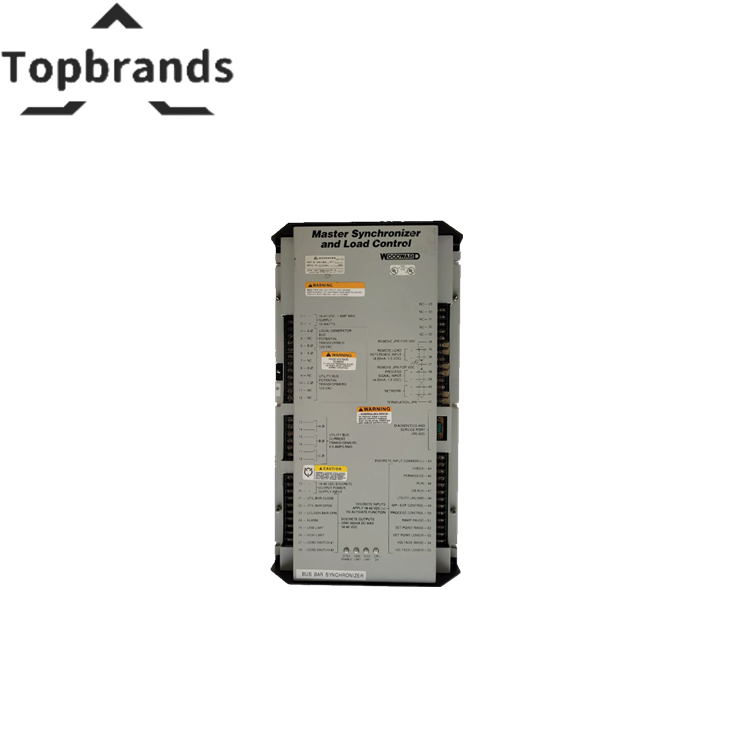

Woodward 9905-795 Digital Synchronizer and Load Control
The Woodward 9905-795 is a digital synchronizer and load control for Woodward platforms. Weight: 6 lbs 14 oz | Input Voltage: 120/240 VAC | Operating Temperature: -40 to 158 °F. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| 9905-795 | is part of the Woodward DSLC (Digital Synchronizer and Load Control) series, designed for controlling alternating current, three-phase industrial generators. It provides advanced synchronization and load control features for industrial applications. |
|---|---|
| Dimensions | H18.14 in x W10.4 in x D2.3 in |
| Weight | 6 lbs 14 oz |
| Input Voltage | 120/240 VAC |
| Operating Temperature | -40 to 158 °F |
| Storage Temperature | -67 to 221 °F |
| Humidity Standard | 95% at 38 °C |
| Speed Bias | +3.0 Vdc |
| Manufacturer | Woodward |
| Model | Wye PT Configuration |
| Multifunctional Device | Includes control sensor, load control module, and synchronizer. |
| Automatic Synchronization | Supports slip frequency or phase matching. |
| Control Sensor | Detects true RMS power levels, enabling bumpless loading/unloading with options for base amount or individual features like import/export and processing. |
| Comparison to 9905-288 | Unlike the 9905-288, the 9905-795 includes dead bus closure capabilities and more efficient data formatting over the Local Operating Network, handling up to 7 variables per message. |
| Model / SKU | 9905-795 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Failure Prevention: Woodward 9905-795
The Woodward 9905-795 Digital Synchronizer and Load Control: Dimensions: H18.14 in x W10.4 in x D2.3 in
Weight: 6 lbs 14 oz
Input Voltage: 120/240 VAC
Operating Temperature: -40 to 158 °F
Storage Temperature: -67 to 221 °F.
Keep one tested spare. Swap during planned maintenance. Ships within 24h.
