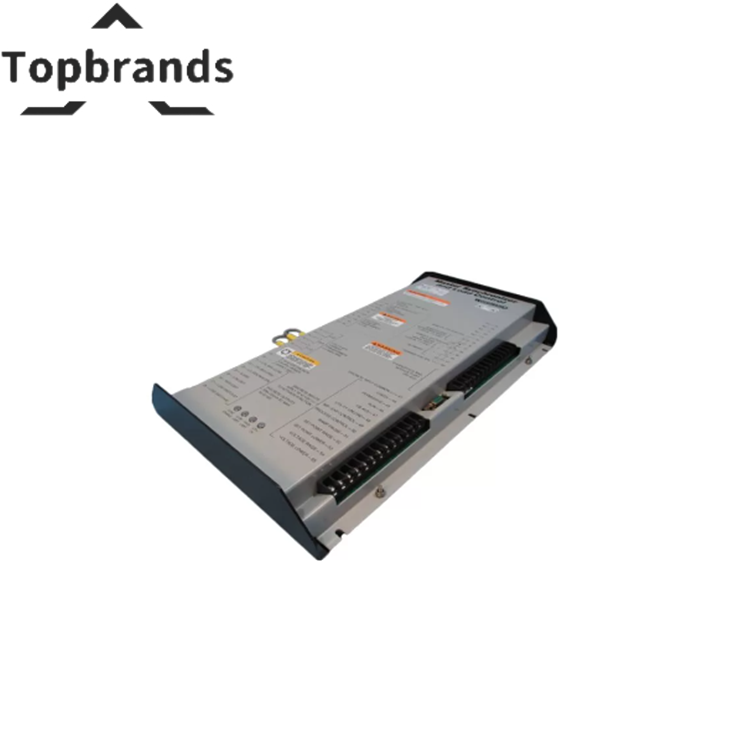

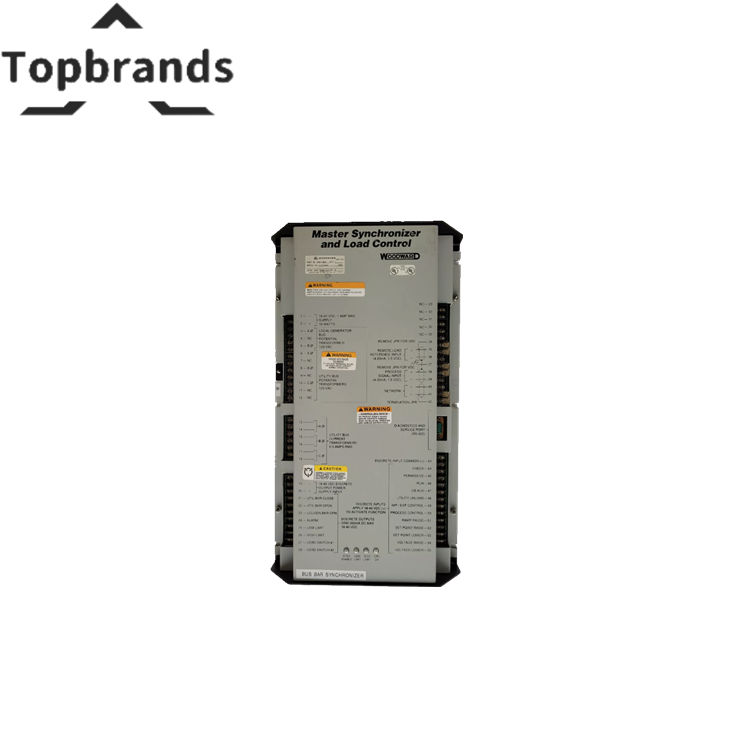

Woodward 9907-005 Load Control Module in Stock

Name: Woodward 9907-005 Load Control Module in Stock
Brand: Woodward
SKU: 9907-005
Availability: InStock

SKU: 9907-005 In Stock

Load Control ModuleWoodward

The Woodward 9907-005 is a load control module for Woodward platforms. Manufacturer: Woodward | Product Type: Master Synchronizer and Load Control (MSLC) | Dimensions: 14 in W x 11 in H x 4 in D. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.

FAQ: Woodward 9907-005

Q: What is it?
A: load control module — Woodward 9907-005 Load Control Module in Stock. Part Number: 9907-005
Product Type: Master Synchronizer and Load Control (MSLC)
Dimensions: 14 in W x 11 in H x 4 in D
Weight: 9.11 lbs
Current Transformer Range: 5 amps.

Q: Delivery?
A: 24h handling, 3-5d worldwide. 12-month warranty.

Technical Specifications

9907-005 is a Master Synchronizer and Load Control Module	developed by Woodward. Known as the Woodward DSLCTM (Digital Synchronizer and Load Control), this module is designed to work in conjunction with generator controls to provide utility synchronization, paralleling, loading, and unloading for a three-phase producing system. It integrates microprocessor-based plant load control to enhance operational efficiency and accuracy.
Part Number	9907-005
Manufacturer	Woodward
Product Type	Master Synchronizer and Load Control (MSLC)
Dimensions	14 in W x 11 in H x 4 in D
Weight	9.11 lbs
Current Transformer Range	5 amps
Accuracy	1% at 25°C
Power Supply Input	18 to 32 Vdc
Power Consumption	14 W
Temperature Range	-40 to +55°C
Network to I/O Channel Voltage	277 Vac
Potential Voltage Range	80-150 Vac
Maximum Stub Length	300 mm
Network Isolation	1000 Vrms (0-60 Hz)
Max Nodes per Bus	64
Country of Manufacture	United States (USA)
Availability	In Stock
Model / SKU	9907-005
