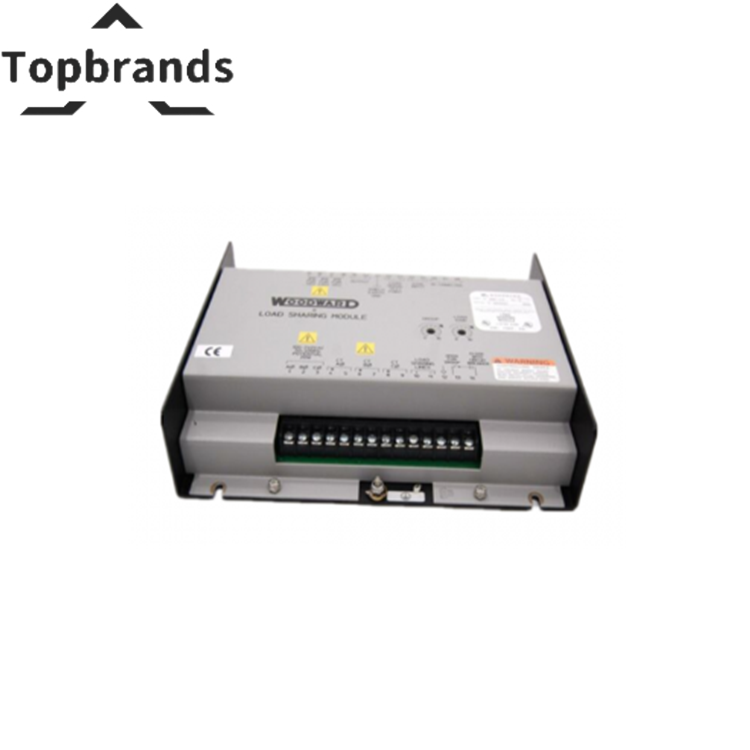

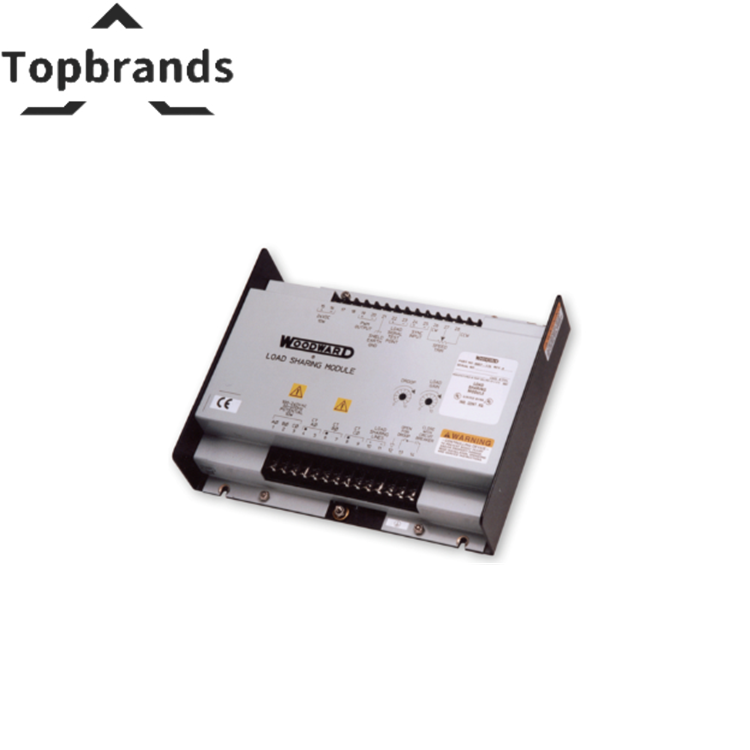

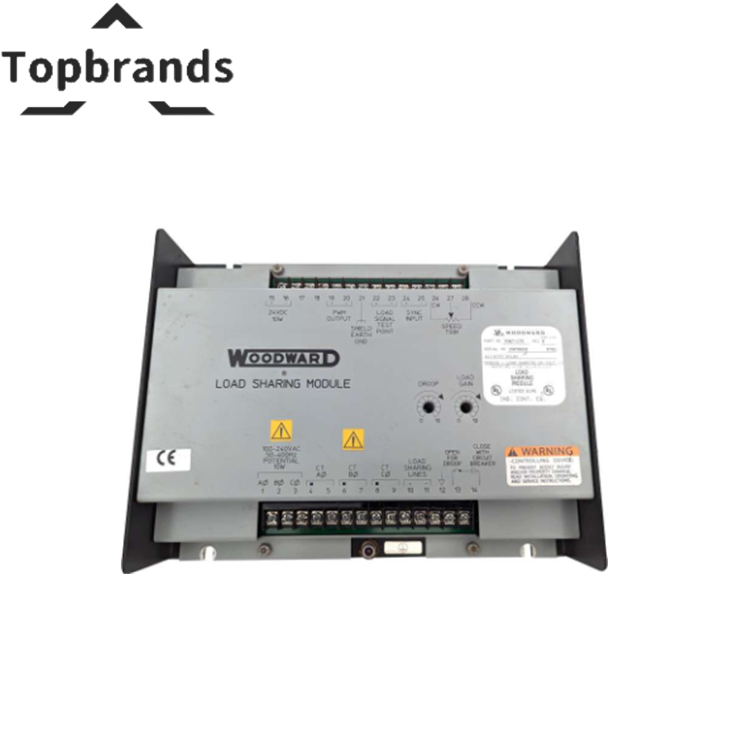

Woodward 9907-252 Load Sharing Module
The Woodward 9907-252 is a load sharing module for Woodward platforms. Humidity: Tested at 95%, not condensing | Load Sharing Input: 0-3 Vdc | Manufacturer: Woodward. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| Dimensions | 273.6 mm x 59.2 mm x 214.1 mm |
|---|---|
| Droop | Provides speed reduction from no-load to full-load conditions. |
| Humidity | Tested at 95%, not condensing |
| Load Sharing Input | 0-3 Vdc |
| Manufacturer | Woodward |
| Power Supply | 18-32 Vdc |
| Sync Input | Compatible with Woodward SPM-A synchronizer |
| 9907-252 Load Sharing Module | is available from our inventory at AX Control Inc. This unit operates with a power supply nominally at 24 Vdc but can range from 18 to 32 Vdc. It features both three-phase PT (Potential Transformer) and CT (Current Transformer) inputs: |
| PT Inputs | 95 to 130 V/AC (line to line) |
| CT Inputs | 3 to 7 A Rms (full load) |
| Load Gain | Adjusts the load on individual generators when paralleled. |
| Operating Temperature Range | -40°C to +70°C (-40°F to +158°F) |
| Environmental Suitability | Best suited for stable environments |
| Model / SKU | 9907-252 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Woodward 9907-252 Overview
load sharing module for Woodward platforms.
Specifications:
Dimensions: 273.6 mm x 59.2 mm x 214.1 mm
Droop: Provides speed reduction from no-load to full-load conditions.
Humidity: Tested at 95%, not condensing
Load Sharing Input: 0-3 Vdc
Power Supply: 18-32 Vdc
Factory-sealed. Live-rack tested, 48h burn-in. Printed test report. Worldwide shipping within 24h. 12-month warranty.
Compatible Parts — Same System
These modules share the same system family as the 9907-252. Commonly ordered together for complete rack builds or spare parts kits.
